Description
With 10GbE SFP+ and 2.5GbE network ports, the TS-832PXU delivers high network bandwidth to streamline team collaboration and file access. A PCIe Gen 2 ×2 slot allows for installing a QNAP expansion card to add network connectivity, SSD caching capabilities, or wireless connectivity. The TS-832PXU supports file backup and synchronization, secure snapshot protection, and Google G Suite and Microsoft 365 enterprise account backup services, while providing instant recovery whenever needed. Coupled with the support for cloud gateways, building a hybrid cloud storage solution has never been easier.
-
Higher performance x faster throughput
The TS-832PXU is powered by an Annapurna Labs Alpine AL-324 ARM Cortex -A57 quad-core 1.7 GHz processor with 4GB DDR4 RAM (expandable to 16GB) and SATA 6Gb/s drives to deliver higher performance. With two 10GbE SFP+ and two 2.5GbE network ports, the TS-832PXU provides incredible bandwidth to fulfil high-speed file access, backup/restoration and media transfer, while also allowing the flexible allocation of network resources for individual applications and services. -
Upgrade your network to increase team efficiency
QNAP provides various high-speed network solutions at attainable price points. The QSW network switches provide managed and unmanaged 10GbE and 2.5GbE options for building high-speed networks. QNAP also offers 10GbE / 5GbE / 2.5GbE network expansion cards and a USB to 5GbE adapter for Windows / Linux devices, allowing all of your workstations to take advantage of high-speed networks. -
Boost NAS performance with SSDs
As SSDs become more affordable, using SSDs on NAS can improve performance without requiring a heavy investment. The TS-832PXU supports SSD cache technology, Qtier auto-tiering storage, and SSD over-provisioning, helping you to balance storage performance, storage allocation, and IT expenses. -
Multi-point file backup, access and sync
HBS (Hybrid Backup Sync) consolidates data backup, recovery, and data synchronization. With high-speed 10GbE connectivity, you can easily back up or sync data to another QNAP NAS, remote server or cloud storage to build a reliable disaster recovery solution. Qsync turns the TS-832PXU into a secure, high-capacity data center for file synchronization. Any file uploaded to the TS-832PXU will be made available for all linked devices, such as computers, laptops, and mobile devices. You can also sync shared folders or create team folders to enhance team collaboration. -
Easily find and automatically organize files and photos
The TS-832PXU provides greater convenience in file management. You can quickly find files using Qsirch, organize photos using QuMagie and auto-archive them with Qfiling. -
Secure Google G Suite and Microsoft 365 backup
The convenience of Software as a Service (SaaS) solutions such as Google G Suite and Microsoft 365 has led to its adoption by many businesses and organizations. However, many users fail to protect this cloud data against data loss, data recovery limitations, and human error. The TS-832PXU includes QNAP Boxafe, allowing you to back up files, emails, calendars and contacts from Google G Suite and Microsoft 365 to provide an extra layer of data protection for business cloud data. -
Low Latency Access to Cloud Data with Cloud Storage Gateways
By deploying cloud storage gateways and enabling local caching on the TS-832PXU, you can seamlessly use the cloud for storage, backup, and data recovery with low-latency access, providing an innovative hybrid cloud experience.
Specifications
Summary
- Product Description

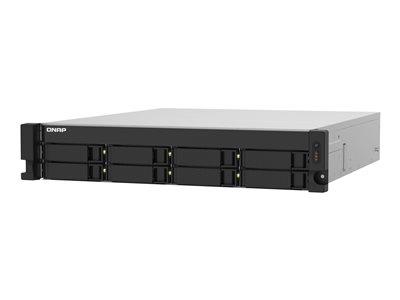

- QNAP TS-832PXU - NAS server
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet
- Enclosure Type
- Rack-mountable - 2U
- Installed Devices / Modules Qty
- 0 (installed) / 8 (max)
- Dimensions (WxDxH)
- 48.2 cm x 53.4 cm x 8.9 cm
- Weight
- 10.94 kg ()
- Processor
- 1 x Annapurna Labs Alpine AL-324 1.7 GHz (Quad-Core)
- Storage Controller
- RAID SATA 6Gb/s RAID RAID 0, 1, 5, 6, 10, 50, JBOD, 60
- Networking
- 100Mb LAN, 1GbE, 10GbE, 2.5GbE
- IP Cameras Supported
- 16
- RAM
- 4 GB
- Power
- AC 120/230 V
- Power Redundancy
- Yes
- Storage Operating System
- QNAP QTS 4.4.3
- System Requirements
- SunSoft Solaris 10 or higher, Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later
Detailed Specification
General
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet / 2.5 Gigabit Ethernet / 10 Gigabit Ethernet
- Enclosure Type
- Rack-mountable - 2U
- Total Storage Capacity
- 0 GB
- Installed Devices / Modules Qty
- 0 (installed) / 8 (max)
- Width
- 48.2 cm
- Depth
- 53.4 cm
- Height
- 8.9 cm
- Weight
- 10.94 kg ()
- Built-in Devices
- Led panel
Processor / Memory
- Processors Installed
- 1 x Annapurna Labs Alpine AL-324 1.7 GHz
- Number of Cores
- Quad-Core
- Max Supported Qty
- 1
- RAM
- 4 GB (installed) / 16 GB (supported) - DDR4
- Flash Memory Installed
- 512 MB
Storage Controller
- Type
- RAID
- Interface Type
- SATA 6Gb/s
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Networking
- Data Link Protocol
- 100Mb LAN, 1GbE, 10GbE, 2.5GbE
- Network / Transport Protocol
- TCP/IP, PPTP, L2TP, IPSec, iSCSI, SMTP, FTP, DHCP, SMB, DDNS, NFS, SFTP, RTSP, HTTP, HTTPs, IPv4, IPv6
- Remote Management Protocol
- SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH, SFTP, SMTP
- Network Services Compatibility
- Microsoft Active Directory (AD), File Level Security (ACLs), DHCP, DDNS, Microsoft CIFS, FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV), SFTP, Network File System v3 (NFS v3), Network File System v4 (NFS v4)
- Features
- NAT support, hardware encryption, load balancing, LDAP support, wake on LAN (WOL), Syslog support, manageable, E-mail alert, firmware upgradable, Spanning Tree Protocol (STP) support, web server, backup server, download client, file sharing, anti-malware protection, event log, Access Control List (ACL) support, Jumbo Frames support, DHCP server, FTP server, SMS alert, BitTorrent Client, UPnP Media Server, Network Access Protection (NAP), reset button, bandwidth control, surveillance station, DLNA Media Server, Apple Time Machine compatible, DHCP client, static routing, cloud backup, VPN Server, ONVIF support, Dropbox support, Wi-Fi USB dongle support, Link Aggregation, Photo album server, Google Drive support, scheduler, failover protection, VPN client, push notification, Amazon Cloud Drive support, Yandex Disk support, Microsoft OneDrive support, Chromecast support, hubiC support, OpenStack Swift-compatible, port trunking, IFTTT agent, iSCSI LUN clone/snapshot, Microsoft Azure support, Amazon S3 support, Amazon Glacier suport, HiDrive support, FXP support, RTRR server, RTRR client, hybrid backup sync, Qfiling, Qsirch, Qcontactz, Qfinder Pro, Q'center (NAS CMS), Rsync compatible, snapshot (folder and LUN), IPv4 and IPv6 dual stack, PPTP server, OpenVPN client, OpenVPN server, Alibaba Cloud OSS support, Backblaze B2 support, VJBOD Cloud, myQNAPcloud, Qsync, QuMagie, Qmiix agent
- Encryption Algorithm
- SSL, TLS 1.0, FIPS 140-2, 256-bit AES, TLS 1.1, TLS 1.2
- Compliant Standards
- UPnP
Security DVR
- IP Cameras Supported
- 16
Expansion / Connectivity
- Expansion Bays
- 8 (total) / 8 (free) x hot-swap - 2.5" / 3.5"
- Expansion Slots
- 1 (total) / 1 (free) x PCI Express 2.0 x2 , 1 (total) / 0 (free) x DIMM 288-pin
- Interfaces
- 2 x 2.5 Gigabit Ethernet - RJ-45 , 4 x USB 3.2 Gen 1 - Type A , 2 x Ethernet 10Gb - SFP+
Miscellaneous
- Cables Included
- 1 x network cable
- Features
- Audible alarm, wake on LAN, built-in 2 cooling fans, Online RAID Level Migration (RLM), scheduled power on/off, S.M.A.R.T. support, dual boot
- Compliant Standards
- FIPS 140-2
- Included Accessories
- 24 x flat head screws (for 2.5" HDD), 32 x flat head screws (for 3.5" HDD), 2 x power cables
Power
- Power Device
- Internal power supply
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Power Redundancy Scheme
- 1+1
- Voltage Required
- AC 120/230 V
- Power Provided
- 250 Watt
Software / System Requirements
- Storage Operating System
- QNAP QTS 4.4.3
- OS Required
- SunSoft Solaris 10 or higher, Microsoft Windows Server 2008 R2, IBM AIX 7, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Ubuntu 14.04, Red Hat Enterprise Linux 6.6, Microsoft Windows 7 / 8 / 10, Microsoft Windows Server 2016, Apple MacOS X 10.10 or later, CentOS 7.0, Microsoft Windows Server 2019, SuSE Linux 12 or later
Dimensions & Weight (Shipping)
- Shipping Weight
- 16.87 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Sound Emission
- 30.6 dBA
