Description
With its powerful AMD Ryzen V1000 series V1500B Quad-core processor, the TS-1273AU-RP is capable of boosting virtual machine performance with up to 4 cores/8 threads at 2.2GHz. The TS-1273AU-RP includes two 2.5GbE ports and two PCIe Gen 3 slots, providing you with fast network connectivity and the ability to add extra functionality and additional application potential. The TS-1273AU-RP also features a redundant power supply to ensure maximum system uptime. Cutting-edge hardware integrated with comprehensive software solutions makes the TS-1273AU-RP the preeminent choice to tackle resource-demanding applications and tasks.
-
Absolute performance with AMD Ryzen and up to 32GB RAM
Powered by a 4-core/8-thread AMD Ryzen V1500B 2.2GHz processor with AES-NI encryption acceleration and up to 32GB DDR4 RAM, the rackmount TS-1273AU-RP delivers aggressive yet power-smart performance to drive resource-demanding business applications such as VDI, R&D, private cloud, and server virtualization. -
Block-based iSCSI LUN: Ideal choice for virtualization storage
The TS-1273AU-RP supports block-based iSCSI LUN and is compatible for VMware, Citrix, Microsoft Hyper-V, and Windows Server 2019 virtualization environments to provide a high-performance and affordable storage solution. The TS-1273AU-RP also supports VMware VAAI and Microsoft ODX to increase performance by offloading server loading for ESXi server and Hyper-V respectively, and supporting QNAP vSphere Client plug-in with enhanced operational efficiency and management in virtualization applications. -
Optimized performance for VMware Virtualization with iSER
The iSCSI Extensions for RDMA (iSER) protocol boosts the data transfer performance of VMware ESXi storage and reduces the CPU load of the ESXi server. iSER support can be added to the TS-1273AU-RP by installing a QNAP QXG-10G2SF-CX4 10GbE PCIe card, which uses the Mellanox ConnectX-4 controller. iSER can provide a significant increase in performance, providing an essential tool to optimize demanding virtualization applications. -
All-in-one server to host virtual machines and containers
Regardless of your virtualization needs, you can count on Virtualization Station and Container Station for complete virtualization support. Use the Network & Virtual Switch app to allocate adequate physical network resources to virtual machines, containers, and the TS-1273AU-RP to simplify network deployment. -
Abundant I/O capabilities with PCIe expansion
The TS-1273AU-RP includes two PCIe Gen 3 x4 slots, allowing you to add additional functionality with compatible PCIe cards. By using a suitable adapter, you can consolidate both slots into a single PCIe Gen 3 x8 slot. -
GPU-accelerated computing
Graphics cards are optimized for graphical calculations and transformations, but require significantly more power than other hardware. The TS-1273AU-RP supports entry-level low-profile NVIDIA GeForce graphics cards (such as the GT 1030 or GT 1050) that do not require additional power. Installing a graphics card can boost performance of applications such as video editing, 4K video transcoding, imaging processing in QTS and the performance of virtual machines via GPU passthrough.
Specifications
Summary
- Product Description

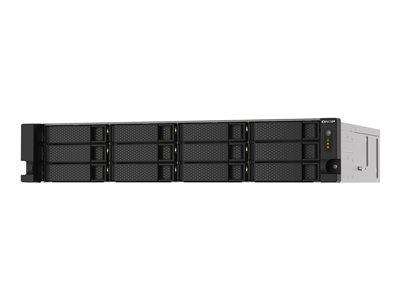

- QNAP TS-1273AU-RP - NAS server
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet / 2.5 Gigabit Ethernet
- Enclosure Type
- Rack-mountable - 2U
- Installed Devices / Modules Qty
- 0 (installed) / 12 (max)
- Dimensions (WxDxH)
- 43.2 cm x 37.2 cm x 8.9 cm
- Weight
- 9.69 kg ()
- Processor
- 1 x AMD Ryzen Embedded V1500B 2.2 GHz (Quad-Core)
- Storage Controller
- RAID SATA 6Gb/s RAID 0, 1, 5, 6, 10, JBOD, 5 hot spare, 6 hot spare, 10 hot spare
- Networking
- 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
- RAM
- 8 GB
- Power
- AC 120/230 V (50/60 Hz)
- Power Redundancy
- Yes
- Storage Operating System
- QNAP QTS 4.4.2
- System Requirements
- UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Apple MacOS X 10.7 or later, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10
Detailed Specification
General
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet / 2.5 Gigabit Ethernet
- Enclosure Type
- Rack-mountable - 2U
- Total Storage Capacity
- 0 GB
- Installed Devices / Modules Qty
- 0 (installed) / 12 (max)
- Width
- 43.2 cm
- Depth
- 37.2 cm
- Height
- 8.9 cm
- Weight
- 9.69 kg ()
Processor / Memory
- Processors Installed
- 1 x AMD Ryzen Embedded V1500B 2.2 GHz
- Number of Cores
- Quad-Core
- Max Supported Qty
- 1
- RAM
- 8 GB (installed) / 32 GB (supported) - DDR4
- Flash Memory Installed
- 5 GB
Storage Controller
- Type
- RAID
- Interface Type
- SATA 6Gb/s
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD, RAID 5 hot spare, RAID 6 hot spare, RAID 10 hot spare
Networking
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE, 2.5GbE
- Network / Transport Protocol
- TCP/IP, PPTP, UDP/IP, iSCSI, SMTP, FTP, DHCP, Bonjour, SMB, DDNS
- Remote Management Protocol
- SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH
- Network Services Compatibility
- Microsoft Active Directory (AD), Apple Bonjour Protocol, DHCP, DDNS, Microsoft CIFS, Network File System (NFS), FTP, FTPS, Server Message Block (SMB), Apple File Protocol (AFP), HTTP, HTTPS, Web-based Distributed Authoring and Versioning (WebDAV)
- Features
- NAT support, trunking, LDAP support, wake on LAN (WOL), Syslog support, E-mail alert, print server, IPv6 support, Spanning Tree Protocol (STP) support, download client, file sharing, Trivial File Transfer Protocol (TFTP) support, SSH support, iTunes server, Jumbo Frames support, DHCP server, FTP server, SMS alert, BitTorrent Client, UPnP Media Server, bandwidth control, surveillance station, teaming support, DLNA Media Server, Apple Time Machine compatible, DHCP client, e-mail notification, cloud backup, VPN Server, Apple AirPlay, event notification, push notification, Chromecast support
- Encryption Algorithm
- SSL, FIPS 140-2, 256-bit AES, AES-NI
- Compliant Standards
- UPnP
Expansion / Connectivity
- Expansion Bays
- 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5"
- Expansion Slots
- 2 (total) / 1 (free) x DIMM 288-pin , 2 (total) / 2 (free) x PCI Express 3.0 x4
- Interfaces
- 2 x 2.5 Gigabit Ethernet - RJ-45 , 1 x USB 3.2 Gen 1 - Type A , 2 x USB 3.2 Gen 2 - Type C , 1 x USB 3.2 Gen 2 - Type A
Miscellaneous
- Cables Included
- 1 x network cable
- Features
- Audible alarm, wake on LAN
- Included Accessories
- 36 x flat head screws (for 2.5" HDD), 48 x flat head screws (for 3.5" HDD), 2 x power cables
Power
- Power Device
- Internal power supply
- Installed Qty
- 2
- Max Supported Qty
- 2
- Power Redundancy
- Yes
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 78.92 Watt
- Power Consumption Stand by
- 43.67 Watt
- Power Provided
- 300 Watt
Software / System Requirements
- Storage Operating System
- QNAP QTS 4.4.2
- OS Required
- UNIX, Linux, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Apple MacOS X 10.7 or later, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows 7 / 8 / 10
Dimensions & Weight (Shipping)
- Shipping Weight
- 14.62 kg
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
