Description
PM43 mid-range industrial label printers are ready to perform, designed to maximize your uptime. Count on PM43 to deliver quick deployment and proven reliability. Ideal for a wide range of applications within the distribution center, warehouse and manufacturing environments.
-
Ready

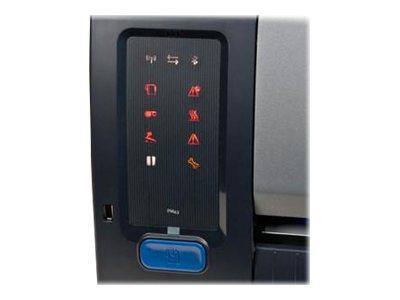

PM43 is ready to deliver maximum uptime. Available with either a tamper-proof color touch-screen in 10 languages or a universal icon interface. Reduce your total workforce training and device support needs with immediate notifications via the printer and the elimination of reconfiguration due to UI tampering. -
Reliable
As the 3rd generation of Intermec industrial printers, the rugged PM43 incorporates features that increase uptime and reduce maintenance costs. Strong all-metal construction is perfect for harsh industrial environments and the metal media door with innovative latch system ensures media is protected. -
Perform
PM43 is ready to perform. With the print speed of 12ips, you'll gain a clear productivity advantage. PM43 helps to reduce labeling errors and increase process efficiencies. Printer stand-alone applications, developed through the embedded programming language, directly control other devices such as scanners, scales, keyboards and other peripherals helping you decrease infrastructure costs and complexity.
Specifications
Summary
- Product Description
- Honeywell PM43 - label printer - B/W - direct thermal / thermal transfer
- Printer Type
- Label printer - direct thermal / thermal transfer - B/W
- Weight
- 15.8 kg
- Localisation
- Europe
- Max Media Size
- Roll (11.4 cm)
- Min Media Size (Custom)
- 19.1 mm
- Max Media Size (Custom)
- 114.3 mm
- Print Speed
- Up to 300 mm/sec - max speed
- Max Resolution (B&W)
- 203 dpi
- Interface
- USB, LAN, serial
- RAM Installed (Max)
- 128 MB SDRAM
- Flash Memory Installed (Max)
- 128 MB
- Language Simulation
- ZPL, Intermec Printer Language (IPL), DSim (Datamax Interpreter), ZSim, Extensible Mark-up Language (XML), DPL
- Barcodes
- EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, HIBCC, LOGMARS, MicroPDF417, Codabar, Code 128, Code 11, Code 16K, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Plessey, AIAG, Standard 2 of 5, Grid Matrix Code
- Media Type
- Labels, linerless labels, fanfold paper, tag stock, tickets
- Networking
- Print server - Ethernet, Fast Ethernet
- Printer Features
- RFID ready, USB host
- System Requirements
- Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits)
- Dimensions (WxDxH)
- 28.4 cm x 48.4 cm x 29.5 cm
Detailed Specification
General
- Printer Type
- Label printer - direct thermal / thermal transfer - monochrome
- Localisation
- Europe
Printer
- Print Speed
- Up to 300 mm/sec - max speed - 203 dpi
- Built-in Devices
- Touch screen
- Connectivity Technology
- Wired
- Interface
- USB, LAN, serial
- Max Resolution (B&W)
- 203 dpi
- Language Simulation
- ZPL, Intermec Printer Language (IPL), DSim (Datamax Interpreter), ZSim, Extensible Mark-up Language (XML), DPL
- Barcodes
- EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, UCC/EAN-128, Code 49, ISBT 128, GS1 DataBar, QR code, MaxiCode, Aztec code, HIBCC, LOGMARS, MicroPDF417, Codabar, Code 128, Code 11, Code 16K, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Plessey, AIAG, Standard 2 of 5, Grid Matrix Code
- Printer Features
- RFID ready, USB host
RAM
- RAM Installed (Max)
- 128 MB
- Technology / Form Factor
- SDRAM
Flash Memory
- Flash Memory
- 128 MB
Media Handling
- Media Type
- Labels, linerless labels, fanfold paper, tag stock, tickets
- Max Media Size
- Roll (11.4 cm)
- Min Media Size (Custom)
- 19.1 mm
- Max Media Size (Custom)
- 114.3 mm
- Media Sizes
- Roll (1.9 - 11.4 cm)
- Max Printing Width
- 108 mm
- Media Weight
- 57.6 g/m² - 250 g/m²
- Roll Maximum Outer Diameter
- 213 mm
- Roll Core Diameter
- 76.2 mm, 38.1 mm
- Media Feeders
- 1 x manual - 1 roll - Roll (11.4 cm)
Networking
- Networking
- Print server
- Data Link Protocol
- Ethernet, Fast Ethernet
- Network / Transport Protocol
- TCP/IP, UDP/IP, ICMP/IP, LPR/LPD, SMTP, FTP, BOOTP, DHCP
- Remote Management Protocol
- SNMP 1, SNMP 3, SNMP 2c, HTTP
Expansion / Connectivity
- Connections
- 1 x USB 2.0 - 4 pin USB Type B , 1 x RS-232 - 9 pin D-Sub (DB-9) , 1 x LAN - RJ-45 , 1 x USB - 4 pin USB Type A
Miscellaneous
- Included Accessories
- Fixed media hanger
- Compliant Standards
- FCC Class A certified, UL, C-Tick, cUL, EN55022, CCC, RoHS
Power
- Power Device
- Power supply - internal
- Frequency Required
- 50/60 Hz
- Power Consumption Operational
- 300 Watt
- Power Consumption Stand by / Sleep
- 9 Watt
Software / System Requirements
- Software Included
- Drivers & Utilities
- OS Required
- Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Microsoft Windows Server 2008 (32/64-bits), Microsoft Windows Server 2003 (32/64-bits)
Environmental Standards
- ENERGY STAR
- Yes
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 20 - 80% (non-condensing)
Dimensions & Weight
- Width
- 28.4 cm
- Depth
- 48.4 cm
- Height
- 29.5 cm
- Weight
- 15.8 kg
