Description
Reinvent docking and boost productivity with our most versatile Thunderbolt dock, the small, sophisticated HP Thunderbolt Dock G2. Designed for workspace flexibility and network manageability, it delivers USB-C device connectivity and optional integrated audio.
-
Command your workspace from a single Thunderbolt 3 (USB-C) connection
Connect the included cable to your notebook to access a wired network, data, video, and charging with a dock that supports both HP and non-HP Thunderbolt and USB-C notebooks. -
Reset your perception
Reclaim your work area with this space-saving centerpiece that helps create a clean desk. Its elegant, black, rounded design with smooth accents changes everything you thought you knew about docks. -
Manage your enterprise fleet like a boss
Help IT easily secure and remotely manage a wide range of HP notebooks and the dock with advanced network manageability features built into the dock, including WoL and MAC address pass-through in all power states and PXE Boot.
Specifications
Summary
- Product Description
- HP Thunderbolt Dock G2 - docking station - VGA, DP, 2 x DP - 10Mb LAN
- Product Type
- Docking station
- Video Interfaces
- VGA, DP, 2 x DP
- Dimensions (WxDxH)
- 9.8 cm x 9.8 cm x 6.9 cm
- Weight
- 800 g
- Colour
- Black
- Localisation
- English / United Kingdom
- Networking
- Ethernet
- Power
- Power adapter 230 Watt
- Manufacturer Warranty
- 1-year warranty
- Designed For
- ZBook 14u G5, 14u G6, 15 G3, 15 G4, 15 G5, 15 G6, 15u G5, 15u G6, 15v G5, 17 G3, 17 G4, 17 G5, 17 G6, Create G7, Studio G3, Studio G4, Studio G5, Studio G7, Studio x360 G5; ZBook Fury 15 G7, 17 G7; ZBook x2 G4
Detailed Specification
General
- Product Type
- Docking station
- Width
- 9.8 cm
- Depth
- 9.8 cm
- Height
- 6.9 cm
- Weight
- 800 g
- Enclosure Colour
- Black
- Localisation
- English / United Kingdom
Networking
- Data Link Protocol
- Ethernet
Expansion / Connectivity
- Interfaces
- 3 x SuperSpeed USB 3.0 - 9 pin USB Type A , 1 x USB-C , 1 x headphone/microphone combo jack - mini-phone 3.5 mm , 1 x display / video / USB - Thunderbolt , 1 x network - Ethernet - RJ-45 , 1 x display / video - DisplayPort - 24 pin USB-C , 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) , 2 x audio / video - DisplayPort - 20 pin DisplayPort
Miscellaneous
- Cables Included

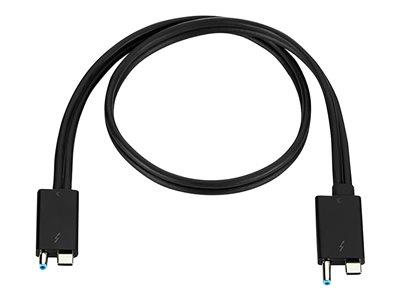

- 1 x USB-C cable - 70 cm
- Features
- Security lock slot (cable lock sold separately), charging via USB, LED indicator
- Security Slot Type
- Kensington security slot
Power
- Power Device
- Power adapter
- Power Provided
- 230 Watt
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 35 °C
Compatibility Information
- Designed For
- HP Elite x2 G8 , HP EliteBook 840 Aero G8 Notebook, 840 G6 Notebook, 850 G6 Notebook , HP ZBook 14u G5 Mobile Workstation, 14u G6 Mobile Workstation, 15 G3 Mobile Workstation, 15 G4 Mobile Workstation, 15 G5 Mobile Workstation, 15 G6 Mobile Workstation, 15u G5 Mobile Workstation, 15u G6 Mobile Workstation, 15v G5 Mobile Workstation, 17 G3 Mobile Workstation, 17 G4 Mobile Workstation, 17 G5 Mobile Workstation, 17 G6 Mobile Workstation, Create G7 Notebook, Power G7 Mobile Workstation, Power G9 Mobile Workstation, Studio G3 Mobile Workstation, Studio G4, Studio G4 Mobile Workstation, Studio G5 Mobile Workstation, Studio G7 Mobile Workstation, Studio G8 Mobile Workstation, Studio x360 G5 Mobile Workstation , HP ZBook Fury 15 G7 Mobile Workstation, 15 G8 Mobile Workstation, 16 G9 Mobile Workstation, 17 G7 Mobile Workstation, 17 G8 Mobile Workstation , HP ZBook x2 G4 Detachable Workstation
