Description

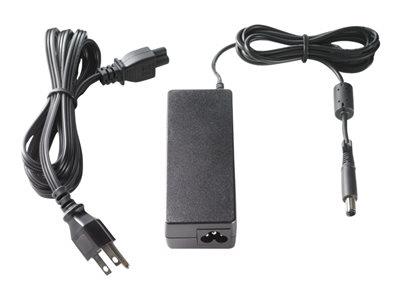

Provide optimal power and help offset power fluctuations to your HP notebook with a HP 90W Smart AC Adapter. Now available with a new right-angled (90°) connector that reduces cable stress and an optional 4.5mm to 7.4mm conversion dongle. As a replacement or back-up adapter, be prepared with the right connection.
-
Controlled and efficient flow
Operate with confidence with optimal performance using smart-pin technology and reduce the risk of power surges, while drawing only minimal power as needed. -
Connection for today and yesterday
Connection versatility with a specially designed dongle allowing for simple conversion from the new standard 4.5mm connector to HP predecessor notebooks with 7.4mm connectors. -
The perfect right turn
Tight access made convenient – the new right-angled (90°) 4.5mm connector allows for connecting in limited spaces and reduces cord bending providing better cable management and longevity.
Specifications
Summary
- Product Description
- HP Smart AC Adapter - power adapter - 90 Watt
- Device Type
- Power adapter - external
- Weight
- 370 g
- Localisation
- English / United Kingdom
- Output Voltage
- 19 V
- Power Capacity
- 90 Watt
- Included Accessories
- 4.5mm to 7.4mm power DC dongle
- Dimensions (WxDxH)
- 12.7 cm x 5 cm x 2.9 cm
- Designed For
- HP 22, 24, 34X G5; Chromebox Enterprise G3, G2, G3; EliteBook 735 G5, 745 G5, 755 G5, 830 G5, 840 G5, 840r G4, 850 G5; EliteBook x360; ENVY 14, 17; ENVY x360; Pavilion 15; ProBook 445 G6, 445r G6, 455 G6, 455r G6, 640 G5, 64X G3, 64X G4, 650 G4, 650 G5; Spectre x360; Stream Pro 11 G4; ZBook 15u G4
Detailed Specification
General
- Device Type
- Power adapter - external
- Localisation
- English / United Kingdom
Power Device
- Output Voltage
- 19 V
- Power Capacity
- 90 Watt
Miscellaneous
- Included Accessories
- 4.5mm to 7.4mm power DC dongle
- Cables Included
- Power cable
- Features
- Over voltage protection
- Compliant Standards
- CSA, UL, C-Tick, BSMI, GOST, cUL, GS, NOM, SABS, CCC, EMC, PSB, SII, PSE Mark, S Mark, KC, ISC
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 20 - 80%
Dimensions & Weight
- Width
- 12.7 cm
- Depth
- 5 cm
- Height
- 2.9 cm
- Weight
- 370 g
Dimensions & Weight (Shipping)
- Shipping Weight
- 0.7 kg
Compatibility Information
- Designed For
- HP 22-df0008na, 22-df0017nf, 22-df0034na, 22-df0138nf, 24-df0000ns, 24-df0005nk, 24-df0006nk, 24-df0007nn, 24-df0008nb, 24-df0008nn, 24-df0010nb, 24-df0014na, 24-df0014nb, 24-df0014ns, 24-df0015na, 24-df0016nl, 24-df0022na, 24-df0032na, 24-df0038d, 24-df0044ns, 24-df0045ns, 24-df0048na, 24-df0053ns, 24-df0067na, 24-df0078ns, 24-df0079ns, 24-df0080ns, 24-df0092nl, 24-df0096ns, 24-df0098nl, 24-df0100nl, 24-df0102no, 24-df0103ns, 24-df0105ns, 24-df0107ng, 24-df0134nf, 24-df0200ng, 24-df0305ng, 24-df0449, 24-df1001ng, 24-df1002nf, 24-df1002ng, 24-df1002nu, 24-df1003ng, 24-df1005ng, 24-df1006ng, 24-df1009ns, 24-df1011ns, 24-df1076, 24-df1201ng, 24-df1270, 24-df1300ng, 24-df1301ng, 24-df1400ng, 340 G5, 348 G5 , HP Chromebox Enterprise G3, G3 , HP ENVY 14-eb0012TX, 14-eb0025no, 14-eb0027no, 14-eb0350nd, 17-cg0000nb, 17-cg0004nn, 17-cg0009nb, 17-cg0012nn, 17-cg0014nb, 17-cg0017nb, 17-cg0019nb, 17-cg0019nr, 17-cg0037nb, 17-cg0038nb, 17-cg0155ng, 17-cg0177ng, 17-cg0305ng, 17-cg0330ng, 17-cg0511sa, 17-cg0645ng, 17-cg1000na, 17-cg1000no, 17-cg1001na, 17-cg1014no, 17-cg1051nm, 17-cg1201nd, 17-cg1300ng, 17-cg1656ng, 17-cg1720nd, 17-cg1767ng, 17-ch0500nz, 17-ch0506nz, 17-ch0700nz, 17-ch0706nz, 17-ch0904nz, 17m-cg1013dx , HP ENVY x360 15-dr1001nz, 15-dr1002nz, 15-dr1009nb, 15-dr1010nb, 15-dr1013nb, 15-es0700nz, 15-es0900nz , HP Pavilion 15-cs3000nc, 15-cs3004nb, 15-cs3007nt, 15-cs3012ne, 15-cs3019nf, 15-cs3020ca, 15-cs3023nb, 15-cs3035nb, 15-cs3036nb, 15-cs3040nu, 15-cs3041ne, 15-cs3041nu, 15-cs3042nu, 15-cs3061nb, 15-cs3105nb, 15-cs3142nb, 15-cs3144nb, 15-cs3147nb, 15-cs3149nb, 15-cs3153cl , HP Spectre x360 15-df1075nr, 15-eb0000nb, 15-eb0002nb, 15-eb0005nl, 15-eb0010ca, 15-eb0032nb, 15-eb0036na, 15-eb0037na, 15-eb0040nb, 15-eb0044nb, 15-eb0048na, 15-eb0050na, 15-eb0097nr, 15-eb0190ng, 15-eb1006nn, 15-eb1008nb, 15-eb1015no, 15-eb1075ng, 15-eb1079ng, 15-eb1110nd, 15-eb1174ng, 15-eb1700nd, 15-eb1706nz, 15-eb1770nd, 15-eb1775ng
