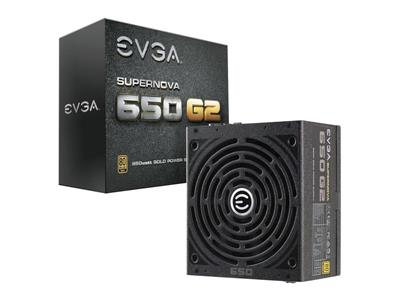

EVGA 650W G2 Fully Modular 80+ PSU

Review this product
Quicklinx: BFPWWS00 Mfr#: 220-G2-0650-Y3
Power Rating: 650Watt
Stock Status: In Stock
More than 50 in stock
£76.12 ex VAT
£91.34 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

The unbeatable performance of the EVGA SuperNOVA G2 power supply line is now available in a 650 watt version. Based on the award winning G2 power supplies, these units feature 80 Plus Gold rated efficiency, and clean, continuous power to every component. The ECO Control Fan system offers fan modes to provide absolutely zero fan noise during low to medium load operations. Backed by an award winning 7 year warranty, and 100% Japanese capacitor design, the EVGA SuperNOVA 650 G2 power supplies offer unbeatable performance at an unbeatable value.

Features
80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC~240VAC) efficiency or higher under typical loads
Highest quality Japanese brand capacitors ensure long-term reliability
Fully Modular to reduce clutter and improve airflow
NVIDIA SLI & AMD Crossfire Ready
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
Ultra Quiet Fan with ECO Intelligent Thermal Control Fan system (Zero Fan Noise < 45°C)
Unbeatable 7 Year Warranty and unparalleled EVGA Customer Support.

Specifications

Summary

Product Description
EVGA SuperNOVA 650 G2 - power supply - 650 Watt
Device Type
Power supply - internal
80 PLUS Certification
80 PLUS Gold
Weight
2.7 kg
Input Voltage
AC 100-240 V
Output Voltage
+3.3, +5, ±12 V
Power Capacity
650 Watt
Output connectors
1 x power 24 pin ATX , 2 x power 8 pin +12V with detachable 4 pin section , 2 x 8 pin PCI Express power with detachable 2 pin section , 9 x 15 pin Serial ATA power , 6 x 4 PIN internal power , 1 x 4 PIN mini-power connector , 2 x 6 pin PCI Express power
Cooling System
140 mm fan
Dimensions (WxDxH)
15 cm x 16.5 cm x 8.5 cm
Manufacturer Warranty
7 years warranty


Detail

General

Device Type
Power supply - internal

Power Device

Input Voltage
AC 100-240 V
Frequency Required
50 - 60 Hz
Power Output Connectors Details
1 x power 24 pin ATX , 2 x power 8 pin +12V with detachable 4 pin section , 2 x 8 pin PCI Express power with detachable 2 pin section , 9 x 15 pin Serial ATA power , 6 x 4 PIN internal power , 1 x 4 PIN mini-power connector , 2 x 6 pin PCI Express power
Output Voltage
+3.3, +5, ±12 V
Power Capacity
650 Watt
Output Current
+3.3V - 24 A , +5V - 22 A , +12V - 54.1 A , +5VSB - 3 A , -12V - 0.8 A
Efficiency
90% (115VAC) / 92% (220-240VAC)
80 PLUS Certification
80 PLUS Gold

Miscellaneous

Cables Included
1 x power cable - external - 1.5 m , 3 x Serial ATA cable - external - 70 cm , 2 x PCI Express power cable - external - 85 cm , 1 x power 24 pin ATX modular cable - external - 60 cm , 1 x power 8 pin EPS12V modular cable - external - 85 cm , 1 x floppy adapter - external - 10 cm
MTBF
100,000 hour(s)
Cooling System
140 mm fan
Features
Solid capacitors, over current protection, over voltage protection, overpower protection, SLI ready, CrossFire ready, undervoltage protection, short-circuit protection, single 12V rail, dual ball bearing cooling fan, Eco-Mode
Compliant Standards
TUV, BSMI, CB, FCC, RoHS, WEEE, cTUVus, Energy-Related Products (ErP) Lot 6, RCM

Manufacturer Warranty

Service & Support
Limited warranty - 7 years

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
50 °C

Dimensions & Weight

Width
15 cm
Depth
16.5 cm
Height
8.5 cm
Weight
2.7 kg
