Description

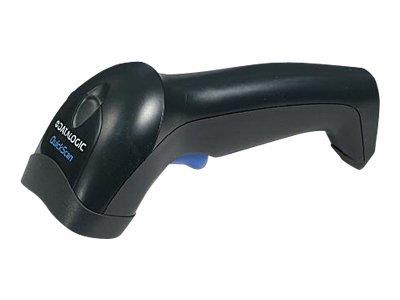

The QuickScan L bar code reader is a bar code scanner with laser technology at an affordable price. The QuickScan L reader is the perfect solution for general purpose users who prefer laser scanning technology and need to read bar codes at nominal distances. This scanner is lightweight and small with an ergonomic form factor which provides the user with ease of scanning during daily operations. Used in retail and office application environments, the QuickScan L reader provides a snappy scanning performance and is capable of reading a wide range of bar codes including the majority of 1D and GS1 DataBar codes (previously known as RSS).
The wider than usual scan angle allows users to read a longer bar code from a shorter distance. The gun shaped ergonomic design fits most users' hands comfortably and the scanner only weighs 4.5oz/128g (without the cable). The QuickScan L reader has been designed with durability in mind. It meets the IP42 sealing rating (against dust and liquid spills) and has a 5ft/1.5m drop specification. This scanner also has a greater than 1 million duty cycle trigger specification as well as sustainable 20kV of Electro Static Discharge (ESD). These are the best class specifications of any product on the market. One of the most vulnerable features of any scanner is damage to the scanner window. When such incidents happen, the scanner may have to be replaced. The QuickScan L reader was specially designed so that the end user can order a replacement window pack and replace the damaged window without having to send the scanner in for repairs.
-
Efficient scanning
Equipped with a visible laser diode, the Datalogic QuickScan L D2330 barcode scanner ensures accurate and efficient scanning with a speed of 100 scans per second. Its ability to read a wide range of barcodes, from Codabar to UPC, makes it versatile for various applications. -
Durable design
Designed to withstand the rigors of daily use, the Datalogic QuickScan L D2330 features a robust form factor that can endure drops from up to 1.5 m to concrete. This durability ensures reliable performance and a longer lifespan for the device. -
Optimal compatibility
The Datalogic QuickScan L D2330 offers seamless integration with PC systems, thanks to its wired connectivity technology. This compatibility, combined with decoded TTL, simplifies setup and use, making it a convenient choice for various scanning needs.
Specifications
Summary
- Product Description
- Datalogic QuickScan L D2330 - barcode scanner
- Type
- Barcode scanner - handheld - USB - decoded
- Colour
- Black
- Minimum Bar Width
- 5 mil
- Scan Field Width
- 13.9 cm - 26.9 cm
- Scan Element Type
- Visible laser diode
- Scan Speed
- 100 scan / sec
- Connectivity Technology
- Wired
- Dimensions (WxDxH)
- 6.7 cm x 7.1 cm x 17 cm
- Weight
- 128 g
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Type
- Barcode scanner - handheld
- Colour
- Black
Barcode
- Interface Type
- USB
- Minimum Bar Width
- 5 mil
- Scan Field Width
- 13.9 cm - 26.9 cm
- Scan Element Type
- Visible laser diode
- Light Source Wave Length
- 650 nm
- Scan Mode
- Single-pass
- Scan Speed
- 100 scan / sec
- Skew (Degrees)
- 60
- Pitch (Degrees)
- 65
- Print Contrast Signal (PCS)
- 30%
- Decode Capability
- EAN/JAN, Code 93, Code 39, UCC/EAN-128, IATA, GS1 DataBar, Code 39 Full ASCII, Discrete 2 of 5, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, MSI-Plessey, Code 128 Full ASCII, Code 39 Trioptic
- TTL Decoding
- Decoded
- Connectivity Technology
- Wired
- OK Notification
- Beeper, LED indicator
- Features
- Reduced Space Symbology (RSS)
Expansion / Connectivity
- Interfaces
- 1 x USB
Miscellaneous
- Included Accessories
- Stand
- Cables Included
- 1 x USB cable
- Compliant Standards
- TUV, ISO 9001, VCCI Class B ITE, CISPR 22 Class B, BSMI CNS 13438 Class B, EN 60950, NOM, PCT, UL 60950, CSA 22.2 No. 60950, EN55022 Class B, ICES-003 Class B, FCC Part 15 B, MIC, RoHS, EN 60825, IEC 60825-1
Power
- Electric Current Required
- 30 mA (standby), 100 mA (typical)
Dimensions & Weight
- Width
- 6.7 cm
- Depth
- 7.1 cm
- Height
- 17 cm
- Weight
- 128 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 5 - 95%
- Drop Specification
- 1.5 m to concrete
