Description

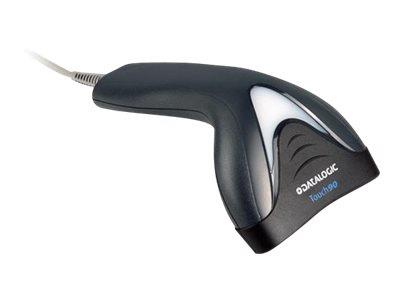

The Touch TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.
Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.
Small, lightweight and low on energy consumption, the Touch TD1100 readers continue to provide robustness and a 1.5 m drop resistance, which is typically included in a higher range of products.
An innovative 'read-thru' holder provides the Touch TD1100 readers with hands-free reading capability on documents or small items. Datalogic's Aladdin configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.
-
Efficient scanning capabilities
The Datalogic Touch TD1100 can read various GS1 DataBar formats with a minimum bar width of 4 mil, enabling efficient processing of different barcode types. -
Robust environmental performance
This scanner functions effectively within a temperature range of 0°C to 50°C and operates in humidity levels from 5 to 95%, allowing it to be used in a variety of settings. -
Stable wired connectivity
Featuring wired connectivity technology, the Datalogic Touch TD1100 ensures a stable and reliable connection for seamless operation in various applications. -
Clear operational feedback
Equipped with an audible beeper and LED indicator, users receive immediate feedback, facilitating efficient workflow and ensuring successful scans.
Specifications
Summary
- Product Description
- Datalogic Touch TD1100 90 Light - barcode scanner
- Type
- Barcode scanner - handheld - USB - decoded
- Colour
- Black
- Minimum Bar Width
- 4 mil
- Scan Field Width
- 15 cm
- Scan Element Type
- Visible laser diode
- Scan Speed
- 256 scan / sec
- Connectivity Technology
- Wired
- Dimensions (WxDxH)
- 6.7 cm x 10.4 cm x 17 cm
- Weight
- 153 g
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Type
- Barcode scanner - handheld
- Colour
- Black
Barcode
- Interface Type
- USB
- Minimum Bar Width
- 4 mil
- Scan Field Width
- 15 cm
- Scan Element Type
- Visible laser diode
- Light Source Wave Length
- 640 nm
- Scan Mode
- Single-pass
- Scan Speed
- 256 scan / sec
- Skew (Degrees)
- 70
- Pitch (Degrees)
- 65
- Print Contrast Signal (PCS)
- 25%
- Decode Capability
- Code 39, GS1 DataBar, EAN/JAN-13, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked
- TTL Decoding
- Decoded
- Connectivity Technology
- Wired
- OK Notification
- Beeper, LED indicator
- Features
- ESD (electrostatic discharge) safe
Expansion / Connectivity
- Interfaces
- 1 x USB - Type A
Miscellaneous
- Included Accessories
- Holder
- Cables Included
- 1 x USB cable - 1.8 m
- Compliant Standards
- RoHS, IP30
Power
- Electric Current Required
- 20 mA (standby), 100 mA (typical)
Software
- Software Included
- Drivers & Utilities, Datalogic Aladdin, OPOS/JavaPOS Drivers
Dimensions & Weight
- Width
- 6.7 cm
- Depth
- 10.4 cm
- Height
- 17 cm
- Weight
- 153 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
- Drop Specification
- 1.5 m to concrete
