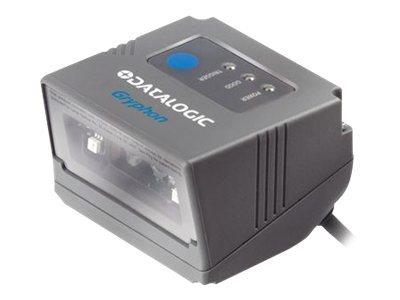

Datalogic Gryphon I GFS4470 Barcode Scanner

Datalogic Gryphon I GFS4470 Barcode Scanner

Review this product
Quicklinx: 9JS2WS00 Mfr#: GFS4470
Type: Barcode scanner
Form Factor: Desktop
Compatibility: PC
Stock Status: In Stock
More than 50 in stock
£166.82 ex VAT
£200.18 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

The Gryphon 4000 series represents the premium level of data collection devices from Datalogic ADC. Using advanced imaging technology, the Gryphon GFS4400 2D fixed mount bar code reader provides a complete self-contained solution for OEM use into self-service kiosks, price verifiers, ticket readers, document handling, and medical laboratory applications, as well as vending machines and other automated equipment.

Designed for easy integration, the Gryphon GFS4400 2D module provides a 'Plug-and-Play' solution for system designers. Constructed using high-impact resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable scanning performance.

The GFS4400 2D OEM module features outstanding near-field reading, a wide angle field-of-view, high motion tolerance, snappy reading, and also offers excellent performance on decoding poor or damaged bar codes. As with all Gryphon readers, the GFS4400 reader offers good-read visual confirmation with Datalogic's patented 'Green Spot' technology.

User comfort is maximized with the GFS4400 OEM module's steady, deep red illumination light. Easier on the eyes than competitive products with flicker illumination, the highly visible 4-dot aimer defines a precise reading zone and reduces accidental reads. The aimer's center cross provides a locator for targeted scanning in a multiple bar code environment. The GFS4400 OEM module eliminates the need for separate equipment with signature capture and document scanning capabilities.

The GFS4400 OEM module supports several modes that can be used as a trigger. This module has the ability to automatically sense objects and trigger itself. A continuous scan mode captures data whenever a bar code passes into its field-of-view. The reader can also be triggered remotely through software commands or via hardware input from programmable logic controller (PLC) or sensor.

Specifications

Summary

Product Description
Datalogic Gryphon I GFS4470 - barcode scanner
Type
Barcode scanner - desktop - USB - decoded
Scan Element Type
Visible laser diode
Connectivity Technology
Wired
Dimensions (WxDxH)
5.8 cm x 5.7 cm x 3.9 cm
Weight
170 g
Manufacturer Warranty
3 years warranty


Detail

General

Type
Barcode scanner - desktop

Barcode

Interface Type
USB
Scan Element Type
Visible laser diode
Skew (Degrees)
40
Pitch (Degrees)
40
Print Contrast Signal (PCS)
25%
Decode Capability
EAN/JAN, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Postnet , PDF417, Data Matrix, PLANET, Australian Post, British Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, MacroPDF417, Royal Mail, Micro QR code, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
Beeper

Expansion / Connectivity

Interfaces
1 x USB

Miscellaneous

Compliant Standards
IP54

Dimensions & Weight

Width
5.8 cm
Depth
5.7 cm
Height
3.9 cm
Weight
170 g

Manufacturer Warranty

Service & Support
3 years warranty
Service & Support Details
Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature
-20 °C
Max Operating Temperature
50 °C
Humidity Range Operating
5 - 95% (non-condensing)
