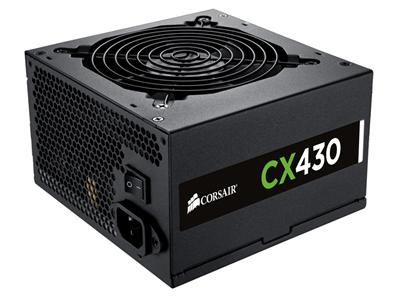

Corsair 430W Builder Series CX 80+ Bronze ATX Power Supply

Review this product
Quicklinx: 8BV9WS00 Mfr#: CP-9020046-UK
Discontinued

Description

The Corsair Builder Series CX430 PSU is designed for worry-free compatibility for your home desktop PC system build or upgrade. With features usually reserved for premium power supplies, they are a great choice for systems where continuous and reliable power delivery and low noise are essential. Inside you will find a power supply that conforms to universal ATX standards, a power cable, and a clear, detailed Quick Start Guide. Corsair Builder Series power supplies get your system up and running quickly and easily, for years of trouble-free operation.The Builder Series CX430 is the ideal choice for PC builders and upgraders who need a great value, quiet and energy efficient PSU for a low/medium specification home or office PC.

  • Corsair engineering and quality control
  • Plentiful connectors and long cables
  • 80 PLUS© Bronze Certified efficiency
  • Large diameter, thermally controller fan
  • Black housing and all-black sleeved cables and connectors
  • 3-Year Warranty

Physical

  • Form Factor ATX
  • Case Colour Black
  • Width 150mm
  • Depth 140mm
  • Height 86mm
  • Weight 2.06Kg

Specifcations

  • Model: CX430
  • AC Input: 100-240V
  • Input Current: 6.3-3.15A
  • Frequency: 47Hz - 63Hz
  • Max Load Max Output: +3.3V 20A 110W, +5V 20A, +12V 32A 384W, -12V 0.8A 9.6W, +5Vsb 3A 15W
  • Total Power: 430W
  • Warranty: 3 Years Manufacturers Warranty

Specifications

Summary

Product Description
Corsair CX430 - power supply - 430 Watt
Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 2.3/ PS/2
80 PLUS Certification
80 PLUS Bronze
Localisation
United Kingdom
Input Voltage
AC 90-264 V
Output Voltage
+3.3, +5, ±12 V
Power Capacity
430 Watt
Output connectors
1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section , 1 x 6 pin PCI Express power , 3 x 4 PIN internal power , 4 x 15 pin Serial ATA power , 1 x 4 PIN mini-power connector
Cooling System
120 mm fan
Dimensions (WxDxH)
15 cm x 14 cm x 8.6 cm
Manufacturer Warranty
3 years warranty


Detail

General

Device Type
Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance
ATX12V 2.3/ PS/2
Colour
Black
Localisation
United Kingdom

Power Device

Input Voltage
AC 90-264 V
Frequency Required
47 - 63 Hz
Power Output Connectors Details
1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section , 1 x 6 pin PCI Express power , 3 x 4 PIN internal power , 4 x 15 pin Serial ATA power , 1 x 4 PIN mini-power connector
Output Voltage
+3.3, +5, ±12 V
Power Capacity
430 Watt
Output Current
+3.3V - 20 A , +5V - 20 A , +12V - 32 A , -12V - 0.8 A , +5VSB - 3 A
80 PLUS Certification
80 PLUS Bronze

Miscellaneous

MTBF
100,000 hours
Cooling System
120 mm fan
Features
Over voltage protection, overpower protection, undervoltage protection, short-circuit protection, single 12V rail
Compliant Standards
FCC Class B certified, UL, TUV, C-Tick, cUL, CB, CCC, Energy-Related Products (ErP) Lot 6

Manufacturer Warranty

Service & Support
3 years warranty
Service & Support Details
Limited warranty - 3 years

Dimensions & Weight

Width
15 cm
Depth
14 cm
Height
8.6 cm

Dimensions & Weight (Shipping)

Shipping Width
19.05 cm
Shipping Depth
26.67 cm
Shipping Height
9.855 cm
Shipping Weight
2.32 kg
