Description
Suffering from poor wireless connectivity at home with your old router? Eliminate the frustration by providing a powerful network with wider coverage and stronger signal strength.
Optimized Mesh powered by WiFi 6
Multy M1 equipped with the latest WiFi 6 technology which has been designed to offer faster and ef?cient connections especially in device dense environments.
Massive Capacity
4 times data capacity to servemore connected networking devices
Maximum Speed
Insanely fast WiFi throughput for improved gaming, streaming, and smart home experience
More Efficiency
OFDMA, DL/UL MU-MIMO improving traf?c efficiency. Suitable for high bandwidth applications and large packet transmission
Seamless roaming, one WiFi name
Multy creates a single wireless network name and password, allowing you to roam, work and play freely throughout your home without the need to reconnect to another network.
Flexible wired and wireless connection

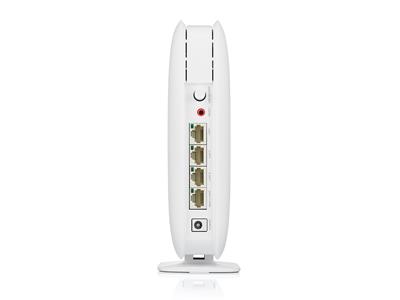

Operate your local network at full capacity with Gigabit solution! Each Multy M1 device equipped with four gigabit Ethernet LAN ports, which can be used to connect to more devices like media servers, NAS storage devices, switches, and other Smart Home devices.
Specifications
Summary
- Product Description
- Zyxel Multy M1 WSM20 - Wi-Fi system - Wi-Fi 6 - desktop, wall-mountable
- Device Type
- Wi-Fi system - mesh
- Enclosure Type
- Desktop, wall-mountable
- Wi-Fi System Components
- 3 routers
- WAN Ports Qty
- 1
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Frequency Band
- 2.4 GHz / 5 GHz
- Performance
- Maximum data rate (2.4 GHz): 574 Mbps , Maximum data rate (5 GHz): 1201 Mbps
- Capacity
- SSIDs total: 3
- Network / Transport Protocol
- TCP/IP, PPTP, L2TP, IPSec, PPPoE, DHCP, DDNS, IPv4, IPv6, OpenVPN
- Routing Protocol
- IGMPv2, IGMP, static IP routing, IGMPv3
- Intelligent Assistant
- Alexa
- Features
- NAT support, auto-uplink (auto MDI/MDI-X), Stateful Packet Inspection (SPI), DoS attack prevention, MAC address filtering, parental control, Wi-Fi Multimedia (WMM) support, Auto Channel Select (ACS), Wi-Fi Protected Setup (WPS), IPSec passthrough, DHCP server, Multiple SSID support, reset button, DHCP client, dual-stream (2x2), VPN Server, PPTP passthrough, Single Sign-On (SSO) support, L2TP passthrough, MU-MIMO technology, beamforming technology, Multicast to Unicast Conversion, band steering, VPN client, push notification, router mode, LED on/off button, guest access, bridge mode, Orthogonal Frequency Division Multiple Access (OFDMA), WPS button, auto firmware update, guest Wi-Fi, traffic separation from host network, AP steering
- Dimensions (WxDxH)
- 13.3 cm x 19.2 cm x 6.6 cm
- Weight
- 254 g
Detailed Specification
General
- Device Type
- Wi-Fi system - mesh - 3-port switch (integrated)
- Wi-Fi System Components
- 3 routers
- Enclosure Type
- Desktop, wall-mountable
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Frequency Band
- 2.4 GHz / 5 GHz
- Performance
- Maximum data rate (2.4 GHz): 574 Mbps , Maximum data rate (5 GHz): 1201 Mbps
- Capacity
- SSIDs total: 3
- Network / Transport Protocol
- TCP/IP, PPTP, L2TP, IPSec, PPPoE, DHCP, DDNS, IPv4, IPv6, OpenVPN
- Routing Protocol
- IGMPv2, IGMP, static IP routing, IGMPv3
- Encryption Algorithm
- WPA3-PSK
- Authentication Method
- Radio Service Set ID (SSID)
- Wi-Fi Rating
- AX1800
- Mesh Networking
- Yes
- Features
- NAT support, auto-uplink (auto MDI/MDI-X), Stateful Packet Inspection (SPI), DoS attack prevention, MAC address filtering, parental control, Wi-Fi Multimedia (WMM) support, Auto Channel Select (ACS), Wi-Fi Protected Setup (WPS), IPSec passthrough, DHCP server, Multiple SSID support, reset button, DHCP client, dual-stream (2x2), VPN Server, PPTP passthrough, Single Sign-On (SSO) support, L2TP passthrough, MU-MIMO technology, beamforming technology, Multicast to Unicast Conversion, band steering, VPN client, push notification, router mode, LED on/off button, guest access, bridge mode, Orthogonal Frequency Division Multiple Access (OFDMA), WPS button, auto firmware update, guest Wi-Fi, traffic separation from host network, AP steering
- Compliant Standards
- BSMI, FCC, LVD, NCC
- Processor
- 1 x 880 MHz
- RAM
- 256 MB
- Flash Memory
- 128 MB
- Status Indicators
- Status
Line Properties
- Line Coding Format
- 1024 QAM
Internet of Things (IoT)
- Internet of Things (IoT) Compatible
- Yes
- Intelligent Assistant
- Alexa
Expansion / Connectivity
- Interfaces
- LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Aerial
- Aerial
- Internal
- Antenna Qty
- 2
Power
- Power Device
- External power adapter
- Power Consumption Operational
- 15 Watt
Miscellaneous
- Included Accessories
- 3 x wall mounting kits
- Cables Included
- Network cable
Dimensions & Weight
- Width
- 13.3 cm
- Depth
- 19.2 cm
- Height
- 6.6 cm
- Weight
- 254 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
