Description
On-the-Fly Storage Expansion for Synology DiskStation

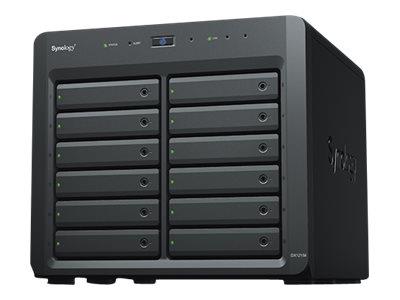

Synology DX1215II expansion units are designed to provide effortless storage expandability for Synology DiskStations. The modest 12-bay desktop form factor allows for maximum storage scalability while taking up minimal space. Plug it in and start leveraging your new storage space thanks to easy installation.
Expand DiskStation With Synology Drives
Synology HAT5300 SATA HDDs, developed in tandem with Synology storage systems, provide proven interoperability and high reliability through rigorous validation. Combine HAT5300 drives with Synology DiskStation and DX1215II for a highly reliable and integrated storage setup, and receive long-term Synology updates and support.
Compact Storage for Easy Expansion
It is easy to expand your Synology DiskStation1 with 12 additional 3.5 inch drive bays with the DX1215II expansion unit. The plug-and-play design adds drives to the host DiskStation without additional setup or downtime.
-
Online volume and storage expansion
Add another volume to your storage or seamlessly expand RAID volumes on Synology DiskStation without reformatting drives with online volume expansion through DiskStation Manager (DSM) to minimize service disruptions. -
Simple setup and management
Plug-and-Play design makes adding the DX1215II to an existing DiskStation simple. Unified drive management through DSM ensures health monitoring, storage allocation, and maintenance tasks are centralized and easily accessible to administrators.
Specifications
Summary
- Product Description
- Synology DX1215II - hard drive array
- Device Type
- Hard drive array
- Max Supported Capacity
- 192 TB
- Interface
- InfiniBand
- Installed Devices / Modules Qty
- 12 (installed) / 12 (max)
- Supported Drives
- SATA-600
- Storage Controller
- (SATA 6Gb/s)
- Hard Drive
- No HDD
- Power
- AC 120/230 V - 50/60 Hz
- Dimensions (WxDxH)
- 27 cm x 30 cm x 34 cm
- Weight
- 9.02 kg
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Hard drive array
Chassis
- Installed Devices / Modules Qty
- 12
- Supported Devices / Modules Qty
- 12
- Supported Drives
- SATA-600
Storage
- Max Supported Capacity
- 192 TB
- HDD Array External Interface
- InfiniBand
Storage Controller
- Interface Type
- SATA 6Gb/s
- Data Transfer Rate
- 600 MBps
Hard Drive
- Type
- No HDD
Expansion / Connectivity
- Expansion Bays
- 12 (total) / 12 (free) x hot-swap - 2.5" / 3.5" shared
- Interfaces
- 1 x InfiniBand
Miscellaneous
- Cables Included
- 1 x InfiniBand cable
- Compliant Standards
- BSMI, FCC, RoHS, KC, EAC, RCM
- Included Accessories
- Accessory pack
Power
- Power Device
- Internal power supply
- Voltage Required
- AC 120/230 V - 50/60 Hz
- Power Consumption Operational
- 51.23 Watt
- Power Provided
- 550 Watt
Dimensions & Weight
- Width
- 27 cm
- Depth
- 30 cm
- Height
- 34 cm
- Weight
- 9.02 kg
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 35 °C
- Humidity Range Operating
- 5 - 95%
- Sound Emission
- 27.2 dBA
