Description

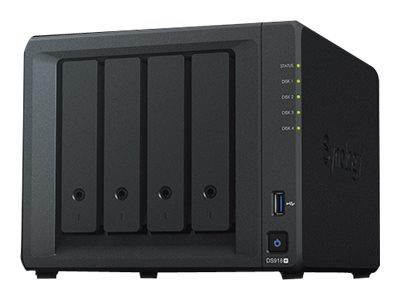

High-speed scalable storage server
Synology DS918+ is designed for small and medium-sized businesses and IT enthusiasts. With a powerful built-in AES-NI hardware encryption engine, DS918+ provides exceptional encrypted file transmission. Also capable of transcoding up to two channels of H.265/H.264 4K videos at the same time, DS918+ is ideal for sharing and storing ultra-high definition media content.
-
Satisfy your need for performance and capacity
DS918+ supports up to two M.2 NVMe 2280 SSDs, allowing fast system cache creation without occupying internal drive bays. Scalable up to 9 drives with a Synology Expansion Unit DX517, DS918+ answers the need for flexible storage capacity. -
Btrfs - next-generation storage efficiency
Btrfs file system features the advanced storage technologies to meet the management needs of modern large scale businesses: -
Digital asset protection
Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes. -
Synchronize files across your devices
Cloud Station Suite provides real-time data synchronization across all your devices, such as computers, mobile devices, and other Synology NAS whenever a file is modified. "Intelliversioning" keeps the most important file versions to better utilize storage space. -
4K multimedia server
Access and stream your 4K media content anytime and anywhere. DS918+ supports 4K H.264/H.265 online transcoding via Video Station and DS video, allowing 4K videos to be converted and played on the fly on other computers, smartphones, and media players that originally do not support Ultra HD formats. -
Security advisor
Analyzes system settings, password strength, network preferences, and removes any possible malware. -
AES 256-bit encryption
Encrypt shared folders and network data transmission to keep data from unauthorized access. -
2-step verification
Prevent others from logging in to your DSM by generating a one-time password (OTP) on your mobile device.
Specifications
Summary
- Product Description
- Synology Disk Station DS918+ - NAS server
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet
- Max Supported Capacity
- 40 TB
- Installed Devices / Modules Qty
- 0 (installed) / 4 (max)
- Dimensions (WxDxH)
- 19.9 cm x 22.3 cm x 16.6 cm
- Weight
- 2.28 kg ()
- Processor
- 1 x Intel Celeron J3455 1.5 GHz (Quad-Core)
- Storage Controller
- RAID SATA 6Gb/s / eSATA RAID 0, 1, 5, 6, 10, JBOD
- Networking
- 10Mb LAN, 100Mb LAN, 1GbE
- RAM
- 4 GB
- Power
- AC 120/230 V (50/60 Hz)
- Storage Operating System
- Synology DiskStation Manager
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet
- Total Storage Capacity
- 0 GB
- Max Supported Capacity
- 40 TB
- Installed Devices / Modules Qty
- 0 (installed) / 4 (max)
- Width
- 19.9 cm
- Depth
- 22.3 cm
- Height
- 16.6 cm
- Weight
- 2.28 kg ()
- Built-in Devices
- Led panel
Processor / Memory
- Processors Installed
- 1 x Intel Celeron J3455 1.5 GHz
- Number of Cores
- Quad-Core
- Max Supported Qty
- 1
- Max Turbo Speed
- 2.3 GHz
- RAM
- 4 GB (installed) / 8 GB (supported) - DDR3L
Storage Controller
- Type
- RAID
- Interface Type
- SATA 6Gb/s / eSATA
- RAID Level
- RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, JBOD
Networking
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, 1GbE
- Network / Transport Protocol
- PPTP, L2TP, iSCSI, SMB
- Remote Management Protocol
- SNMP, Telnet, HTTP, HTTPS, SSH
- Network Services Compatibility
- Microsoft Active Directory (AD), Network File System (NFS), FTP, Apple File Protocol (AFP), Web-based Distributed Authoring and Versioning (WebDAV), Calendaring Extensions to WebDAV (CalDAV)
- Features
- Firewall protection, LDAP support, Access Control List (ACL) support, FTP server, VPN Server
- Encryption Algorithm
- SSL, TLS, AES-NI
- Compliant Standards
- DLNA CERTIFIED
Security DVR
- Compression Format
- MPEG-2, H.264, H.265, VC-1
- Image Resolution
- 1280x720, 1920x1080, 2048x1536, 2591x1944, 4096x2160
Expansion / Connectivity
- Expansion Bays
- 4 (total) / 4 (free) x hot-swap - 2.5" / 3.5"
- Expansion Slots
- 2 x M.2
- Interfaces
- 2 x USB 3.0 , 2 x Ethernet 1000Base-T - RJ-45 , 1 x eSATA
Miscellaneous
- Cables Included
- 2 x network cable
- Features
- Security lock slot (cable lock sold separately), wake on LAN, built-in 2 cooling fans, hardware encryption
- Security Slot Type
- Kensington security slot
- Compliant Standards
- FCC Class B certified, RoHS, BSMI Class B
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V (50/60 Hz)
- Power Consumption Operational
- 28.8 Watt
- Power Consumption Stand by
- 12.6 Watt
- Power Provided
- 100 Watt
Software / System Requirements
- Storage Operating System
- Synology DiskStation Manager
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 5 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 5 - 95%
- Sound Emission
- 19.8 dBA
