Description

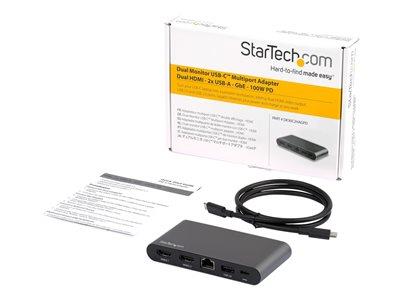

This USB-C multiport adapter turns your Windows laptop into a portable workstation. The dual HDMI adapter connects your USB-C laptop to two HDMI monitors, letting you power through work faster or make presentations with different views on two displays. It gives you two USB-A ports, a Gigabit Ethernet port, a DP Alt Mode Switch, and laptop charging.
Through 100W Power Delivery 3.0, the USB Type-C multiport adapter powers itself as well as your laptop and any attached peripherals, with up to 85W laptop charging when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you unplug the power adapter to switch power sources (USB-C power adapter to bus power).
The USB-C HDMI multiport adapter extends your laptop screen to dual HDMI displays. Using the DP Alt Mode switch, you can choose between higher display resolution or faster USB speed to meet your needs, for desktop or portable use. Choose between: dual 4K30 (or single 4K60) resolution with USB 2.0 speed, or dual 1080p (or single 4K30) resolution with USB 3.0 speed.
The USB-C display adapter gives you two USB-A ports (one USB 3.0/USB 2.0 port, and one USB 2.0) to connect your mouse, keyboard or other peripherals.
The GbE port ensures reliable wired network access. A 1 m USB-C cable is included for greater flexibility.
Note: To ensure full adapter functionality, your laptop's USB-C port must support USB Power Delivery and DP Alt Mode.
-
DisplayPort Alternate Mode to Choose Your Video Display Output
Achieve dual 1080p up to a single 4K 60Hz display using the DisplayPort Alternate Mode (DP Alt-Mode) configuration switch. -
Reliable 100W Power Delivery Passthrough
The USB-C multiport adapter uses your USB-C laptop's power adapter and can provide up to 100W Power Delivery (3.0) pass through with up to 85W for your host device for charging. The remaining wattage will power the docking station along with any attached USB-A peripherals such as smartphones and tablets. -
Multi-Stream Transport for Driverless Displays
The multi-stream transport technology (MST) in this dock powers two HDMI monitors with no driver installation required so you are up and running faster. -
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes: •Text | Advanced Windows Layout Utility : To setup and save custom windows layouts. •Text | Mac Address Pass-Through Utility : To improve network security. •Text | USB Event Monitoring Utility : To track and log connected USB devices •Text | Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales. This docking station is backed by a StarTech.com 3-Year warranty and free lifetime technical support.
Specifications
Summary
- Product Description
- StarTech.com USB C Dock, 4K Dual Monitor HDMI Display, Mini Laptop Docking Station, 100W Power Delivery Passthrough, GbE, 2-Port USB-A Hub, USB Type-C Multiport Adapter,3.3' Cable, Dual 4K - 4K Mini Laptop Dock (DK30C2HAGPD) - docking station - USB-C - 2 x HDMI - 1GbE
- Product Type
- Docking station
- Docking Interface
- USB-C
- Video Interfaces
- 2 x HDMI
- Dimensions (WxDxH)
- 6 cm x 12 cm x 1.88 cm
- Weight
- 200 g
- Colour
- Black
- Networking
- Gigabit Ethernet
- Manufacturer Warranty
- 3-year warranty
- Designed For
- P/N: ARMBARDUO, ARMBARDUOV, ARMDUAL, ARMDUAL30, ARMDUALV, ARMSLIMDUO
Detailed Specification
General
- Product Type
- Docking station
- Width
- 6 cm
- Depth
- 12 cm
- Height
- 1.88 cm
- Weight
- 200 g
- Enclosure Colour
- Black
Networking
- Data Link Protocol
- Gigabit Ethernet
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 1.1, USB 2.0, USB 3.0
Expansion / Connectivity
- Interfaces
- 1 x SuperSpeed USB 3.0 - 24 pin USB-C , 1 x USB-C with Power Delivery - 24 pin USB-C , 2 x display / video - HDMI output - 19 pin HDMI Type A , 1 x network - Ethernet 1000 - RJ-45 , 1 x SuperSpeed USB 3.0 - 9 pin USB Type A , 1 x USB - 4 pin USB Type A
Miscellaneous
- Cables Included
- 1 x USB-C cable
- Features
- USB powered, dual display support, 4K Ultra HD, 85W power delivery, auto MDIX support
- Compliant Standards
- FCC, RoHS, WEEE, UASP (USB Attached SCSI Protocol), USB Power Delivery 3.0
System Requirements
- OS Required
- Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple MacOS X 10.9 - 10.12, Apple macOS 10.14 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Apple macOS 13.0
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Dimensions & Weight (Shipping)
- Shipping Weight
- 220 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
Compatibility Information
- Designed For
- P/N: ARMBARDUO, ARMBARDUOV, ARMDUAL, ARMDUAL30, ARMDUALV, ARMSLIMDUO
