Description
Transform your laptop into a dual-4K 60Hz workstation with this universal laptop docking station, for USB-C and USB 3.0 laptops. Connect to dual DisplayPort or HDMI monitors. Attach USB devices with four USB 3.0 ports. Plus, power your USB-C laptop with 100WPower Delivery.
The USB-C and USB 3.0 docking station provides IT professionals with a convenient one-dock solution for offices using different laptop brands and operating systems. The dock works with Dell, HP, Lenovo, MacBook and most other laptops.
The dual-4K docking station connects your laptop to Ultra HD DisplayPort or HDMI monitors: 2x 4K DisplayPort up to 4096 x 2160p @ 60Hz; 2x 4K HDMI up to 4096 x 2160p @ 60Hz; 1x 4K DP + 1x 4K HDMI display @ 60Hz.
Connect to a single 5K display using two DP ports.
Using a single cable, the dock powers and charges your laptop as you work with 100W PD for faster charging, using the 170W power adapter.
For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).
Connect your devices with four USB 3.0 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.
-

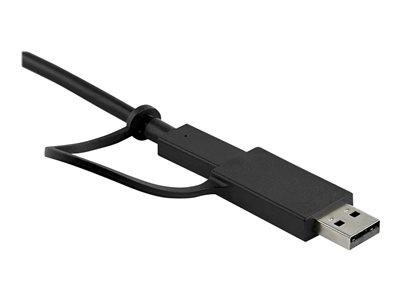

The Uniquely Universal Host Cable
The USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups. Replacement or extra cables can be purchased separately here. -
100W Power Delivery
For high performance laptops that require more charging power, the dock powers and charges your laptop as you work with 100W PD for faster charging, using the 150W power adapter - all through a single cable. -
Flexible Monitor Connections
This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs. •Text | Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz •Text | Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz •Text | Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz •Text | Single 5K DisplayPort * | Up to 5120 × 2880 *Requires monitor support for 5K using two DP ports -
Certified for Universal Compatibility & Reliability
This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility. -
Easy and Convenient Setup
For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).
Specifications
Summary
- Product Description
- StarTech.com USB-C & USB-A Dock, Hybrid Universal Laptop Docking Station with 100W Power Delivery, Dual Monitor 4K 60Hz HDMI & DisplayPort, 4x USB 3.1 Gen 1 Hub, Gigabit Ethernet (GbE) - Hybrid USB Type-C Dock (DK30C2DPEPUE) - docking station - USB-C - 2 x HDMI, 2 x DP - 1GbE
- Product Type
- Docking station
- Docking Interface
- USB-C
- Video Interfaces
- 2 x HDMI, 2 x DP
- Dimensions (WxDxH)
- 22 cm x 8 cm x 3 cm
- Weight
- 280 g
- Colour
- Black, space grey
- Localisation
- United Kingdom, Europe
- Networking
- Gigabit Ethernet
- Power
- Power adapter AC 120/230 V 170 Watt Power Provided
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Product Type
- Docking station
- Width
- 22 cm
- Depth
- 8 cm
- Height
- 3 cm
- Weight
- 280 g
- Enclosure Colour
- Black, space grey
- Localisation
- United Kingdom, Europe
Video
- Max Resolution Details
- 4096 x 2160 - 60 Hz
Networking
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 1.1, USB 2.0, USB 3.0
Expansion / Connectivity
- Interfaces
- 1 x USB 3.1 Gen 1 with Power Delivery - 9 pin USB Type A , 2 x USB 3.1 Gen 1 with Power Delivery - 24 pin USB-C , 2 x display / video - 20 pin DisplayPort , 2 x display / video - 19 pin HDMI Type A , 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 , 1 x USB 3.1 Gen 1 - 9 pin USB Type A , 1 x headphone/microphone combo jack - mini-phone 3.5 mm
Miscellaneous
- Cables Included
- 1 x USB-C cable - external - 1 m
- Features
- Security lock slot (cable lock sold separately), dual monitor support, Preboot Execution Environment (PXE) support, full duplex support, DisplayPort Alt Mode, 100W power delivery
- Security Slot Type
- Kensington security slot
- Compliant Standards
- FCC, RoHS, USB Battery Charging Specification Rev. 1.2, DisplayPort 1.2, UASP (USB Attached SCSI Protocol), USB Power Delivery 3.0
Power
- Power Device
- Power adapter
- Voltage Required
- AC 120/230 V
- Power Provided
- 170 Watt
System Requirements
- OS Required
- Apple macOS 10.12, Google Chrome OS 55 or later, Ubuntu 18.04, Apple macOS 10.14, Apple macOS 10.11, Apple macOS 10.15, Ubuntu 20.04, Apple macOS 11.0, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple macOS 13.0
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 50 °C
