Description

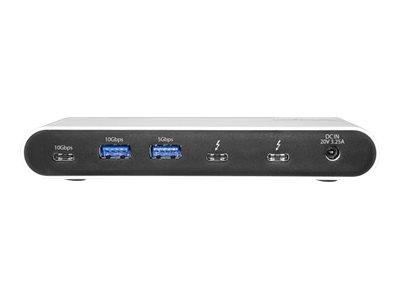

Convert your laptop's Thunderbolt 3 port into multiple USB controller ports, with one USB-C and one USB-A port supporting 10Gbps, plus a daisy-chainable TB3 port. This Thunderbolt 3 to USB 3.1 controller adapter offers twice the performance of a traditional 4-port USB 3.1 hub, enabling you to connect a wide range of devices to your Thunderbolt 3 laptop. With dedicated USB buses, the controller adds four USB ports - two USB-A (5Gbps), one USB-C (10Gbps) and one USB-A (10Gbps).
The two 10Gbps ports are useful for accessing high-performance, bandwidth-hogging devices such as storage arrays, 3D scanners, audio-video capture and broadcast devices, and external SSD drives. The Thunderbolt 3 port can also be used for connecting a second 10Gbps USB-C device.
When only one port is being accessed, the full dedicated 10Gbps is available. If both 10Gbps ports are being accessed at the same time, the bandwidth being provided to each device will be 5Gbps.
The two 5Gbps ports can provide 5Gbps of bandwidth to each device simultaneously, making it ideal for devices such as portable hard drives. You can also connect low-bandwidth devices such as USB flash drives.
The front USB-A port supports both data and charging. The adapter does not need to be connected to a Thunderbolt 3 computer in order to charge your mobile devices.
The adapter features a second Thunderbolt 3 port that you can use to connect an additional display to your laptop (a USB-C video adapter may be required). The port can also be used to connect additional Thunderbolt devices, daisy-chaining up to six devices in all.
-
Maximize USB Performance
The high-speed USB hub provides two 10Gbps ports for connecting high-performance devices such as storage arrays, 3D scanners, audio-video devices, and external SSDs, with dedicated bandwidth for faster read/write access. The second Thunderbolt 3 port can be used to connect an additional USB-C device with up to 10G bandwidth. -
Dedicated Independent Port Bandwidth
When only one USB port is in use, the full 10Gbps bandwidth is available to the device. Two additional USB-A ports provide 5Gbps of bandwidth to each device simultaneously, ideal for portable hard drives or flash drives. For added convenience, the front USB-A port supports both data and charging of your mobile device. -
Extend Your Workstation
The Thunderbolt 3 hub features a second Thunderbolt 3 port to connect an additional display to your laptop (a USB-C video adapter may be required). The port can also be used to connect additional Thunderbolt devices, daisy-chaining up to six devices. The TB33A1C is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
Summary
- Product Description
- StarTech.com External Thunderbolt 3 to USB Controller w/3 Dedicated USB Host Chips, 1 Each for 5Gbps USB-A Ports, 1 Shared Between 10Gbps USB-C & USB-A Ports, Self Powered, TB3 Daisy Chain - Front BC 1.2 Port - docking station - USB-C 3.1 / Thunderbolt 3
- Product Type
- Docking station
- Docking Interface
- USB-C 3.1 / Thunderbolt 3
- Dimensions (WxDxH)
- 7.4 cm x 14.8 cm x 2.35 cm
- Weight
- 1.102 kg
- Colour
- Black, silver
- Localisation
- Australia, Japan, New Zealand, United Kingdom, Europe, North Asia
- Power
- Power adapter AC 120/230 V
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU
Detailed Specification
General
- Product Type
- Docking station
- Width
- 7.4 cm
- Depth
- 14.8 cm
- Height
- 2.35 cm
- Weight
- 1.102 kg
- Enclosure Colour
- Black, silver
- Localisation
- Australia, Japan, New Zealand, United Kingdom, Europe, North Asia
Expansion / Connectivity
- Interfaces
- 2 x USB-C 3.1 / Thunderbolt 3 - 24 pin USB-C , 1 x SuperSpeed USB 3.0 with Battery Charging 1.2 - 9 pin USB Type A , 1 x SuperSpeed USB 3.0 - 9 pin USB Type A , 1 x USB 3.1 Gen 2 - 9 pin USB Type A , 1 x USB 3.1 - 24 pin USB-C
Miscellaneous
- Cables Included
- 1 x Thunderbolt 3 / USB-C cable - external - 50 cm
- Compliant Standards
- FCC, RoHS, USB Battery Charging Specification Rev. 1.2, UASP (USB Attached SCSI Protocol)
Power
- Power Device
- Power adapter
- Voltage Required
- AC 120/230 V
System Requirements
- OS Required
- Apple macOS 10.12 - 10.15, Apple macOS 11.0, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS 12.0, Apple macOS 13.0
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
Compatibility Information
- Designed For
- P/N: TB3DK2DPM2, TB3DOCK2DPPD, TB3DOCK2DPPU
