Description

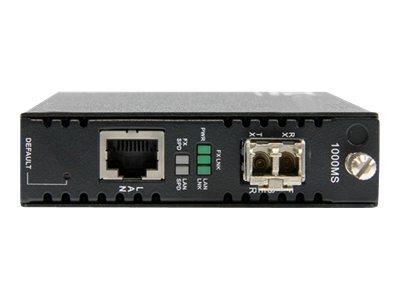

Convert and extend a Gigabit Ethernet connection over Multimode LC fiber with remote management capabilities. The ET91000LCOAM Managed Fiber Media Converter lets you extend a Gigabit Ethernet connection over Multimode LC fiber, with the added benefit of remote management capabilities.
Compliant with 802.3ah OAM (Operations, Administration & Management), this managed media converter incorporates an easy-to-use web interface for operation, administration and maintenance, enabling you to quickly determine the location of failing links and the fault conditions without sending service personnel to the physical location of the device.
An effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the Ethernet to fiber converter supports full Gigabit speeds at distances of up to 550m (1804ft) through the installed Multi-Mode LC SFP. The converter also features an all-steel chassis, for durability in harsh environments.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U), as well as a replaceable MSA-compliant SFP slot.
Specifications
Summary
- Product Description
- StarTech.com Multimode (MM) LC Fiber Media Converter with SFP - OAM Management - 802.3ah Compliant - Gigabit Ethernet - 550m - 850nm (ET91000LCOAM) - fibre media converter - 1GbE
- Device Type
- Fibre media converter - RJ-45 / LC multi-mode
- Form Factor
- External
- Cabling Type
- 1000Base-LX, 1000Base-SX, 1000Base-TX, 1000Base-T
- Data Transfer Rate
- 1 Gbps
- Optical Wave Length
- 850 nm
- Data Link Protocol
- 1GbE
- Max Transfer Distance
- 550 m
- Dimensions (WxDxH)
- 9.5 cm x 16 cm x 2 cm
- Weight
- 620 g
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: SVA12M2NEUA, SVA12M5NA
Detailed Specification
General
- Device Type
- Fibre media converter
- Form Factor
- External
- Colour
- Black
Networking
- Connectivity Technology
- Wired
- Cabling Type
- 1000Base-LX, 1000Base-SX, 1000Base-TX, 1000Base-T
- Data Link Protocol
- 1GbE
- Data Transfer Rate
- 1 Gbps
- Optical Wave Length
- 850 nm
- Max Transfer Distance
- 550 m
- Status Indicators
- Port status, power
- Features
- Auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode
- Compliant Standards
- IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ah
Expansion / Connectivity
- Interfaces
- 1 x Ethernet 1000Base-T - RJ-45 female , 1 x Ethernet 1000Base-SX - LC multi-mode female x 2
Miscellaneous
- MTBF
- 65,000 hour(s)
- Compliant Standards
- FCC, RoHS
Power
- Power Device
- External power adapter
Dimensions & Weight
- Width
- 9.5 cm
- Depth
- 16 cm
- Height
- 2 cm
- Weight
- 620 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 60 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
Compatibility Information
- Designed For
- P/N: SVA12M2NEUA, SVA12M5NA
