Description

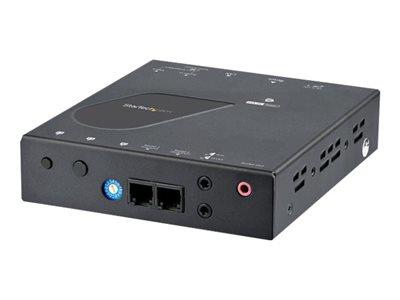

This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5 or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.
You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.
With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.
The kit includes an easy-to-use online app to manage your IP video distribution.
The app is available on iOS for an iPhone or iPad, Android for a smartphone or tablet, and Google Chrome browser for a desktop.
The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.
Specifications
Summary
- Product Description
- StarTech.com HDMI over IP Extender Kit with Video Wall Support - 1080p - HDMI over CAT5e / CAT6 Transmitter and Receiver Kit (ST12MHDLAN2K) - video/audio/infrared/serial extender - HDMI - TAA Compliant
- Device Type
- Video/audio/infrared/serial extender
- Form Factor
- External
- Localisation
- Australia, Japan, New Zealand, United Kingdom, Europe, North Asia
- Data Link Protocol
- HDMI
- Max Transfer Distance
- 100 m
- Power
- AC 120/230 V
- Dimensions (WxDxH)
- 11.8 cm x 13.1 cm x 3.1 cm
- Weight
- 80 g
- TAA Compliant
- Yes
- Manufacturer Warranty
- 2-year warranty
- Designed For
- P/N: ST12MHDLAN2R
Detailed Specification
General
- Device Type
- Video/audio/infrared/serial extender
- Form Factor
- External
- Colour
- Black
- Localisation
- Australia, Japan, New Zealand, United Kingdom, Europe, North Asia
Networking
- Connectivity Technology
- Wired
- Data Link Protocol
- HDMI
- Max Resolution
- 1920 x 1080 @ 60 Hz
- Max Transfer Distance
- 100 m
- Status Indicators
- Power, link OK, status
- Features
- Wall mountable, daisy-chaining support
Expansion / Connectivity
- Interfaces
- 1 x HDMI (input) - 19 pin HDMI Type A female , 1 x HDMI (output) - 19 pin HDMI Type A female , 2 x RS-232 (input) - RJ-11 , 2 x RS-232 (output) - RJ-11 , 2 x IrDA (input) - mini jack , 2 x IrDA (output) - mini jack , 2 x audio (input) - mini jack , 2 x audio (output) - mini jack
Miscellaneous
- Included Accessories
- IR receiver, IR transmitter, 8 foot pads
- Cables Included
- 1 x network cable , 2 x RJ-11 to RS-232 adapter , 2 x RJ-11 phone cable
- Mounting Kit
- Included
- Rack Mounting Kit
- Included
- Compliant Standards
- FCC, RoHS
- TAA Compliant
- Yes
Power
- Power Device
- External power adapter
- Max Supported Qty
- 2
- Voltage Required
- AC 120/230 V
- Power Consumption Operational
- 10 Watt
Dimensions & Weight
- Width
- 11.8 cm
- Depth
- 13.1 cm
- Height
- 3.1 cm
- Weight
- 80 g
Dimensions & Weight (Shipping)
- Shipping Weight
- 200 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 80%
Compatibility Information
- Designed For
- P/N: ST12MHDLAN2R
