Description

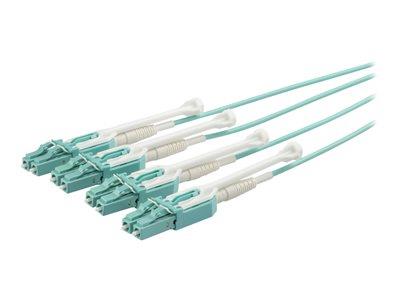

Fan out eight fibers from a 40Gbps MPO connection to four 10Gbps LC connections. This MPO/MTP to 8x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.
The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.
The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
Specifications
Summary
- Product Description
- StarTech.com MTP to LC Breakout Cable - 6 ft / 2m - OM3 Multimode - 40Gb - Pull Tab - Plenum - MPO / MTP Connector - Fiber Optic Cable (MPO8LCPL2M) - breakout cable - 2 m - aqua
- Type
- Breakout cable - OM3
- Technology
- Fibre optic
- Type of Fibre Optics
- Multimode
- Features
- Plenum
- Length
- 2 m
- Core / Cladding Diameter
- 50 / 125 micron
- Connector
- MTP/MPO multi-mode - female - push/pull
- Connector (Second End)
- 8 x LC multi-mode - male - push/pull
- Colour
- Aqua
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Network Cable Type
- Breakout cable - OM3
- Technology
- Fibre optic
- Type of Fibre Optics
- Multimode
- Core / Cladding Diameter
- 50 / 125 micron
- Features
- Plenum
- Length
- 2 m
- Weight
- 47.8 g
- Colour
- Aqua
Connectivity
- Connector
- MTP/MPO multi-mode - female - push/pull
- Connector (Second End)
- 8 x LC multi-mode - male - push/pull
Miscellaneous
- Compliant Standards
- RoHS
Manufacturer Warranty
- Service & Support
- Limited lifetime warranty
