StarTech.com Dual mSATA SSD to 2.5" SATA RAID Adapter Converter

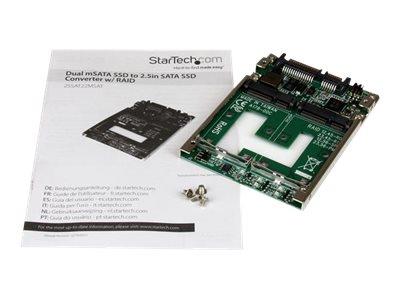

StarTech.com Dual mSATA SSD to 2.5" SATA RAID Adapter Converter

Review this product
Quicklinx: 9D6YWS00 Mfr#: 25SAT22MSAT
Type: Storage controller
Stock Status: In Stock
8 in stock
£38.55 ex VAT
£46.26 inc VAT
Qty
Standard delivery Delivered within 3-5 working days

Description

Build a RAID array with two mSATA SSDs that can be installed into a single 2.5in SATA bay. Vastly increase system performance by adding a dual mSATA SSD RAID array into any 2.5" SATA HDD application with the 25SAT22MSAT mSATA to SATA adapter.

Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your Data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.

You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG). The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.

Help protect the health of your drive with an open-frame design ensuring maximum heat dissipation.

Specifications

Summary

Product Description
StarTech.com Dual mSATA SSD to 2.5" SATA RAID Adapter Converter - storage controller - mSATA - SATA 6Gb/s
Device Type
Storage controller - internal
Bus Type
SATA 6Gb/s
Interface
mSATA
Data Transfer Rate
6 GBps
Supported Devices
Hard drive, solid state drive
Channel Qty
2
RAID Level
RAID 0, RAID 1, JBOD, BIG
Dimensions (WxDxH)
7 cm x 10 cm x 0.7 cm
Weight
40 g
Manufacturer Warranty
2 years warranty


Detail

General

Device Type
Storage controller - internal
Host Bus
SATA 6Gb/s

Storage Controller

Interface
mSATA
Data Transfer Rate
6 GBps
Supported Devices
Hard drive, solid state drive
Channel Qty
2
RAID Level
RAID 0, RAID 1, JBOD, BIG

Expansion / Connectivity

Interfaces
2 x - 52 pin mini-SATA
Connections
1 x SATA 6Gb/s - 15 pin Serial ATA power

Miscellaneous

Mounting Kit
Included
Compliant Standards
FCC, RoHS

Manufacturer Warranty

Service & Support
Limited warranty - 2 years

Dimensions & Weight

Width
7 cm
Depth
10 cm
Height
0.7 cm
Weight
40 g

Environmental Parameters

Min Operating Temperature
-40 °C
Max Operating Temperature
85 °C
