Description

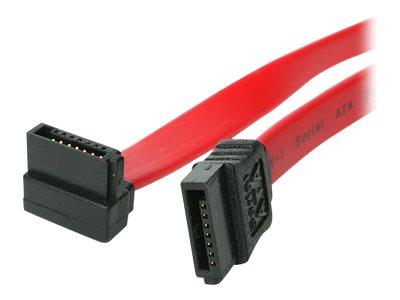

Make a right-angled connection to your SATA drive, for installation in tight spaces. The SATA8RA1 Right Angle (90-degree) SATA Cable features a standard (straight) SATA receptacle as well as a right-angled SATA receptacle, providing a simple 8-inch connection to a Serial ATA drive, with full SATA 3.0 bandwidth support of up to 6Gbps when used with SATA 3.0 compliant drives.
The right-angled SATA connection enables you to plug in your Serial ATA hard drive in hard to reach areas or tight spaces, while the low profile and flexible design of the cable improves airflow and reduces clutter in your computer case, helping to keep the case clean and cool.
As an alternative, StarTech.com also offers an 8in Left Angle SATA cable (SATA8LA1), which provides the same simple installation as this right angled SATA cable, but allows the cable to connect to the SATA drive from the opposite direction.
Specifications
Summary
- Product Description
- StarTech.com 8in SATA to Right Angle SATA Serial ATA Cable - 8in SATA Cable - 8 SATA Cable - right angle SATA Cable - SATA cable - 20.3 cm
- Type
- SATA cable
- Interface Speed
- Serial ATA 150/300/600
- Technology
- Shielded
- Features
- Right-angled connector
- Length
- 20.3 cm
- Connector
- 7 pin Serial ATA - receptacle
- Connector (Second End)
- 7 pin Serial ATA - receptacle
- Colour
- Red
- Manufacturer Warranty
- Limited lifetime warranty
- Designed For
- P/N: USB2SATAIDE, USB3SSATAIDE
Detailed Specification
General
- Storage Cable Type
- SATA cable
- Interface Speed
- Serial ATA 150/300/600
- Technology
- Shielded
- Shielding Material
- Aluminum mylar foil with braid
- American Wire Gauge (AWG)
- 26
- Features
- Right-angled connector
- Length
- 20.3 cm
- Colour
- Red
Connectivity
- Connector
- 7 pin Serial ATA - receptacle
- Connector (Second End)
- 7 pin Serial ATA - receptacle
Miscellaneous
- Compliant Standards
- RoHS
Manufacturer Warranty
- Service & Support
- Limited lifetime warranty
Compatibility Information
- Designed For
- P/N: USB2SATAIDE, USB3SSATAIDE
