Description
2x USB 3.2 Gen 2x1 (10Gbps) Type-A - 1x USB 3.2 Gen 2x1 (10Gbps) Type-C 2x1 - 2x USB 3.2 Gen 1x1 (5Gbps) IDC.
-
Work faster and prepare for the future
This versatile PCI Express combo card leverages the performance potential of USB 3.2 Gen 2x1 (10Gbps) to help you work faster. The USB ports offer a data throughput of up to 10Gbps, so you can spend less time waiting for file transfers to complete or for access to your external peripherals. -
Connect different types of USB devices

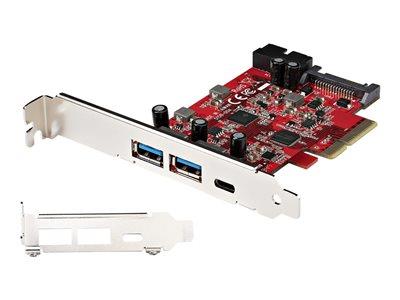

Now you can easily add a variety of types and speeds (generations) of USB ports to your desktop or server, using a single adapter card. The card features: • One external USB-C port (10Gbps) • Two external USB-A ports (10Gbps) • One internal 20-pin IDC motherboard header port that can provide two internal USB-A ports (5Gbps) With a range of port types, the card lets you bridge the gap between devices that use different connectors. You can simultaneously connect and access USB Type-A and USB Type-C devices, while using only a single PCI Express expansion slot. By adding three types of USB ports in one combo card, you can free up space in your PC case, and eliminate the nuisance of having different cards for different USB devices. -
Ideal for building or upgrading your computer
With two internal motherboard-style headers, this dynamic USB 3.1 card is perfect for upgrading or building your own computer. If your existing headers are occupied, or if you don't have any motherboard headers, you can connect front panel hubs or card readers using this versatile alternative to costly motherboard or computer upgrades. -
Connect your older USB devices
Connecting your older peripherals isn't a problem. This 5-port USB 3.2 card is backward compatible with legacy USB 3.0, 2.0 and 1.1 devices, so you can eliminate the added expense and aggravation of purchasing new devices. PEXUSB312A1C1H is backed by a StarTech.com 2-year warranty and free lifetime technical support. Note: The card does not support DP alt mode or USB Power Delivery.
Specifications
Summary
- Product Description
- StarTech.com 5-Port USB PCIe Card, 10Gbps USB 3.1 Gen 2 PCIe Card w/ 1x USB-C & 2x USB-A, 1x 2 Port IDC (Internal 5Gbps USB Header Expansion), USB C PCIe Card, PCI Express USB Controller - Windows/macOS/Linux (PEXUSB312A1C1H) - USB adapter - PCIe 3.0 x4 - USB-C 3.1 Gen 2 x 2 + USB-C 3.2 Gen 2 x 1
- Device Type
- USB adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express 3.0 x4
- Ports
- USB-C 3.1 Gen 2 x 2 + USB-C 3.2 Gen 2 x 1
- Dimensions (WxDxH)
- 6.89 cm x 10.2 cm x 1.44 cm
- Weight
- 60 g
- Data Link Protocol
- USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 2, USB 3.2 Gen 1
- Data Transfer Rate
- 10 Gbps
- Processor
- ASMedia ASM1142
- Compliant Standards
- USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 2, USB 3.2 Gen 1
- Colour
- Red
- System Requirements
- Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Microsoft Windows Server 2019, Linux LTS versions only, Linux 3.5 or later, Apple macOS Catalina 10.15, Apple macOS Big Sur 11.0, Apple macOS Monterey 12.0, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS Ventura 13.0
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- USB adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express 3.0 x4
Networking
- Ports
- USB-C 3.1 Gen 2 x 2 + USB-C 3.2 Gen 2 x 1
- Connectivity Technology
- Wired
- Data Link Protocol
- USB 2.0, SuperSpeed USB 3.0, USB 3.1, USB 3.2 Gen 2, USB 3.2 Gen 1
- Data Transfer Rate
- 10 Gbps
- Features
- UASP
- Compliant Standards
- USB 2.0, USB 3.0, USB 3.1, USB 3.2 Gen 2, USB 3.2 Gen 1
Processor / Memory
- Processor
- ASMedia ASM1142
Expansion / Connectivity
- Interfaces
- 2 x USB 3.1 Gen 2 - 9 pin USB Type A , 1 x USB 3.2 Gen 2 - 24 pin USB-C , 1 x SATA power - 15 pin Serial ATA power (internal) , 1 x USB 3.0 - 20 pin IDC (internal)
Miscellaneous
- Included Accessories
- Low-profile bracket
- MTBF
- 1,677,495 hours
- Compliant Standards
- FCC, RoHS, WEEE, UASP (USB Attached SCSI Protocol)
- Colour
- Red
Software / System Requirements
- OS Required
- Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Apple macOS High Sierra 10.13, Apple macOS Mojave 10.14, Microsoft Windows Server 2019, Linux LTS versions only, Linux 3.5 or later, Apple macOS Catalina 10.15, Apple macOS Big Sur 11.0, Apple macOS Monterey 12.0, Microsoft Windows 7 / 8 / 8.1 / 10 / 11, Apple macOS Ventura 13.0
Dimensions & Weight
- Width
- 6.89 cm
- Depth
- 10.2 cm
- Height
- 1.44 cm
- Weight
- 60 g
Dimensions & Weight (Shipping)
- Shipping Width
- 14.2 cm
- Shipping Depth
- 17 cm
- Shipping Height
- 3 cm
- Shipping Weight
- 125 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
- Humidity Range Operating
- 15 - 90% (non-condensing)
