Description

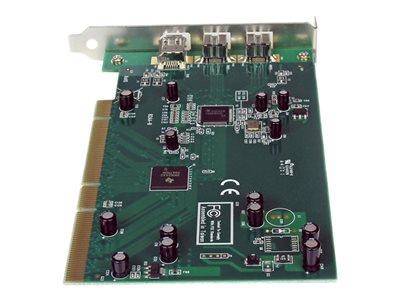

Add 2 FireWire-800 and 1 FireWire-400 to your desktop computer through a PCI slot. The PCI1394B 3 3-Port PCI FireWire Adapter Card turns a PCI slot into 2 FireWire 800 (IEEE 1394b) ports and 1 FireWire 400 (IEEE 1394a) port - a cost-effective solution that lets you connect FireWire 800 devices, as well as older FireWire 400 devices to your desktop computer.
A versatile FireWire solution, the adapter card works in both 5v and 3.3v PCI slots and in 64-bit and 32-bit operating environments, making it easy to create a high-speed laptop digital media center, or connect demanding FireWire peripheral devices such as portable hard drives, DV camcorders, digital cameras and CD-RW/DVD-RW drives.
This high quality adapter card is designed to provide reliable FireWire 800 and FireWire 400 connections, delivering 800 Mbps and 400 Mbps data transfer rates respectively (a 64-bit PCI slot is required to achieve 800 Mbps data transfer rates).
Specifications
Summary
- Product Description
- StarTech.com 3 Port 2b 1a PCI 1394b High-quality FireWire Adapter Card (PCI1394B_3) - FireWire adapter - PCI 64 - 3 ports
- Device Type
- FireWire adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI 64
- Ports Qty
- 3 ports
- Data Link Protocol
- Firewire, FireWire 800
- Data Transfer Rate
- 800 Mbps
- System Requirements
- Linux, Microsoft Windows 2000, Apple MacOS X 10.2.x, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits)
- Manufacturer Warranty
- Limited lifetime warranty
Detailed Specification
General
- Device Type
- FireWire adapter - 3 ports
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI 64
Networking
- Connectivity Technology
- Wired
- Data Link Protocol
- IEEE 1394 (FireWire), IEEE 1394b (FireWire 800)
- Data Transfer Rate
- 800 Mbps
Expansion / Connectivity
- Interfaces
- 2 x FireWire 800 - 9 pin FireWire 800 , 1 x FireWire - 6 PIN FireWire
- Compatible Slots
- 1 x PCI 64
Software / System Requirements
- OS Required
- Linux, Microsoft Windows 2000, Apple MacOS X 10.2.x, Microsoft Windows Vista (32/64 bits), Microsoft Windows 7 (32/64 bits), Microsoft Windows XP (32/64 bits), Windows 8 (32/64 bits), Windows 10 (32/64 bits)
- Additional Requirements
- PCI slot
Manufacturer Warranty
- Service & Support
- Limited lifetime warranty
Bundle deals
 |
StarTech.com 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter | In Stock | £54.89 |
 |
StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter | In Stock | £70.25 |
 |
StarTech.com 10 ft 1394b Firewire 800 Cable 9-9 M/M | In Stock | £14.66 |
Customer reviews
Write a review for the StarTech.com 3 Port 2b 1a PCI 1394b FireWire Adapter Card with DV Editing Kit here!
More Accurate description
Reviewed by Anonymous Review Posted 29/11/2006
This is a PCI 64 card & some notes from the Instruction Manual, for consideration before purchase.
'A 64-bit PCI slot is REQUIRED for a 800 Mbits/sec. data transfer rate.'
'If you are using the PCI1394b card in a 32-bit slot, make sure that the exposed end of the card is not in contact with any conducting parts on your motherboard. Not all motherboards allow 64-bit cards to fit into 32-bit slots.'
-
Overall
-
Ease of use
-
Value for money
Further comment on 1394b card
Reviewed by Anonymous Review Posted 29/11/2006
Fitting the card into a 32-bit slot was easy, even if it meant adjusting another card to be clear of any contact points on m'board. Driver install was easy but this missed the point, as the whole purpose was to get 800 Mbits/sec or Firewire800 transfer speed! So still at Firewire400 with my 32-bit PCI slots! If only this had been clearer... To connect my Firewire800 device, purchasing 9pin-6pin cable: quicklinx: 4026WS mfr#: 1394_96_10 £12.81 inc vat would be the better choice!
-
Overall
-
Ease of use
-
Value for money
