Description

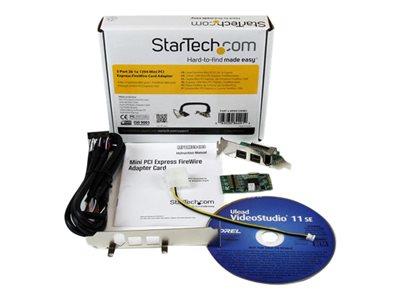

Add 2 FireWire-800 and 1 FireWire-400 port through a Mini PCI Express slot. The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps. Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit.
Specifications
Summary
- Product Description
- StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter - FireWire adapter - PCIe Mini Card - FireWire 800 - 2 ports + 1 x FireWire - MPEX1394B3 - FireWire adapter - PCIe Mini Card - 2 ports
- Device Type
- FireWire adapter
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express Mini Card
- Dimensions (WxDxH)
- 3 cm x 5 cm x 0.4 cm
- Weight
- 6.8 g
- Ports Qty
- 2 ports
- Auxiliary Ports
- 1 x IEEE 1394 (FireWire)
- Data Link Protocol
- FireWire 800
- Data Transfer Rate
- 800 Mbps
- System Requirements
- Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Linux 3.5.x or later LTS versions only, Apple macOS 13.0
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- FireWire adapter - 2 ports
- Form Factor
- Plug-in card
- Interface (Bus) Type
- PCI Express Mini Card
Networking
- Connectivity Technology
- Wired
- Data Link Protocol
- IEEE 1394b (FireWire 800)
- Auxiliary Ports
- 1 x IEEE 1394 (FireWire)
- Data Transfer Rate
- 800 Mbps
Expansion / Connectivity
- Interfaces
- 2 x FireWire 800 - 9 pin FireWire 800 , 1 x FireWire - 6 PIN FireWire
- Compatible Slots
- 1 x PCI Express Mini Card - full-length
Miscellaneous
- Compliant Standards
- FCC, RoHS
Software / System Requirements
- OS Required
- Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Linux 3.5.x or later LTS versions only, Apple macOS 13.0
Dimensions & Weight
- Width
- 3 cm
- Depth
- 5 cm
- Height
- 0.4 cm
- Weight
- 6.8 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 70 °C
