Description

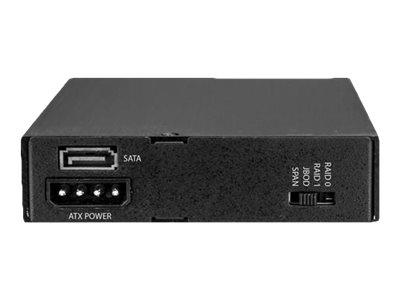

Easily connect and hot swap two 2.5 in. SATA hard drives or SSDs through a single 3.5 in. front bay. This HDD rack lets you install two 2.5" SATA hard drives or solid-state drives into a single 3.5" front bay. With configurable RAID support, the SATA drive rack provides an ideal data storage solution.
Configure and arrange your drives for increased drive capacity, performance, or data redundancy, with built-in RAID functionality. With multiple RAID options, such as RAID 0, RAID 1, spanning, or JBOD, you can build the data storage solution that works best for you.
This SATA backplane is trayless and hot-swappable, which makes it easy to install and remove your drives from your computer system when required, without having to open the case every time. It also provides a more convenient way to create backups for data recovery and archiving.
The removable hard-drive bay/backplane features durable aluminum construction for long-lasting performance. The SATA backplane also has LED indicators for power and hard drive activity, and drive status, which makes it easy to monitor the status of your hard drives and RAID array.
Specifications
Summary
- Product Description
- StarTech.com 2.5" SATA SSD / HDD Mobile Rack - Hot Swap Trayless Mobile Rack - Dual-Bay Rack for 3.5" Bay - RAID HDD Rack (HSB225S3R) - storage controller (RAID) - SATA 6Gb/s - SATA 6Gb/s
- Device Type
- Storage controller (RAID) - internal
- Bus Type
- SATA 6Gb/s
- Colour
- Black
- Expansion Bays
- 2 x hot-swap - 2.5" SFF
- Compatible Bay
- 1 3.5"
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 600 MBps
- Supported Devices
- Hard drive, disk array (RAID), solid state drive
- Max Storage Devices Qty
- 2
- RAID Level
- RAID 0, RAID 1, JBOD, BIG
- Product Material
- Plastic, aluminium
- Dimensions (WxDxH)
- 10.12 cm x 14 cm x 2.5 cm
- Weight
- 220 g
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Storage controller (RAID) - internal
- Host Bus
- SATA 6Gb/s
- Product Material
- Plastic, aluminium
- Colour
- Black
Storage Controller
- Interface
- SATA 6Gb/s
- Data Transfer Rate
- 600 MBps
- Supported Devices
- Hard drive, disk array (RAID), solid state drive
- Max Storage Devices Qty
- 2
- RAID Level
- RAID 0, RAID 1, JBOD, BIG
- Processor
- ASMedia ASM1092R
Expansion / Connectivity
- Bays
- 2 x hot-swap - 2.5" SFF
- Interfaces
- 2 x SATA 6Gb/s - SATA combo
- Connections
- 1 x SATA 6Gb/s - 7 pin Serial ATA
- Compatible Bay
- 1 x drive cage 3.5"
Miscellaneous
- Cables Included
- 1 x Serial ATA cable - detachable , 1 x power 15 pin SATA to 4 pin adapter - detachable
- Features
- TRIM support
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Dimensions & Weight
- Width
- 10.12 cm
- Depth
- 14 cm
- Height
- 2.5 cm
- Weight
- 220 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 5 - 65%
