Description
This 1U 16-port KVM console provides complete keyboard, monitor and mouse control for 16 computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.
-
Maximize your IT budget, minimize your hassle
This 16-port KVM switch provides all the essential controls you'll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard for intuitive control and an LCD display that supports resolutions up to 1280x1024. -
Maximize your screen space
The increased screen space enables you to run multiple applications on the same screen, maximizing your productivity. -
Clutter-free monitoring
The console slides out from 1U of rack space, enabling you to easily monitor and control 16 servers, and even more if connecting through a KVM switch. The rack-mount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free. -
Hassle-free system integration
The rackmount LCD features a 16-port KVM module, allowing you to connect it directly to 16 servers. You can also connect to additional servers by connecting to KVM switches in a cascaded (daisy-chained) configuration. The KVM module offers the flexibility you need to easily integrate the console into your existing server infrastructure.
Specifications
Summary
- Product Description
- StarTech.com 16 Port Rackmount KVM Console with 6ft Cables, Integrated KVM Switch with 19" LCD Monitor, Fully Featured 1U LCD KVM Drawer- OSD KVM, Durable 50,000 MTBF, USB + VGA Support - 19in. LCD KVM Console (RKCONS1916K) - KVM console - 19"
- Device Type
- KVM console - 19"
- KVM Switch
- PS/2, USB - 16 ports
- Keyboard Layout
- US
- Daisy Chaining
- Yes
- Features
- Keyboard, touchpad, 16 port KVM switch
- Aspect Ratio
- 5:4
- Native Resolution
- 1280 x 1024
- Pixel Pitch
- 0.264 mm
- Brightness
- 250 cd/m²
- Contrast Ratio
- 1000:1
- Colour Support
- 16.7 million colours
- Input Connectors
- VGA
- Colour
- Black
- Dimensions (WxDxH)
- 48.3 cm x 64.3 cm x 4.3 cm
- Height (Rack Units)
- 1U
- Weight
- 13.5 kg
- Localisation
- Australia, Japan, New Zealand, North America, United Kingdom, Europe
- Compliant Standards
- UL, FCC, RoHS, WEEE, PSE Mark, RCM
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Display Type
- KVM console / TFT active matrix
- Diagonal Size
- 19"
- Daisy Chaining
- Yes
- Built-in Devices
- 16 port KVM switch
- Aspect Ratio
- 5:4
- Native Resolution
- 1280 x 1024
- Pixel Pitch
- 0.264 mm
- Brightness
- 250 cd/m²
- Contrast Ratio
- 1000:1
- Colour Support
- 16.7 million colours
- Colour
- Black
- Dimensions (WxDxH)
- 48.3 cm x 64.3 cm x 4.3 cm
- Height (Rack Units)
- 1U
- Weight
- 13.5 kg
Input
- Type
- Keyboard, touchpad
KVM
- Type
- KVM switch - 16 ports
- Keyboard / Mouse Interface
- PS/2, USB
- Max Resolution
- 1280 x 1024
Connectivity
- Interfaces
- 2 x VGA , 2 x USB 2.0 , 16 x KVM , 2 x PS/2
Miscellaneous

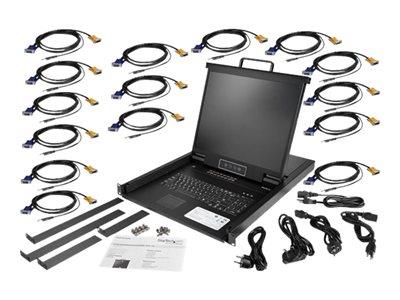

- Included Accessories
- 8 x M5 cage nuts, 8 x M5 screws, 4 x mounting rails
- Cables Included
- 16 x keyboard / mouse / video cable
- Rack Mounting Kit
- Included
- MTBF
- 50,000 hour(s)
- Compliant Standards
- UL, FCC, RoHS, WEEE, PSE Mark, RCM
- Localisation
- Australia, Japan, New Zealand, North America, United Kingdom, Europe
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
