Description

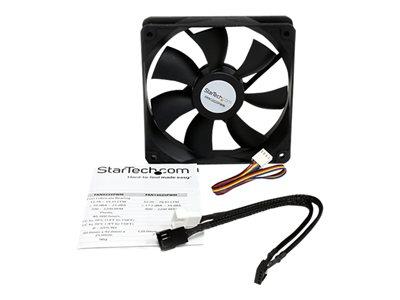

Add a variable speed, PWM-controlled cooling fan to your computer case. The FAN12025PWM 120mm PWM case fan adds an efficient air cooling solution to computer cases or other enclosures to help ensure optimal performance from internal components.
With Pulse Width Modulation (PWM) technology, the fan speed can be dynamically controlled by the motherboard, so the fan runs at a speed that suits the operating conditions - lowering power consumption and fan noise when the system is idle, and delivering maximum cooling under full load conditions.
Specifications
Summary
- Product Description
- StarTech.com 120x25mm Computer Case Fan with PWM - Pulse Width Modulation Connector - computer cooling Fan - pwm Fan - 120mm Fan (FAN12025PWM) - case fan
- Product Type
- Case fan
- Package Content
- Y-Split cable
- Colour
- Black
- Fan Diameter
- 120 mm
- Fan Height
- 25 mm
- Fan Bearing
- Ever Lubricate bearing
- Rotation Speed
- 800-2200 rpm
- Air Flow
- 33.2-78.4 cfm
- Noise Level
- 17.2 - 39 dBA
- Power Connector
- 4-pin fan connector, 4 pin Molex connector
- Dimensions (WxDxH)
- 12 cm x 12 cm x 2.5 cm
- Weight
- 118 g
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Product Type
- Case fan
- Package Content
- Y-Split cable
- Width
- 12 cm
- Depth
- 12 cm
- Height
- 2.5 cm
- Weight
- 118 g
- Colour
- Black
Heatsink & Fan
- Fan Diameter
- 120 mm
- Fan Height
- 25 mm
- Fan Bearing
- Ever Lubricate bearing
- Rotation Speed
- 800-2200 rpm
- Air Flow
- 33.2-78.4 cfm
- Noise Level
- 17.2 - 39 dBA
- Power Connector
- 4-pin fan connector, 4 pin Molex connector
Miscellaneous
- Compliant Standards
- RoHS
Manufacturer Warranty
- Service & Support
- Limited warranty: - 2 years
Environmental Parameters
- Min Operating Temperature
- -10 °C
- Max Operating Temperature
- 70 °C
