Description
Add an R422/485 serial port to your laptop or desktop computer through USB.

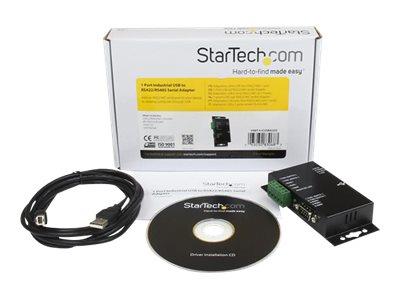

The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere.
-
Reliable connectivity
This serial adapter utilizes wired connectivity technology and supports both RS-422 and RS-485 data link protocols, ensuring stable communication for various applications. -
Versatile installation
The adapter features a convenient form factor that allows for external installation, making it easier to integrate into existing setups without requiring additional hardware. -
Durable design
Constructed with a metal casing, this adapter is designed for durability, allowing it to withstand the rigors of industrial use while maintaining performance. -
User-friendly configuration
The USB-powered feature simplifies setup, providing a hassle-free user experience while eliminating the need for external power sources.
Specifications
Summary
- Product Description
- StarTech.com 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation (ICUSB422IS) - serial adapter - USB
- Device Type
- Serial adapter
- Form Factor
- External
- Interface (Bus) Type
- USB
- Dimensions (WxDxH)
- 5.4 cm x 2.3 cm x 9.3 cm
- Weight
- 300 g
- Data Link Protocol
- RS-422, RS-485
- Data Transfer Rate
- 921.6 Kbps
- Colour
- Black
- System Requirements
- Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.0 or later, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Linux LTS versions only, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Serial adapter
- Form Factor
- External
- Interface (Bus) Type
- USB
Networking
- Connectivity Technology
- Wired
- Data Link Protocol
- RS-422, RS-485
- Data Transfer Rate
- 921.6 Kbps
- Features
- USB powered
Expansion / Connectivity
- Interfaces
- 1 x RS-422/485 - 9 pin D-Sub (DB-9) , 1 x RS-422/485 - terminal block
- Connections
- 1 x USB - 4 pin USB Type B
Miscellaneous
- Cables Included
- 1 x USB cable (external) - 1.8 m
- Compliant Standards
- FCC, RoHS
- Colour
- Black
Software / System Requirements
- Software Included
- Drivers & Utilities
- OS Required
- Microsoft Windows 98 Second Edition, Microsoft Windows XP Embedded, Microsoft Windows Server 2003, Microsoft Windows CE 5.0, Microsoft Windows CE 4.2, Microsoft Windows Server 2008 R2, Microsoft Windows CE 6.0, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Linux Kernel 3.0 or later, Microsoft Windows Server 2016, Microsoft Windows 2000/XP/Vista/7/8/8.1/10, Microsoft Windows Server 2019, Linux LTS versions only, Apple MacOS X 10.6 - 10.15, Apple macOS 11.0, Apple macOS 12.0, Microsoft Windows 11, Apple macOS 13.0
Dimensions & Weight
- Width
- 5.4 cm
- Depth
- 2.3 cm
- Height
- 9.3 cm
- Weight
- 300 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 55 °C
- Humidity Range Operating
- 5 - 95%
