Description
A sturdy, water-resistant and dust-resistant, anti-glare touchscreen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts productivity.
-
DisplayPort connection
DisplayPort is a digital link from PC to monitor without any conversion. With higher capabilities than DVI standard, it is fully capable to support up to 15 metre cables and 10.8 Gbps/sec data transfer. With this high performance and zero latency, you get the fastest imaging and refresh rates- making DisplayPort the best choice for not only general office or home use, but also for the more demanding gaming and films, video editing and more. It also keeps interoperability in mind via the use of various adapters. -
SmartContrast
SmartContrast is a Philips technology that analyses the contents you are displaying, automatically adjusting colours and controlling backlight intensity to dynamically enhance contrast for the best digital images and videos or when playing games where dark hues are displayed. When Economy mode is selected, contrast is adjusted and backlighting fine-tuned for just-right display of everyday office applications and lower power consumption. -
Flicker-Free technology
Due to the way brightness is controlled on LED-backlit screens, some users experience flicker on their screen which causes eye fatigue. Philips Flicker-Free technology applies a new solution to regulate brightness and reduce flicker for more comfortable viewing. -
LowBlue Mode
Studies have shown that just as ultra-violet rays can cause eye damage, shortwave-length blue light rays from LED displays can cause eye damage and affect vision over time. Developed for wellbeing, the Philips LowBlue Mode setting uses a smart software technology to reduce harmful shortwave blue light. -
SmoothTouch
This Philips display uses Projected capacitive 10-point touch technology for fluid response. You can fully utilise the new capabilities of touch-based applications and bring your older applications to life. Touch-type with 10 fingers or play exciting interactive games with your friends. Collaborate with colleagues interactively at work or school environment and increase your productivity and efficiency. -
SmartStand
Philips SmartStand allows for flexible adjustment of the screen. Its Z-type structure with smooth tilt, height adjustment and folding capabilities enables you to use it in various ergonomic positions. You can set the stand in upright position for better touch control or recline it backwards, making it easy for you to draw or annotate. It even allows you to put the screen almost flat on the table for some applications when required. -
HDMI Ready
An HDMI-ready device has all the required hardware to accept High-Definition Multimedia Interface (HDMI) input. An HDMI cable enables high-quality digital video and audio to be transmitted over a single cable from a PC or any number of AV sources (including set-top boxes, DVD players, A/V receivers and video cameras). -
Water- and dust-resistant
For less-than-perfect environments, you need a monitor that's designed to hold up to the splashes of water and dust that happen in the everyday world. Ingress Protection (IP) ratings defined in international standard IEC/EN 60529, are used to define levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies and moisture. This Philips display meets the international IP rating for water and dust resistance. It will hold up to the water splashes and dust that happen in the everyday world.
Specifications
Summary
- Product Description

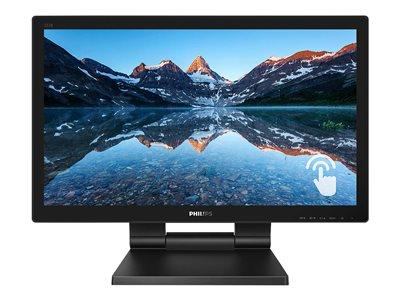

- Philips B Line 222B9T - LED monitor - Full HD (1080p) - 22"
- Device Type
- LED-backlit LCD monitor - 22" - touchscreen
- Energy Class
- Class D
- Energy Consumption per Year
- 29 kWh
- Power Consumption (On mode)
- 12.7 W
- Features
- Stylus, USB 3.1 hub
- Panel Type
- TN
- Aspect Ratio
- 16:9
- Native Resolution
- Full HD (1080p) 1920 x 1080 at 60 Hz
- Pixel Pitch
- 0.248 mm
- Brightness
- 250 cd/m²
- Contrast Ratio
- 1000:1 / 50000000:1 (dynamic)
- Response Time
- 1 ms (grey-to-grey)
- Colour Support
- 16.7 million colours
- Colour Gamut
- 72% NTSC (CIE 1931)
- Input Connectors
- HDMI, DVI-D, VGA, DisplayPort
- Display Position Adjustments
- Tilt
- Screen Coating
- Anti-glare, 3H Hard Coating, Haze 25%
- Voltage
- AC 120/230 V (50/60 Hz)
- Colour
- Textured black
- Dimensions (WxDxH) - with stand
- 51.5 cm x 22.7 cm x 39.4 cm
- Weight
- 7.46 kg
- Environmental Standards
- TCO Certified Displays 8, TCO Certified Edge Displays, ENERGY STAR Qualified
- Compliant Standards
- Plug and Play, FCC Class B certified, TUV GS, ICES-003, SEMKO, TUV Ergo, DDC/CI, RoHS, WEEE, EPA, CU-EAC
Detailed Specification
General
- Display Type
- LED-backlit LCD monitor / TFT active matrix
- Energy Class
- Class D
- Energy Consumption per Year
- 29 kWh
- Diagonal Size
- 22"
- Viewable Size
- 21.5"
- Built-in Devices
- USB 3.1 hub
- Panel Type
- TN
- Aspect Ratio
- 16:9
- Native Resolution
- Full HD (1080p) 1920 x 1080 at 60 Hz
- Pixel Pitch
- 0.248 mm
- Pixel Per Inch
- 102
- Brightness
- 250 cd/m²
- Contrast Ratio
- 1000:1 / 50000000:1 (dynamic)
- Colour Support
- 16.7 million colours
- Colour Gamut
- 72% NTSC (CIE 1931)
- Response Time
- 1 ms (grey-to-grey)
- Vertical Refresh Rate
- 48 - 75 Hz
- Horizontal Refresh Rate
- 30 - 85 kHz
- Horizontal Viewing Angle
- 170
- Vertical Viewing Angle
- 160
- Screen Coating
- Anti-glare, 3H Hard Coating, Haze 25%
- Backlight Technology
- WLED
- OSD Languages
- Multilingual
- Features
- Sync on Green, Lead-free, SmartContrast, SmartImage, Low Blue Light Mode, Flicker Free technology, BFR/PVC-free, Mercury free, EasyRead, sRGB Mode
- Colour
- Textured black
- Dimensions (WxDxH)
- 51.5 cm x 22.7 cm x 39.4 cm - with stand
- Weight
- 7.46 kg
Audio
- Type
- Speakers - stereo
- Output Power / Channel
- 2 Watt
Input
- Type
- Stylus - touchscreen
Connectivity
- Interfaces
- VGA , DVI-D (HDCP) , DisplayPort , HDMI , USB 3.1 , USB 3.1 (fast charging) , USB upstream , Audio line-in , Headphones
Mechanical
- Display Position Adjustments
- Tilt
- Tilt Angle
- -5/+90
- VESA Mounting Interface
- 100 x 100 mm
Miscellaneous
- Features
- SmartStand
- Included Accessories
- Stylus (black)
- Cables Included
- 1 x VGA cable , 1 x HDMI cable , 1 x USB-A to USB-B cable , 1 x audio cable
- MTBF
- 70,000 hour(s)
- Compliant Standards
- Plug and Play, FCC Class B certified, TUV GS, ICES-003, SEMKO, TUV Ergo, DDC/CI, RoHS, WEEE, EPA, CU-EAC
Power
- Input Voltage
- AC 120/230 V (50/60 Hz)
- Power Consumption (On mode)
- 12.7 W
- Power Consumption SDR (On mode)
- 12.7 kWh/1000h
- Power Consumption (Typical)
- 15 Watt
- Power Consumption Stand by
- 0.5 Watt
- Power Consumption (Off Mode)
- 0.3 Watt
Software / System Requirements
- Included Software
- Philips SmartControl
Dimensions & Weight
- Dimensions & Weight Details
- With stand (highest position) - width: 51.5 cm - depth: 22.7 cm - height: 39.4 cm - weight: 7.46 kg , Without stand - width: 51.5 cm - depth: 4.5 cm - height: 31.7 cm - weight: 4.17 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 57.5 cm
- Shipping Depth
- 16.1 cm
- Shipping Height
- 42 cm
- Shipping Weight
- 9.97 kg
Sustainability Information
- TCO Certified
- TCO Certified Displays 8, TCO Certified Edge Displays
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 7.0
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 20 - 80%
