Super-energy-efficient design
Using the new energy saving design with a super-efficient power supply, this monitor achieves a higher energy class, while giving excellent performance. The power-efficient feature uses new LED backlight technology which maintains brightness and colour using significantly less energy; this makes a big difference when using many monitors or even just one.
Specifications
Summary
- Product Description

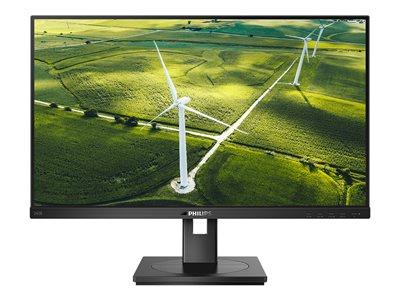

- Philips B Line 242B1G - LED monitor - Full HD (1080p) - 24"
- Device Type
- LED-backlit LCD monitor - 24"
- Energy Class
- Class C
- Power Consumption (On mode)
- 12.5 W
- Features
- USB 3.2 hub
- Panel Type
- IPS
- Aspect Ratio
- 16:9
- Native Resolution
- Full HD (1080p) 1920 x 1080 at 75 Hz
- Pixel Pitch
- 0.2745 mm
- Brightness
- 250 cd/m²
- Contrast Ratio
- 1000:1 / 50000000:1 (dynamic)
- Response Time
- 4 ms (grey-to-grey)
- Colour Support
- 16.7 million colours
- Colour Gamut
- 102% sRGB (CIE 1931), 78% NTSC (CIE 1976)
- Input Connectors
- HDMI, DVI-D, VGA, DisplayPort
- Display Position Adjustments
- Height, pivot (rotation), swivel, tilt
- Screen Coating
- Anti-glare, 3H Hard Coating, Haze 25%
- Voltage
- AC 120/230 V (50/60 Hz)
- Colour
- Black texture
- Dimensions (WxDxH) - with stand
- 54 cm x 20.5 cm x 50.1 cm
- Weight
- 4.92 kg
- Environmental Standards
- TCO Certified Displays 8, TCO Certified Edge Displays, ENERGY STAR Qualified
- Compliant Standards
- FCC Class B certified, TUV GS, ICES-003, SEMKO, CB, CCC, TUV Ergo, DDC/CI, RoHS, Lead-Free, CECP, CEL, CU-EAC, BFR-free, Ukraine, PVC-free, Mercury-free, TUV Eye Comfort certified
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Display Type
- LED-backlit LCD monitor / TFT active matrix
- Energy Class
- Class C
- Diagonal Size
- 24"
- Viewable Size
- 23.8"
- Built-in Devices
- USB 3.2 hub
- Panel Type
- IPS
- Aspect Ratio
- 16:9
- Native Resolution
- Full HD (1080p) 1920 x 1080 at 75 Hz
- Pixel Pitch
- 0.2745 mm
- Pixel Per Inch
- 93
- Brightness
- 250 cd/m²
- Contrast Ratio
- 1000:1 / 50000000:1 (dynamic)
- Colour Support
- 16.7 million colours
- Colour Gamut
- 102% sRGB (CIE 1931), 78% NTSC (CIE 1976)
- Response Time
- 4 ms (grey-to-grey)
- Vertical Refresh Rate
- 48 - 75 Hz
- Horizontal Refresh Rate
- 30 - 85 kHz
- Horizontal Viewing Angle
- 178
- Vertical Viewing Angle
- 178
- Screen Coating
- Anti-glare, 3H Hard Coating, Haze 25%
- Backlight Technology
- WLED
- OSD Languages
- Multilingual
- Features
- Sync on Green, PowerSensor, SmartImage, Low Blue Light Mode, Flicker Free technology, Adaptive-Sync technology, LightSensor, EasyRead, sRGB Mode
- Colour
- Black texture
- Dimensions (WxDxH)
- 54 cm x 20.5 cm x 50.1 cm - with stand
- Weight
- 4.92 kg
Audio
- Type
- Speakers - stereo
- Output Power / Channel
- 2 Watt
Connectivity
- Interfaces
- VGA , DVI-D (HDCP 1.4) , DisplayPort 1.2 (HDCP 1.4) , HDMI (HDCP 1.4) , USB upstream (Type B) , 3 x USB 3.2 downstream , USB 3.2 downstream (fast charging) , Audio line-in , Headphones
Mechanical
- Display Position Adjustments
- Height, pivot (rotation), swivel, tilt
- Tilt Angle
- -5/+35
- Swivel Angle
- 360
- Rotation Angle
- 180
- Height Adjustment
- 150 mm
- VESA Mounting Interface
- 100 x 100 mm
Miscellaneous
- Features
- Security lock slot (cable lock sold separately)
- Cables Included
- 1 x HDMI cable , 1 x DisplayPort cable
- MTBF
- 70,000 hour(s)
- Compliant Standards
- FCC Class B certified, TUV GS, ICES-003, SEMKO, CB, CCC, TUV Ergo, DDC/CI, RoHS, Lead-Free, CECP, CEL, CU-EAC, BFR-free, Ukraine, PVC-free, Mercury-free, TUV Eye Comfort certified
- Security Slot Type
- Kensington security slot
Power
- Input Voltage
- AC 120/230 V (50/60 Hz)
- Power Consumption (On mode)
- 12.5 W
- Power Consumption SDR (On mode)
- 12.5 kWh/1000h
- Power Consumption (Typical)
- 12.8 Watt
- Power Consumption Stand by
- 0.35 Watt
- Power Consumption (Off Mode)
- 0 Watt
- On / Off Switch
- Yes
Software / System Requirements
- Included Software
- Philips SmartControl
Dimensions & Weight
- Dimensions & Weight Details
- With stand (highest position) - width: 54 cm - depth: 20.5 cm - height: 50.1 cm - weight: 4.92 kg , Without stand - width: 54 cm - depth: 4.7 cm - height: 32.3 cm - weight: 3.32 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 73 cm
- Shipping Depth
- 13.9 cm
- Shipping Height
- 45 cm
- Shipping Weight
- 7.61 kg
Environmental Standards
- TCO Certified
- TCO Certified Displays 8, TCO Certified Edge Displays
- ENERGY STAR Certified
- Yes
- ENERGY STAR Version
- 8.0
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 20 - 80%
