Description
The NETGEAR Nighthawk AX5 5-Stream AX4200 Wi-Fi Router provides speeds up to 4.2Gbps so you can connect, stream, and download faster to newer mobile devices.
Delivering four times better performance than AC Wi-Fi, Wi-Fi 6 allows more devices to connect and stream simultaneously, without impacting speed or reliability, by efficiently packing and scheduling data.
With innovative technologies, such as Orthogonal Frequency-Division Multiple-Access (OFDMA) and intelligent scheduling, Wi-Fi 6 delivers a huge boost in speed and total capacity.
Specifications
Summary
- Product Description

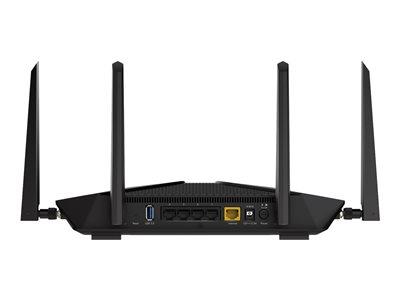

- NETGEAR Nighthawk AX5 RAX43 - wireless router - Wi-Fi 6 - desktop
- Device Type
- Wireless router - 4-port switch (integrated)
- Enclosure Type
- Desktop
- WAN Ports Qty
- 1
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Frequency Band
- 2.4 GHz / 5 GHz
- Capacity
- Streams: 5
- Intelligent Assistant
- Google Assistant, Alexa
- Features
- NAT support, VPN support, Stateful Packet Inspection (SPI), DFS support, firmware upgradable, Beamforming+, guest access, NETGEAR Armor, Voice Control, 4K UHD video streaming, 160MHz bandwidth support
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
- Dimensions (WxDxH)
- 29.58 cm x 20.6 cm x 5.72 cm
- Weight
- 566 g
- System Requirements
- UNIX, Apple MacOS, Linux, Microsoft Windows 2000/XP/Vista/7/8/10
- Localisation
- United States
- Manufacturer Warranty
- 1-year warranty
Detailed Specification
General
- Device Type
- Wireless router - 4-port switch (integrated)
- Enclosure Type
- Desktop
- Connectivity Technology
- Wireless, wired
- Data Link Protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6)
- Frequency Band
- 2.4 GHz / 5 GHz
- Capacity
- Streams: 5
- Encryption Algorithm
- WPA, WPA2, 128-bit AES, WPA2-PSK, WPA3
- Wi-Fi Rating
- AX4200
- Features
- NAT support, VPN support, Stateful Packet Inspection (SPI), DFS support, firmware upgradable, Beamforming+, guest access, NETGEAR Armor, Voice Control, 4K UHD video streaming, 160MHz bandwidth support
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, Wi-Fi CERTIFIED 6
- Processor
- 1.5 GHz
- RAM
- 512 MB
- Flash Memory
- 256 MB
Line Properties
- Line Coding Format
- 256 QAM, 1024 QAM, OFDMA
Internet of Things (IoT)
- Intelligent Assistant
- Google Assistant, Alexa
Expansion / Connectivity
- Interfaces
- WAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , USB 3.0: 1 x 9 pin USB Type A
Aerial
- Aerial
- External
- Antenna Qty
- 4
Power
- Power Device
- External power adapter
Miscellaneous
- Cables Included
- 1 x network cable
- Localisation
- United States
Software / System Requirements
- OS Required
- UNIX, Apple MacOS, Linux, Microsoft Windows 2000/XP/Vista/7/8/10
Dimensions & Weight
- Width
- 29.58 cm
- Depth
- 20.6 cm
- Height
- 5.72 cm
- Weight
- 566 g
Manufacturer Warranty
- Service & Support
- Limited warranty - 1 year , Technical support - 90 days
