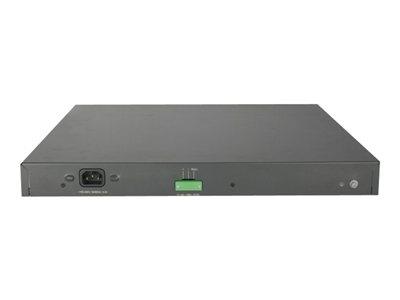

HPE HP 3100-24-PoE v2 EI 24 Port Managed Rack Mountable Switch

Review this product
Quicklinx: 9KLNWS00 Mfr#: JD313B
Type: Fast Ethernet
Ports: 24
Managed: Yes
POE: PoE
Ordered upon request
£1,138.78 ex VAT
£1,366.53 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

The HPE 3100 EI Switch Series enhances security by providing reliable fully, managed Fast Ethernet Layer 2 switches ideal for the access layer of medium and large enterprises. Features include enterprise class quality of service (QoS) and security features including rate limiting, QinQ, ACLs, a 24-port PoE model, and improved reliability with backup redundancy. The 3100 EI Switch Series can be managed with the optional HPE Intelligent Management Center (IMC) Software Platform for a single view of your entire network.

  • Reliable Fast Ethernet Access Layer Switches

    The HPE 3100 EI Switch Series enhances security by providing reliable fully managed Fast Ethernet Layer 2 switches ideal for the access layer of medium and large enterprises.Series includes 8-, 16-, 24- and 48-port models with Gigabit Ethernet uplinks with a 24-port PoE model for support of IP phones, wireless APs and video cameras.Hardware-based wire speed access control lists (ACLs) help provide high levels of security and ease of administration without impacting network performance with a feature-rich TCAM-based ACL implementation.External redundant power supply provides improved reliability.
  • Enhanced Quality of Service (QoS) and Service Control

    The HPE 3100 EI Switch Series provides traffic prioritization with supported congestion actions including strict priority (SP), weighted round robin (WRR), SP+WRR and HQ+WRR queuing.Broadcast control cuts down on unwanted network broadcast traffic. Advanced QoS classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information and applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis.Multiple user authentication methods include MAC Authentication, IEEE 802.1X and Web for greater, policy-driven security.Enhanced security features include port isolation, STP BPDU port protection and root guard. Radius/HWTACAS eases switch management security administration by using a password authentication server.
  • Single View of the Network

    The HPE 3100 EI Switch Series can be seamlessly managed with the optional HPE Intelligent Management Center (IMC) Software Platform to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.

Specifications

Summary

Product Description
HPE 3100-24-PoE v2 EI Switch - switch - 24 ports - Managed - rack-mountable
Device Type
Switch - 24 ports - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Fast Ethernet
Ports
24 x 10/100 (PoE) + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)
PoE
Performance
Throughput: up to 6.5 Mpps , Routing/switching capacity: 8.8 Gbps
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, CLI
Features
Flow control, DHCP support, power over Ethernet (PoE), ARP support, VLAN support, IGMP snooping, Weighted Round Robin (WRR) queuing, IPv6 support, Virtual Cable Test (VCT) technology, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Device Link Detection Protocol (DLDP) support, STP Root Guard, LLDP support, Port Security, IP-MAC binding, dynamic ARP protection, DHCP protection, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Strict Priority Queuing (SPQ), port isolation
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP)
Power
AC 120/230 V (50/60 Hz)
Dimensions (WxDxH)
44 cm x 42 cm x 4.36 cm
Weight
6.5 kg
Manufacturer Warranty
Limited lifetime warranty


Detail

General

Device Type
Switch - 24 ports - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Fast Ethernet
Ports
24 x 10/100 (PoE) + 2 x combo Gigabit SFP
Power Over Ethernet (PoE)
PoE
Performance
Throughput: up to 6.5 Mpps , Routing/switching capacity: 8.8 Gbps
Max Units In A Stack
16
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, CLI
Encryption Algorithm
SSL
Authentication Method
RADIUS, Secure Shell v.2 (SSH2)
Features
Flow control, DHCP support, power over Ethernet (PoE), ARP support, VLAN support, IGMP snooping, Weighted Round Robin (WRR) queuing, IPv6 support, Virtual Cable Test (VCT) technology, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Device Link Detection Protocol (DLDP) support, STP Root Guard, LLDP support, Port Security, IP-MAC binding, dynamic ARP protection, DHCP protection, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Strict Priority Queuing (SPQ), port isolation
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP)
RAM
128 MB SDRAM
Flash Memory
16 MB

Expansion / Connectivity

Interfaces
24 x 100Base-TX RJ-45 PoE , 1 x console RJ-45 management , 2 x 1000Base-TX RJ-45 , 2 x SFP (mini-GBIC)

Power

Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)

Miscellaneous

Rack Mounting Kit
Included
Compliant Standards
CISPR 22 Class A, GOST, EN 61000-3-2, NOM, VCCI Class A ITE, EN 61000-3-3, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN300-386, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, FCC Part 15 B Class A, CAN/CSA C22.2 No. 60950-1, ANSI C63.4, EN 60825-2

Dimensions & Weight

Width
44 cm
Depth
42 cm
Height
4.36 cm
Weight
6.5 kg

Manufacturer Warranty

Service & Support
Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 95% (non-condensing)
