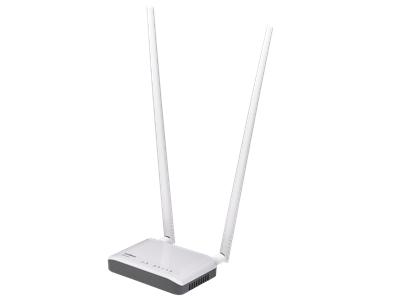

Edimax BR-6428NCN300 Multi-Function Wi-Fi Router/AP/RE

Review this product
Quicklinx: 9TT9WS00 Mfr#: BR-6428NC
Type: Wireless router
Connection Type: DSL (Cable)
Standards: Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g + 1 more
Speed: 300Mbps
Rackmount or External: External
  • IEEE 802.11n
Ordered upon request
£25.89 ex VAT
£31.06 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

N300 Multi-Function Wi-Fi Router Three Essential Networking Tools in One

3-in-1 Router, Access Point, and Range Extender
Smart iQ Setup for smart, automatic and quick installation with no CD required
9dBi High Gain Antenna: Enhances wireless range and coverage
Guest network: Provides connectivity while isolating guests from your primary network.
Wi-Fi Protected Setup (WPS) Button: For easy one-click setup

The BR-6428nC is a 300Mbps high-speed multi-function Wi-Fi solution which supports IEEE 802.11b/g/n standards and provides significantly improved coverage with the 9dBi antenna. Operating as a router, access point or range extender, the BR-6428nC's flexibility meets the demands of any networking applications. The smart iQ Setup wizard makes setup and installation as easy as a few clicks. Impressive performance and a competitive price make the BR-6428nC a cost-effective solution for home or small office environments.

3-in-1 Router, Access Point and Range Extender
The BR-6428nC can work as router, access point or range extender. Just configure the mode you need for your network environment using the smart iQ Setup wizard and enjoy surfing the web.

Smart iQ Setup
Features iQ Setup for smart, automatic and quick installation with no CD required.

9dBi High Gain Antenna
Employs two 9dBi high gain antennas to enhance wireless range and coverage, providing powerful penetration through walls and floors.

Guest Network*
Supports a guest network to provide connectivity while isolating guests from your primary network.
*Router mode only

Green Technology
Designed with the latest green technology, the BR-6428nC uses 30% less power compared to other standard 300Mbps routers.

Wireless Internet Service Provider (WISP) Connection Mode
With WISP support, the BR-6428nC is able to share an Internet connection from a wireless ISP access point and convert it into a wired or wireless network for multiple users in your home or office.

Wi-Fi Protected Setup (WPS) Button
The BR-6428nC has a one-click Wi-Fi Protected Setup (WPS) button to help you set up and activate a secure wireless network in a snap.

Specifications

Summary

Product Description
Edimax BR-6428nC - wireless router - 802.11b/g/n - desktop
Device Type
Wireless router - 4-port switch (integrated)
Enclosure Type
Desktop
Data Link Protocol
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Data Transfer Rate
300 Mbps
Network / Transport Protocol
PPTP, L2TP, IPSec, PPPoE, DHCP, DDNS
Routing Protocol
Static IP routing
Features
Firewall protection, NAT support, NAPT support, DoS attack prevention, dynamic DNS server, MAC address filtering, VPN passthrough, URL filtering, IP address filtering, firmware upgradable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), virtual server support, Wi-Fi Protected Setup (WPS), dynamic IP mode
Compliant Standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi Protected Setup, UPnP
Power
DC 5 V 1 A
Dimensions (WxDxH)
13.5 cm x 11 cm x 2.8 cm
Weight
234 g


Detail

General

Device Type
Wireless router - 4-port switch (integrated)
Enclosure Type
Desktop
Connectivity Technology
Wireless, wired
Data Link Protocol
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Data Transfer Rate
300 Mbps
Network / Transport Protocol
PPTP, L2TP, IPSec, PPPoE, DHCP, DDNS
Routing Protocol
Static IP routing
Encryption Algorithm
128-bit WEP, 64-bit WEP, WPA, WPA2, WPA-PSK, WPA2-PSK
Features
Firewall protection, NAT support, NAPT support, DoS attack prevention, dynamic DNS server, MAC address filtering, VPN passthrough, URL filtering, IP address filtering, firmware upgradable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), virtual server support, Wi-Fi Protected Setup (WPS), dynamic IP mode
Compliant Standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi Protected Setup, UPnP, FCC
RAM
16 MB SDRAM
Flash Memory
4 MB
Status Indicators
Power, link/activity

Expansion / Connectivity

Interfaces
WAN: 1 x 10Base-T/100Base-TX - RJ-45 , LAN: 4 x 10Base-T/100Base-TX - RJ-45

Aerial

Aerial
External integrated
Antenna Qty
2
Gain Level
9 dBi

Power

Power Device
External power adapter
Voltage Required
DC 5 V
Electric Current Required
1 A

Miscellaneous

Cables Included
1 x network cable

Dimensions & Weight

Width
13.5 cm
Depth
11 cm
Height
2.8 cm
Weight
234 g

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90% (non-condensing)
