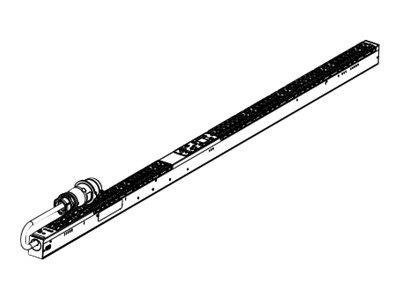

Eaton ePDU MI 0U (309 32A 3P) 30XC13:12XC19

Eaton ePDU MI 0U (309 32A 3P) 30XC13:12XC19

Review this product
Quicklinx: CBDRWS00 Mfr#: EMIB34
Ordered upon request
£931.49 ex VAT
£1,117.78 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

Eaton G3 Metered Input ePDUs provide a best-in-class design featuring billing grade accuracy monitoring of input and branch circuits on a local LCD pixel display or over a network connection. The high accuracy meter will measure current, voltage, power and energy for load balancing, capacity planning, efficiency monitoring and energy usage reporting. Designed for IT and data center applications means high reliability and a robust design made for high operating temperatures found in containment or networking closets.

Specifications

Summary

Product Description
Eaton ePDU G3 Metered Input - power distribution unit
Device Type
Power distribution unit - rack-mountable
Rack Size
0U
Input Wiring
3-phase
Input Connectors
1 x power IEC 60309 32A
Output connectors
30 x power IEC 60320 C13 , 12 x power IEC 60320 C19
Networking
Ethernet 10/100, RS-232
Dimensions (WxDxH)
5.2 cm x 6.5 cm x 182.9 cm


Detail

General

Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
0U
Colour
Black

Power Device

Input Voltage Range
AC 200 - 240 V
Input Wiring
3-phase
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60309 32A
Power Output Connectors Details
30 x power IEC 60320 C13 , 12 x power IEC 60320 C19
Circuit Protection
Circuit breaker

Networking

Remote Management Interface
Ethernet 10/100, RS-232

Expansion / Connectivity

Interfaces
1 x management (Ethernet) - RJ-45 , 1 x management (RS-232) - RJ-45 , 1 x cascading - RJ-45 , 1 x USB - 4 pin USB Type A

Miscellaneous

Cables Included
1 x power cable - integrated - 3 m
Features
LCD display, voltage monitoring, current meter, vertical orientation, firmware upgradable
Compliant Standards
CB

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
60 °C

Dimensions & Weight

Width
5.2 cm
Depth
6.5 cm
Height
182.9 cm
