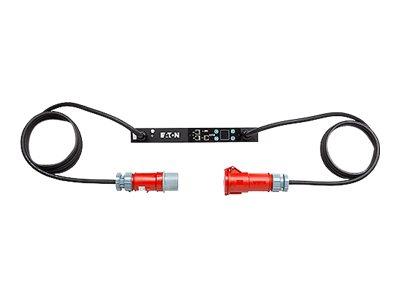

Eaton ePDU In-Line Metered - IEC60309 32A 3P Output 1XIEC60309

Eaton ePDU In-Line Metered - IEC60309 32A 3P Output 1XIEC60309

Review this product
Quicklinx: CBDWWS00 Mfr#: EILB15
Ordered upon request
£284.61 ex VAT
£341.53 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

New ePDU G3 In Line Metered Input models upgrade existing basic installation to include, including ±1% billing grade accuracy, an advanced LCD pixel display, a hotswap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address

  • Operate in extreme environments

    The ePDU G3 can be used in 60°C environments and containment solutions.
  • True IEC Class 1 billing grade accuracy

    Monitor your energy consumption (kWhr) plus V, W and A extremely accurately. Monitor ePDU and branch circuit.
  • Prevent accidental disconnect

    Integrated IEC outlet grip plug retention. Prevents accidental disconnect from being bumped or from vibration.
  • Simplify load balancing

    Color coding and laser engraved chassis easily link breakers to outlet groups.
  • Reduce the IP ports needed to monitor your power

    Daisy-chain up to 4 ePDUs to reduce the cost of networking. Reduces network infrastructure cost by 75%.
  • Centrally monitor and manage

    Easily monitor the status of your power distribution.
  • Easily access hot swappable IT equipment

    The ePDU doesn't protrude into the rack and is low profile even at the breakers.

Specifications

Summary

Product Description
Eaton ePDU G3 In-Line Monitored - power monitoring unit - 22 kW
Device Type
Power monitoring unit - rack-mountable
Rack Size
0U
Input Wiring
3-phase
Input Voltage
AC 400 V
Output Voltage
AC 400 V
Power Capacity
22 kW
Input Connectors
1 x power IEC 60309 32A
Output connectors
1 x power IEC 60309 32A
Networking
Ethernet, RS-232
Dimensions (WxDxH)
44.3 cm x 5.3 cm x 5.2 cm


Detail

General

Device Type
Power monitoring unit - rack-mountable
Height (Rack Units)
0U
Colour
Black

Power Device

Input Voltage
AC 400 V
Input Voltage Range
AC 346 - 415 V
Frequency Provided
50/60 Hz
Input Wiring
3-phase
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60309 32A
Power Output Connectors Details
1 x power IEC 60309 32A
Output Voltage
AC 400 V 50/60 Hz
Max Electric Current
32 A
Power Capacity
22 kW

Networking

Remote Management Interface
Ethernet, RS-232

Expansion / Connectivity

Interfaces
1 x monitoring , 1 x management (Ethernet) , 1 x management (RS-232)

Miscellaneous

Cables Included
2 x power cable - integrated - 3 m
Features
LED display, voltage monitoring, current meter
Compliant Standards
CB

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
60 °C

Dimensions & Weight

Width
44.3 cm
Depth
5.3 cm
Height
5.2 cm
