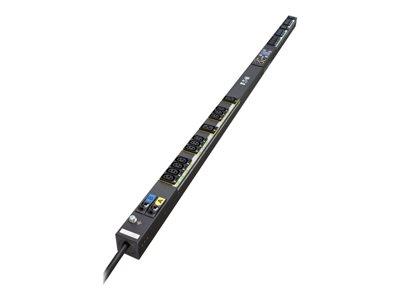

Eaton ePDU MA 0U (309 32A 1P) 20XC13:4XC19

Eaton ePDU MA 0U (309 32A 1P) 20XC13:4XC19

Review this product
Quicklinx: CBD4WS00 Mfr#: EMAB05
Stock Status: In Stock
19 in stock
£788.62 ex VAT
£946.34 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

The Eaton ePDU third generation (G3) Managed models build on Eaton’s existing state-of-the-art ePDU G3 technology while offering new capabilities for rack power distribution in data centers and information technology (IT) applications. You now have comprehensive management and monitoring capabilities down to the outlet level. This new level of precision saves time, saves money and avoids risk, making the ePDU G3 Managed the gold standard in power management.

  • Grouped reboot for A and B feed

    When connecting multiple source input servers to an A and B feed power source, the daisy-chain capability allows you to group power supplies across the ePDU. As a result, all the power supplies are controlled with a single action, which outlet switching saves time rebooting servers with two to six power supplies.
  • Turn off unused outlets

    Secure and protect your environment by easily turning off unused outlets. Avoid overloading your system from others plugging in unauthorized devices. Also consider closing access with an outlet cap.
  • Outlet grip functionality

    Eaton’s patent-pending IEC outlet grip secures plugs in place with a lever-actuated grip that’s integrated into each outlet. Once the levers click into the grip position, the plugs are secured from accidental disconnect due to bumps or vibrations without the need for special power cords.
  • Advanced LCD pixel display with hot-swap capability

    Eaton’s new hot-swap eNMC (ePDU Network Management and Control) module can be replaced without the need to power down your rack. Increase uptime while enhancing serviceability and saving on unnecessary service calls. The menu-driven pixel display allows for easy setup and troubleshooting.
  • Daisy chain four units from one IP address

    Eaton’s new patented daisy-chain capability allows up to four ePDUs to share the same network connection and IP address. Unlike competitive rack PDUs that require a dedicated IP address for best performance, Eaton technology provides a 75-percent reduction in network infrastructure costs.

Specifications

Summary

Product Description
Eaton ePDU G3 Managed - power distribution unit
Device Type
Power distribution unit - rack-mountable
Rack Size
0U
Input Connectors
1 x power IEC 60309 32A
Output connectors
20 x power IEC 60320 C13 , 4 x power IEC 60320 C19
Networking
Ethernet 10/100, RS-232
Dimensions (WxDxH)
5.2 cm x 5.3 cm x 160.4 cm


Detail

General

Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
0U

Power Device

Input Connectors
1 x power IEC 60309 32A
Power Output Connectors Details
20 x power IEC 60320 C13 , 4 x power IEC 60320 C19
Circuit Protection
Circuit breaker

Networking

Remote Management Interface
Ethernet 10/100, RS-232

Expansion / Connectivity

Interfaces
1 x management (Ethernet) - RJ-45 , 1 x management (RS-232) - RJ-45 , 1 x cascading - RJ-45 , 1 x USB - 4 pin USB Type A

Miscellaneous

Cables Included
Power cable - integrated
Features
LCD display, voltage monitoring, current meter, vertical orientation, firmware upgradable

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
60 °C

Dimensions & Weight

Width
5.2 cm
Depth
5.3 cm
Height
160.4 cm
