Description

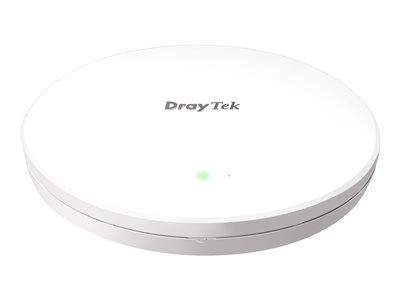

The DrayTek VigorAP 960C is a Wi-Fi 6 AX1800 access point. The new wireless standard does more than simply boost speeds for single users, it improves overall performance for busy environments. More efficient resource sharing results in greater overall performance, lower latency and less pauses in connectivity for users.
To achieve this, Wi-Fi 6 or 802.11ax brings in several new technologies (including some features used extensively by 4G and LTE networks), to enhance speeds even as many users demand content at the same time. As more devices need bandwidth more frequently, Wi-Fi 6 utilises key technologies to enable this.
Wi-Fi 6 - Fast & Efficient
Higher Capacity with OFDMA and Multi-User MIMO
Less Interference with BSS Colouring
Dual-Band Performance Boost with 2.4GHz and 5GHz Wi-Fi 6
Better Battery Life on Mobile Devices with Target Wake Time
Mesh Wireless
Mesh - Auto-Optimising & Self-Healing
Multi-SSID over Mesh
Gigabit Power-over-Ethernet
Easy Setup with the DrayTek Wireless app
Ceiling or Wall Mounted
AP & Repeater Modes
Cloud Management - VigorACS
Router-based Central Management
VigorAP-based Central Management
VigorConnect - Central Management Server
Specifications
Summary
- Product Description
- Draytek VigorAP 960C - radio access point - Wi-Fi 6
- Device Type
- Radio access point
- Form Factor
- Wall / ceiling mountable
- Localisation
- United Kingdom, Ireland
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6)
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Maximum data rate (2.4 GHz): 574 Mbps , Maximum data rate (5 GHz): 1201 Mbps
- Capacity
- Wireless clients: 256 , SSIDs total: 8
- Included Accessories
- Cover, mounting kit
- Power Over Ethernet (PoE) Supported
- PoE
- Dimensions (WxDxH)
- 17.8 cm x 17.8 cm x 3.5 cm
- Weight
- 380 g
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Radio access point
- Width
- 17.8 cm
- Depth
- 17.8 cm
- Height
- 3.5 cm
- Weight
- 380 g
- Localisation
- United Kingdom, Ireland
Networking
- Form Factor
- Wall / ceiling mountable
- Connectivity Technology
- Wireless
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, IEEE 802.11ax (Wi-Fi 6)
- Remote Management Protocol
- SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI, TR-069
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Maximum data rate (2.4 GHz): 574 Mbps , Maximum data rate (5 GHz): 1201 Mbps
- Capacity
- Wireless clients: 256 , SSIDs total: 8
- Wi-Fi Rating
- AX1800
- Features
- VLAN support, DFS support, firmware upgradable, Mesh networking, Wi-Fi Multimedia (WMM) support, DHCP server, DHCP relay, system log, band steering, VLAN management, Fast Roaming, PMK Caching, Airtime Fairness, client isolation, interference detection function, flow monitoring, MAC clone, schedule reboot, Multi-User MIMO & Beamforming technology, Orthogonal Frequency Division Multiple Access (OFDMA), self-healing network, Wireless Auto On/Off, Device Object/Group Control, Wi-Fi 6 technology, BSS Coloring, TCP support, PiFA Dual-Band Antennas
- Encryption Algorithm
- PEAP, WPA, WPA2-Enterprise, WPA3-Enterprise, WPA3-Personal, WPA2-Personal, EAP-TLS
- Authentication Method
- RADIUS, Radio Service Set ID (SSID)
- Compliant Standards
- IEEE 802.1Q, IEEE 802.3af, IEEE 802.1x, IEEE 802.11r
Aerial
- Antenna
- Internal
- Antenna Qty
- 2
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T (PoE) - RJ-45
Miscellaneous
- Included Accessories
- Cover, mounting kit
- Cables Included
- 1 x network cable
Power
- Power Over Ethernet (PoE) Supported
- PoE
- Power Device
- Power injector
- Power Consumption Operational
- 11 Watt
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
