Description

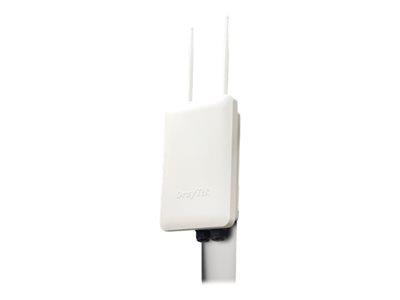

VigorAP 918R is a wireless access point designed for outdoor environments. It is ideal for providing wireless access to users and devices in any outdoor scenario, including restaurants, gardens, marinas, educational premises or, really, anywhere where outdoor access is needed.
The VigorAP 918R is a dual-band 802.11ac Wave 2 wireless access point and range extender that can be used a part of a DrayTek Mesh Wireless solution, designed to eliminate wireless drop outs, stuttering videos, slow download speeds, poor signal and Wi-Fi dead zones. One access point acts as the controller (Mesh root) and in total up to 8 access points create an easy to manage wireless mesh. Extend coverage without running expensive cabling.
Initial setup of the VigorAP 918R is easy with the DrayTek Wireless app, whether it's creating a new Mesh network or being set up in AP and Range Extender modes, the Quick Start Wizard assists throughout. Manage the VigorAP 918R centrally through the VigorACS central management platform, VigorConnect, Router AP Management, or simply on its own as a stand-alone access point. The VigorAP 918R has the flexibility to be used how you need it, in any environment.
-
Outdoor weather-resistant wireless AP
The VigorAP 918R series is designed for use outdoors with a water- and dust-resistant IP67 casing. Designed to reliably operate in extreme hot or cold conditions, VigorAP 918R is an ideal access point for permanent outdoor installation. -
Auto optimizing mesh wireless
DrayTek's mesh system connects and intelligently manages a group of VigorAPs over wireless. The self-optimizing mesh ensures your wireless network nodes are always using the fastest path to the mesh root. -
Gigabit PoE ports
VigorAP 918R is powered by Power over Ethernet by its Gigabit Ethernet port for convenient installation. Connect and power extra devices through the VigorAP 918RPD's secondary Gigabit Ethernet port with PoE output. -
Easy to configure and manage
The DrayTek Wireless app simplifies setting up your network. Optionally configure and monitor through one of DrayTek's management platforms - VigorACS cloud, VigorConnect, Router AP Management, or directly via the AP's Web Interface. -
Long-range point-to-point wireless links
Create long distance wireless links with the VigorAP 918RPD's high-gain directional antenna. Connect two locations potentially over a kilometer apart with 11ac wireless. Signal strength LED indicators simplify aiming and installation.
Specifications
Summary
- Product Description
- Draytek VigorAP 918RPD - radio access point - Wi-Fi 5
- Device Type
- Radio access point
- Form Factor
- Wall mountable - outdoor
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Maximum data rate (2.4 GHz): 400 Mbps , Maximum data rate (5 GHz): 866 Mbps
- Included Accessories
- Directional mounting kit
- Power Over Ethernet (PoE) Supported
- PoE Passthrough
- Dimensions (WxDxH)
- 16.1 cm x 7.2 cm x 24.4 cm
- Weight
- 1 kg
- Manufacturer Warranty
- 2-year warranty
Detailed Specification
General
- Device Type
- Radio access point
- Ruggedized Design
- Outdoor
- Width
- 16.1 cm
- Depth
- 7.2 cm
- Height
- 24.4 cm
- Weight
- 1 kg
Networking
- Form Factor
- Wall mountable
- Connectivity Technology
- Wireless
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Remote Management Protocol
- SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI, TR-069
- Frequency Band
- 2.4 GHz, 5 GHz
- Performance
- Maximum data rate (2.4 GHz): 400 Mbps , Maximum data rate (5 GHz): 866 Mbps
- Wi-Fi Rating
- AC1300
- Features
- Load balancing, repeating mode, Syslog support, MAC address filtering, DFS support, Wireless Distribution System (WDS) support, Access Point operational mode, firmware upgradable, Wi-Fi Multimedia (WMM) support, RADIUS support, DHCP server, hidden SSID, temperature / humidity sensor, wireless bridge mode, reset button, 2T2R MIMO technology, pole mountable, DHCP relay, Transmit Power Control (TPC), band steering, Fast Roaming, RSSI Threshold, Airtime Fairness, client isolation, dustproof, waterproof, MAC clone, Wireless Auto On/Off, Multi-SSID over Mesh, Client Limit per SSID, Trusted DHCP Server IP for WLAN, Device Object/Group Control
- Encryption Algorithm
- TLS, PEAP, WPA, WPA2, WPA-PSK, WPA2-PSK, WEP
- Authentication Method
- RADIUS, Radio Service Set ID (SSID)
- Compliant Standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11v
Aerial
- Antenna
- External detachable
- Antenna Qty
- 2
- Directivity
- Directional
- Gain Level
- 11 dBi
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T (PoE) - RJ-45 , 2 x aerial
Miscellaneous
- Included Accessories
- Directional mounting kit
- Cables Included
- 1 x network cable
- Compliant Standards
- IP67
Power
- Power Over Ethernet (PoE) Supported
- PoE Passthrough
- Power Consumption Operational
- 18 Watt
Manufacturer Warranty
- Service & Support
- Limited warranty - 2 years
Environmental Parameters
- Min Operating Temperature
- -40 °C
- Max Operating Temperature
- 70 °C
- Humidity Range Operating
- 5 - 95% (non-condensing)
