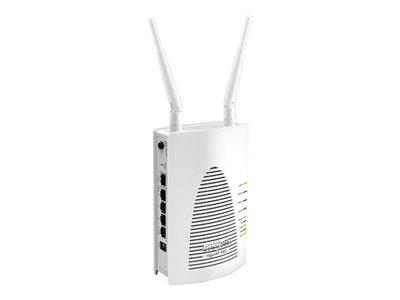

DrayTek VigorAP 903

DrayTek VigorAP 903

Review this product
Quicklinx: FJ9GWS00 Mfr#: VAP903-K
  • IEEE 802.11n
More than 50 In Stock
£125.56 ex VAT
£150.67 inc VAT
Standard delivery Delivered within 3 working days


DrayTek VigorAP 903 is a wireless access point with a 5-port switch for expanding the network wirelessly. LAN clients can join the network from one of the 5 Gigabit ports or the wireless connection. It is designed to provide a smooth wireless connection by supporting 802.11ac wave2 standard and providing advanced features, such as AirTime Fairness, Band Steering, and AP-Assisted Roaming.

  • Expand the network wirelessly

    VigorAP 903 helps you to deliver connectivity to every corner of the building without wires. By a few clicks on the App, they can automatically connect to each other to build a mesh topology, and clients can access the network via any of the VigorAP 903. The meshing technology adds redundancy and reliability to your network. In the event of connection failure, VigorAP 903 will dynamically route the traffic to an alternative path.
  • Concurrent dual-band & band steering

    VigorAP903 runs on 5 GHz and 2.4 GHz frequency band simultaneously, allows more concurrent Wi-Fi clients, and benefits from the fast speed of 5GHz and the long-range signal of 2.4GHz at the same time to meet the needs of various network applications. The support of Band Steering feature helps you to direct the 5G-compatible stations to the less-interference 5GHz WLAN, so that they can enjoy the faster Wi-Fi speed, and leave the 2.4GHZ WLAN less-crowded, which will results in better Wi-Fi experience for all the clients.
  • Secure your business network

    With VigorAP 903, you may have up to 8 SSIDs mapping to different (virtual) local networks and have different security settings. You may want an SSID for the visitors with only the Internet access and just secured by a Pre-Shared Key, at the same time, have another SSID for the staff to access internal resources, and requires client authentication by username and password. The built-in RADIUS server feature allows VigorAP 903 to do 802.1x authentication based on the local user database, which can also be used by other devices on the network, e.g., a router.
  • Easy setup & monitoring

    DrayTek has developed an App for setting up the mesh network with VigorAP 903, the user-friendly interface allows a quick setup even for non-tech savvy. Except for the App, Vigor AP 903 supports both stand-alone setup and controllerbased setup. For deploying just up a few access points only, the configuration can be done directly on the AP's web user interface. VigorAP903 is also compliant with DrayTek's centralized management too, the VigorACS, and the central AP management features of selected Vigor Router.
  • Improving roaming between aps

    VigorAP 903 provides "AP-Assisted Roaming" to make sure the clients are connecting to the best AP on the WLAN. VigorAP 903 continuously monitors the data rate and receiving signal strength of its clients to check if they are still in the effective transmitting range and would automatically disassociate those who are out of the range.



Product Description
Draytek VigorAP 903 - radio access point - Wi-Fi 5, Wi-Fi 5
Device Type
Radio access point
Form Factor
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Frequency Band
2.4 GHz, 5 GHz
Maximum data rate (2.4 GHz): 300 Mbps , Maximum data rate (5 GHz): 867 Mbps
Power Over Ethernet (PoE) Supported
Dimensions (WxDxH)
10.7 cm x 4.5 cm x 30.5 cm
370 g
Manufacturer Warranty
2-year warranty

Detailed Specification


Device Type
Radio access point
Built-in Devices
5 port switch
10.7 cm
4.5 cm
30.5 cm
370 g


Form Factor
Connectivity Technology
Data Transfer Rate
867 Mbps
Data Link Protocol
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Remote Management Protocol
SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, CLI, TR-069
Frequency Band
2.4 GHz, 5 GHz
Maximum data rate (2.4 GHz): 300 Mbps , Maximum data rate (5 GHz): 867 Mbps
Power over Ethernet (PoE), repeating mode, Syslog support, MAC address filtering, Wireless Distribution System (WDS) support, firmware upgradable, wall mountable, Mesh networking, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), RADIUS support, Wi-Fi Protected Setup (WPS), DHCP server, Multiple SSID support, hidden SSID, reset button, 2T2R MIMO technology, DHCP client, tagged VLAN, band steering, Airtime Fairness, AP-Assisted Roaming
Authentication Method
RADIUS, Radio Service Set ID (SSID)
Compliant Standards
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.11ac Wave 2


External detachable
Antenna Qty

Expansion / Connectivity

4 x 1000Base-T - RJ-45 , 1 x 1000Base-T (PoE) - RJ-45 , 1 x USB 2.0 - Type A


Power Over Ethernet (PoE) Supported
Power Device
External power adapter

Manufacturer Warranty

Service & Support
Limited warranty - 2 years
