Product

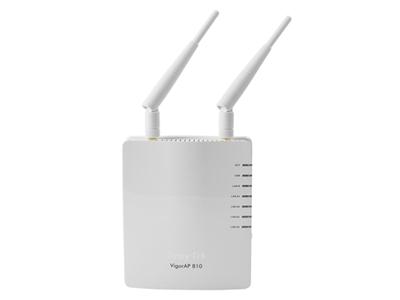

DrayTek Vigor AP-810 Wireless Access Point

Features multiple levels of wireless security
Review this product
Quicklinx: 9SFCWS00 Mfr#: AP810-K
Type: Radio access point
Connectivity: Wireless
Speed: 300Mbps
Protocol: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compatibility: PC
  • IEEE 802.11n
Ordered upon request
£83.33 ex VAT
£99.99 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

The DrayTek Vigor AP-810 is a standalone wireless access point, ideal for adding wireless connectivity to an existing LAN, or for expanding the range of an existing wireless LAN by using the WDS features. It can also be used as part of the DrayTek managed wireless system (see details here). The AP-810 replaces our popular AP-800 model, adding full compatibility with our managed wireless platform.

Wireless Security
The AP-810 features multiple levels of wireless security. Encryption using WEP, WPA, WPA2 (802.11i) is available you can also use the access control list (ACL) to specify the hardware addresses of clients which are permitted to connect (by MAC hardware address). Any unauthorised hardware is refused access.

For additional user authentication, you can activate 802.1x RADIUS (Remote Authentication Dial-in User Service) which allows you to centrally manage and store user names and passwords either within the AP-810 setup itself (thus not needing any external server) on an external radius server which can permit time limited, temporary or continuous access to your clients as required.

The Vigor AP-810 supports the 802.1q VLAN protocol so that if it is connected to an 802.1q enabled LAN, it can split tagged data (whether its different subnets or intended for different users) and broadcast each on its own SSID. This means, for example, that your guest WiFi access is provided on a separate isolated SSID with no access to your company data/devices.

USB Printer Port
The AP-810 has a USB interface into which you can connect a regular printer. That printer is then accessible from any wireless or wired PC which connects to the AP-810, or a PC anywhere else on the network to whick the AP-810 is connected. This is ideal to provide printer access to wireless laptops but could also be used for installing a printer elsewhere in your home/office by using a pair of AP-810s to make a bridge.

WMM - WiFi Multimedia
The AP-810 implements intelligent wireless traffic prioritization for the most efficient management of wireless traffic by using the Wi-Fi Multimedia standard (WMM). WMM defines Quality of Service (QoS) in Wi-Fi networks. It is a precursor to the upcoming IEEE 802.11e WLAN QoS standard, intended to improve timing critical applications such as audio, video and voice applications over WiFi. WMM adds prioritized capabilities to Wi-Fi networks and optimizes their performance when multiple concurrent applications, each with different latency and throughput requirements, compete for network resources.

WPS - WiFi Protected Setup
Wireless Security (encryption) is important to protect your data (privacy) but also to prevent unauthorised people from accessing your network or your Internet connection. The WPS system means that instead of having to create and enter long encryption keys, you can activate WPS registration. To activate, you press and hold the WPS button, then activate the WPS function on your PC; the two devices then automatically exchange encryption keys. For security, WPS an be disabled if the AP-810 is physically accessible.

The same button on the AP-810 also serves as a physical on/off switch for the Wireless LAN if you wish to quickly disable it at any time, whilst still leaving your wired ports active.

  • PoE for easy installation

    Power over Ethernet (PoE) support eases the installation by running only one cable to VigorAP 810 to deliver both data and power. You can mount VigorAP 810 to the place which is best for extending coverage without considering if there is ready access to a power plug. Of course, you can also use the included AC adapter if power is available nearby.
  • WMM for Wi-Fi application prioritization

    DrayTek implements intelligent wireless prioritization technology on VigorAP 810 for best utilization of wireless coverage. VigorAP 810 supports Wi-Fi Multi Media standard (WMM). It is a standard created to define Quality of Service (QoS) in Wi-Fi networks. It is a precursor to the upcoming IEEE 802.11e WLAN QoS draft standard, which is meant to improve audio, video and voice applications transmitted over Wi-Fi. WMM adds prioritized capabilities to Wi-Fi networks and optimizes their performance when multiple concurring applications, each with different latency and throughput requirements, compete for network resources.
  • SSID + 2 VLAN groups for workplace security & parental control

    The VigorAP 810 supports 4 separate SSIDs and two virtual LANs (VLANs). You can set certain SSID(s) accessing Internet through either VLAN A or B (LAN A or LAN B in WUI). As a result, the VigorAP 810 divides itself into several virtual access points all within a single hardware platform.Many mobile networks deployed at corporate offices, hotels, shopping malls or restaurants can take advantage of this technology to support several applications such as public Internet access and inventory management. For example, guests of a company could be given wireless access for the Internet, but they are excluded from any access to the internal data server. For home users, they can set up different authorization for SSIDs to their K12 kids, young adults and parents to avoiding inappropriate contents accessed by underage family members.
  • Comprehensive WLAN security control

    You can obtain the MAC addresses of each wireless client from its configuration utility or operating system. You then enter these addresses into a configuration page of VigorAP 810. When MAC address filtering is activated, VigorAP 810 performs additional check for wireless clients to prevent network breaking. Clients within the authenticated list will be able to join with the WLAN. Those who are not on the list will be denied while VigorAP 810 receives their request to join the WLAN.
  • WDS for unlimited coverage extendibility

    The VigorAP 810 can extend over large areas (alike shopping mall) by its "WDS" (wireless distribution system). WDS takes care of the establishment of WLAN network with "point-to-point" and "point-to-multipoint" bridging and repeater modes. The repeater mode provides extend wireless access to additional clients where there is a relay AP repeats signal from a base AP to distant clients. The bridge-to-bridge mode allows two wired networks to be connected across some distance. The detachable antenna will let you replace with DrayTek antennas for directional signal shaping or mounting flexibility.
  • Embedded USB printer server

    You can connect a printer to the USB port of VigorAP 810 for users from wired PC or wireless network. i.e. The laptop users can access printer for printing. When you are using a pair of VigorAP 810s to make a bridge, the said printer can be installed elsewhere in your office/ home.
  • TR-069-supported VigorAP810 can work with TR-069 VigorACS SI Central Management

    The VigorAP 810 is TR-069 base. Hence, you can host VigorACS SI Central Management to manage several VigorAP 810 which were deployed remotely.

Specifications

Summary

Product Description
Draytek VigorAP 810 - radio access point
Device Type
Radio access point
Form Factor
External
Data Link Protocol
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Dimensions (WxDxH)
11.2 cm x 4.2 cm x 13.2 cm


Detail

General

Device Type
Radio access point
Width
11.2 cm
Depth
4.2 cm
Height
13.2 cm

Networking

Form Factor
External
Connectivity Technology
Wireless
Data Link Protocol
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Remote Management Protocol
Telnet, HTTP, HTTPS, CLI, TR-069
Features
Power over Ethernet (PoE), Syslog support, print server, Wireless Distribution System (WDS) support, firmware upgradable, MIMO technology, Wi-Fi Multimedia (WMM) support, Wi-Fi Protected Setup (WPS), DHCP server, Multiple SSID support, DHCP client
Encryption Algorithm
128-bit WEP, 64-bit WEP, WPA, WPA2
Compliant Standards
IEEE 802.11b, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n

Aerial

Antenna
External detachable
Antenna Qty
2

Expansion / Connectivity

Interfaces
4 x 100Base-TX - RJ-45 , 1 x 100Base-TX (PoE) - RJ-45 , 1 x USB 2.0 - Type A

Miscellaneous

Compliant Standards
FCC

Power

Power Device
External power adapter
Power Consumption Operational
10 Watt

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
10 - 90% (non-condensing)
