Description
The D-Link DWL Wave 2 Series Unified AC Wave 2 Wireless Access Points are specially designed for small to medium businesses or enterprises, providing unparalleled bandwidth and flexibility for administrators looking to deploy a medium to large scale Wi-Fi network with manageable dual-band wireless LAN possibilities and utilizing the outstanding speed of Wireless AC Wave 2. Not only can it operate in standalone mode, the D-Link Unified AC Wave 2 Wireless Access Points can also be centrally managed by D-Link Unified Wireless Controllers. Highly-manageable and capable of blazing speeds, the Unified AC Wave 2 Wireless Access Points integrate seamlessly into any existing network infrastructure and can be easily scaled to meet future demands.
-
Greater speed and connectivity
The DWL Wave 2 Series Unified AC Wave 2 Wireless Access Points leverage the full potential of 802.11ac Wave 2 to provide unparalleled connectivity with ultra-high combined data rates. The DWL-8620APE offers extremely fast combined speed. In addition, the DWL Wave 2 Series supports Link Aggregation, which allows two Gigabit Ethernet ports to be linked together and act as a single port to double the available bandwidth and maximize the overall throughput of the access point. -
MU-MIMO technology
The DWL Wave 2 Series supports MU-MIMO (Multi-User Multiple Input Multiple Output), which enables the device to simultaneously communicate with multiple clients using multiple antennas. This allows the access point to utilize the spectrum more efficiently and significantly increase the network capacity. The DWL-8620APE supports 4x4 MU-MIMO to take full advantage of all streams to serve more wireless clients to dramatically improve wireless performance. -
Centrally managed
When working in conjunction with D-Link Unified Controllers, the Unified AC Wave 2 Wireless Access Points can be centrally managed. This allows for a large number of access points to be deployed and managed easily and efficiently. Once the APs are discovered by the controller, the administrator can push the configuration to them as a group, instead of configuring each access point individually. Additionally, Radio Frequency (RF) resource management allows wireless coverage to be managed centrally, providing excellent coverage for wireless clients. -
Easy-to-install
The DWL Wave 2 Series can be ceiling-mounted or wall-mounted to meet the needs of any wireless application. For additional flexibility, the D-Link Unified AC Wave 2 Wireless Access Points have integrated Power over Ethernet (PoE) support, allowing the devices to be installed in areas where power outlets are not readily available. -
Automatic Radio Frequency (RF) management
When access points are deployed in close proximity to each other, there may be interference between channels if RF management is not implemented. When a D-Link Unified AC Access Point senses a neighbor nearby, it will automatically select a non-interfering channel. This greatly reduces RF interference and will allow the administrator to deploy APs more densely. To further minimize interference, when a nearby AP is on the same channel, the D-Link Unified AC Wave 2 Access Point will automatically lower its transmission power. When, for whatever reason, the nearby AP is no longer present, the access point will increase its transmission power to expand coverage. -
Advanced wireless features
The D-Link Unified AC Wave 2 Wireless Access Points support 802.1p Quality of Service (QoS) for enhanced throughput and better performance of time-sensitive traffic like VoIP and streaming DSCP. The D-Link Unified AC Wave 2 Wireless Access Points support Wi-Fi Multimedia (WMM), so in the event of network congestion, time-sensitive traffic can be given priority ahead of other traffic. Furthermore, when a number of access points are in close proximity to each other, an access point will refuse new association requests once its resources are fully utilized, allowing the association request to be picked up by a neighboring unit, distributing the load over multiple APs. Band steering technology enables the Unified AC Wave 2 Wireless Access Points to intelligently place clients on the optimal wireless band to avoid congestion and allows for smooth streaming of video, seamless browsing, and fast downloads for mobile devices. Airtime Fairness ensures that equal airtime is given to each client, providing increased performance even if slower devices are connected. 802.11k Fast Roaming is also supported, which allows the wireless client to roam seamlessly between access points.
Specifications
Summary
- Product Description

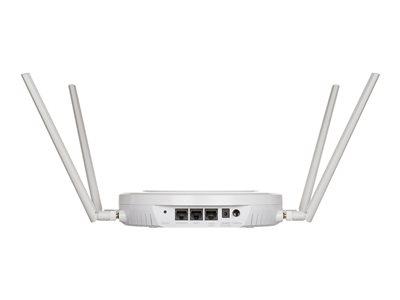

- D-Link Unified AC Wave 2 DWL-8620APE - radio access point - Wi-Fi 5
- Device Type
- Radio access point
- Form Factor
- External
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Frequency Band
- 2.4 GHz (1 band) / 5 GHz (2 bands)
- Capacity
- SSIDs total: 32 , SSIDs per radio: 16
- Power
- DC 12 V
- Dimensions (WxDxH)
- 22 cm x 22 cm x 4.7 cm
- Weight
- 920 g
Detailed Specification
General
- Device Type
- Radio access point
- Width
- 22 cm
- Depth
- 22 cm
- Height
- 4.7 cm
- Weight
- 920 g
Networking
- Form Factor
- External
- Connectivity Technology
- Wireless
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Remote Management Protocol
- SNMP 1, Telnet, SNMP 3, SNMP 2c, SSH, CLI
- Frequency Band
- 2.4 GHz (1 band) / 5 GHz (2 bands)
- Capacity
- SSIDs total: 32 , SSIDs per radio: 16
- Features
- Power over Ethernet (PoE), VLAN support, MAC address filtering, Wireless Distribution System (WDS) support, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), rogue access point detection, Link Aggregation, band steering, dual band, Fast Roaming, Airtime Fairness, 4x4 MU-MIMO technology, Station Isolation
- Encryption Algorithm
- AES, TKIP, WPA, WPA2
- Compliant Standards
- IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac Wave 2
Aerial
- Antenna
- External detachable
- Directivity
- Omni-directional
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T (PoE) - RJ-45 , 1 x 1000Base-T - RJ-45 , 1 x console - RJ-45
Miscellaneous
- MTBF
- 460,185 hours
- Compliant Standards
- BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, CB, IC, FCC, EN 60601-1-2, NCC, RCM, EN 300 328, EN 301 489-1, EN 301 893, EN 55032, EN 301 489-17, cUL+UL
Power
- Power Device
- External power adapter
- Voltage Required
- DC 12 V
- Power Consumption Operational
- 24.24 Watt
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
