Description

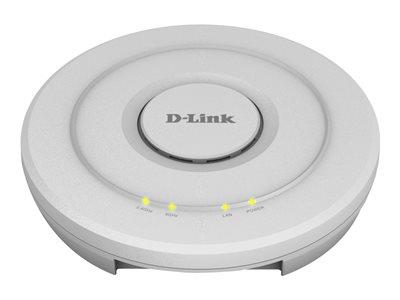

The Wireless AC2200 Wave 2 Tri-Band Unified Access Point delivers great bandwidth and flexibility for medium to large Wi-Fi networks. Its fast Tri-Band speeds, 2x2 MU-MIMO, band steering, and Airtime Fairness upgrades your business to the best.
Greater Speed and Connectivity: Combined wireless speeds of up to 2,200 Mbps* over 3 wireless bands for improved business network speeds.
Flexible Deployment: It can be ceiling mounted or wall mounted to provide the best wireless coverage. Integrated Power over Ethernet (PoE) makes deployments faster and means it can be installed in areas without power outlets.
-
Enhanced connectivity
With a variety of interface options including three RJ-45 connectors for 1000Base-T (PoE), 1000Base-T, and console connections, the D-Link DWL-7620AP offers versatile and robust connectivity solutions for diverse networking environments. -
Advanced security
Equipped with AES and TKIP encryption algorithms, the DWL-7620AP ensures a secure wireless communication channel, safeguarding sensitive data from potential threats. -
High performance
Leveraging IEEE 802.11ac Wave 2 technology, the DWL-7620AP delivers high-speed wireless connectivity and improved efficiency with MU-MIMO technology, supporting multiple users simultaneously. -
Comprehensive network management
Support for SNMP, SSH, and Telnet allows for efficient remote management of the network, ensuring optimal performance and quick troubleshooting. -
Flexible deployment
Designed for versatility, the DWL-7620AP supports ceiling mounting and features Power over Ethernet (PoE), enabling flexible installation options and reducing the need for additional power cables.
Specifications
Summary
- Product Description
- D-Link DWL-7620AP - radio access point - Wi-Fi 5
- Device Type
- Radio access point
- Form Factor
- External
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Frequency Band
- 2.4 GHz (1 band) / 5 GHz (2 bands)
- Included Accessories
- Mounting brackets
- Power
- AC 120/230 V
Detailed Specification
General
- Device Type
- Radio access point
Networking
- Form Factor
- External
- Connectivity Technology
- Wireless
- Data Link Protocol
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
- Remote Management Protocol
- SNMP, Telnet, SSH
- Frequency Band
- 2.4 GHz (1 band) / 5 GHz (2 bands)
- Wi-Fi Rating
- AC2200
- Status Indicators
- Power, LAN, wireless
- Features
- Power over Ethernet (PoE), load balancing, MAC address filtering, Wireless Distribution System (WDS) support, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), reset button, rogue access point detection, ceiling mountable, security lock slot (cable lock sold separately), MU-MIMO technology, Tri-Band
- Encryption Algorithm
- AES, 128-bit WEP, 64-bit WEP, TKIP, WPA, WPA2-PSK
- Compliant Standards
- IEEE 802.1Q, IEEE 802.11b, IEEE 802.11g, IEEE 802.1x, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2
Aerial
- Antenna
- Internal
Expansion / Connectivity
- Interfaces
- 1 x 1000Base-T (PoE) - RJ-45 , 1 x 1000Base-T - RJ-45 , 1 x console - RJ-45
Miscellaneous
- Included Accessories
- Mounting brackets
- Compliant Standards
- FCC Part 15, UL 2043, ERP
Power
- Power Device
- External power adapter
- Voltage Required
- AC 120/230 V
