Description
Compatible with 4th generation Intel® Core™ series processors
Designed to deliver the clean, stable power your system deserves
When you build or upgrade your own system, you want a power supply that meets both your power requirements and your exacting standards for performance and noise. The entire Enthusiast Series TX V2 family has been designed to do just that. With any TX V2 PSU, you'll find the right balance between price and the features you want: high efficiency, tight voltage regulation, low ripple and noise, and thermally-controlled fan speed.
Unlike many "value-oriented" power supplies, the entire range of TX V2 power supplies are designed to continuously deliver their rated power, all the way to 50°C ambient temperature. And with the tight voltage regulation and low ripple and noise that Corsair's Enthusiast Series in known for, you'll get clean power too. No more random crashes caused by dirty or insufficient power!
All TX V2 power supplies deliver up to 85% efficiency, feature a single +12V rail for simple installation, and are compatible with the latest Intel and AMD platforms, as well as NVIDIA® and AMD multi-GPU configurations. They are even ErP ready, so your system can use as little as 1W of power in standby mode (when used with an ErP-compliant motherboard).
Specifications
Summary
- Product Description

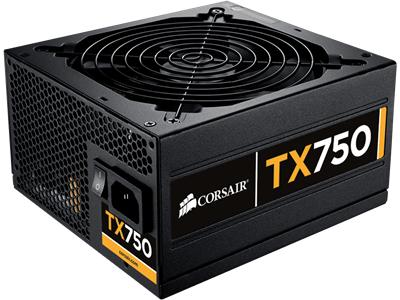

- CORSAIR Enthusiast Series TX750 V2 - power supply - 750 Watt
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- ATX12V 2.31/ EPS12V 2.92
- 80 PLUS Certification
- 80 PLUS Bronze
- Weight
- 2.5 kg
- Localisation
- United Kingdom
- Input Voltage
- AC 90-264 V
- Output Voltage
- +3.3, +5, ±12 V
- Power Capacity
- 750 Watt
- Output Current
- +3.3V - 30 A , +5V - 30 A , +12V - 60 A , -12V - 0.8 A , +5VSB - 3 A
- Output connectors
- 1 x power 24 pin ATX , 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section , 4 x 6 pin PCI Express power , 8 x 4 PIN internal power , 8 x 15 pin Serial ATA power , 2 x 4 PIN mini-power connector
- Cooling System
- 140 mm fan
- Dimensions (WxDxH)
- 15 cm x 16 cm x 8.6 cm
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- ATX12V 2.31/ EPS12V 2.92
- PSU Form Factor
- ATX
- Localisation
- United Kingdom
Power Device
- Input Voltage
- AC 90-264 V
- Power Output Connectors Details
- 1 x power 24 pin ATX , 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section , 4 x 6 pin PCI Express power , 8 x 4 PIN internal power , 8 x 15 pin Serial ATA power , 2 x 4 PIN mini-power connector
- Output Voltage
- +3.3, +5, ±12 V
- Power Capacity
- 750 Watt
- Output Current
- +3.3V - 30 A , +5V - 30 A , +12V - 60 A , -12V - 0.8 A , +5VSB - 3 A
- 80 PLUS Certification
- 80 PLUS Bronze
Miscellaneous
- MTBF
- 100,000 hours
- Cooling System
- 140 mm fan
- Features
- Over current protection, over voltage protection, SLI ready, undervoltage protection, short-circuit protection, single 12V rail, dual ball bearing cooling fan, non-modular
- Compliant Standards
- FCC Class B certified, UL, TUV, C-Tick, cUL, CB, CCC, cTUVus
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Dimensions & Weight
- Width
- 15 cm
- Depth
- 16 cm
- Height
- 8.6 cm
- Weight
- 2.5 kg
Dimensions & Weight (Shipping)
- Shipping Width
- 21.6 cm
- Shipping Depth
- 29 cm
- Shipping Height
- 13 cm
- Shipping Weight
- 3.2 kg
