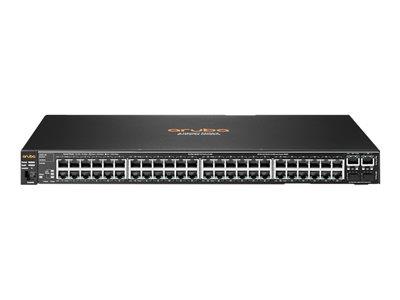

Aruba HP 2530-48 48 ports Managed Desktop/Rack-Mountable/Wall-Mountable Switch

Review this product
Quicklinx: 9ZQ3WS00 Mfr#: J9781A
Type: Fast Ethernet
Ports: 48
Managed: Yes
Ordered upon request
£400.28 ex VAT
£480.33 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments. Fully managed switches deliver Layer 2 capabilities with optional PoE+, optional 10GbE uplinks, enhanced access security, traffic prioritization, sFlow, IPv6 host support, and power savings with Energy Efficient Ethernet. The Aruba 2530 Switch Series is easy to use and deploy, and delivers consistent wired/wireless user experience with unified management tools such as ClearPass Policy Manager and Airwave Network Management.

Specifications

Summary

Product Description
Aruba 2530-48 - switch - 48 ports - Managed - desktop, rack-mountable, wall-mountable
Device Type
Switch - 48 ports - Managed
Enclosure Type
Desktop, rack-mountable, wall-mountable 1U
Subtype
Fast Ethernet
Ports
48 x 10/100 + 2 x Gigabit SFP + 2 x 10/100/1000
Performance
Throughput: up to 13 Mpps , Switching capacity: 17.6 Gbps
Capacity
MAC addresses: 16000
MAC Address Table Size
16000 entries
Jumbo Frame Support
9220 bytes
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
Features
Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard, LLDP support, Class of Service (CoS), Generic Attribute Registration Protocol (GARP)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Power
AC 120/230 V ( 50/60 Hz )
Dimensions (WxDxH)
44.2 cm x 24.64 cm x 4.45 cm
Weight
2.86 kg
Manufacturer Warranty
Limited lifetime warranty
Bundled Services
Limited lifetime warranty


Detail

General

Device Type
Switch - 48 ports - Managed
Enclosure Type
Desktop, rack-mountable, wall-mountable 1U
Subtype
Fast Ethernet
Ports
48 x 10/100 + 2 x Gigabit SFP + 2 x 10/100/1000
Performance
Throughput: up to 13 Mpps , Switching capacity: 17.6 Gbps
Capacity
MAC addresses: 16000
MAC Address Table Size
16000 entries
Jumbo Frame Support
9220 bytes
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
Encryption Algorithm
SSL
Authentication Method
RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard, LLDP support, Class of Service (CoS), Generic Attribute Registration Protocol (GARP)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az
Processor
1 x ARM : 800 MHz
RAM
256 MB - DDR3 SDRAM
Flash Memory
128 MB

Expansion / Connectivity

Interfaces
2 x 10Base-T/100Base-TX/1000Base-T - RJ-45 , 2 x SFP (mini-GBIC) , 1 x management - RJ-45 , 48 x 10Base-T/100Base-TX - RJ-45

Power

Power Device
Internal power supply
Voltage Required
AC 120/230 V ( 50/60 Hz )

Miscellaneous

Compliant Standards
FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, CSA C22.2 No. 60950-1

Dimensions & Weight

Width
44.2 cm
Depth
24.64 cm
Height
4.45 cm
Weight
2.86 kg

Manufacturer Warranty

Service & Support
Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 90% (non-condensing)
