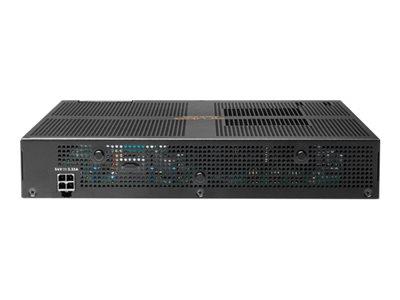

Aruba 2930F 8G PoE+ 2SFP+ Switch

INDUSTRY STANDARD OPENFLOW ENABLES INNOVATIVE SDN APPLICATIONS!
Review this product
Quicklinx: CRVNWS00 Mfr#: JL258A
Type: Gigabit Ethernet
Ports: 8
Managed: Yes
POE: PoE+
Hurry, only 1 left in stock!
£490.78 ex VAT
£588.93 inc VAT
Qty
Standard delivery Delivered within 3 working days

Description

The Aruba 2930F Switch Series is designed for customer creating digital workplaces that are optimized for mobile users with an integrated wired and wireless approach. These basic Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager and Aruba AirWave and are ideal for enterprise edge, SMB and branch offices. A powerful Aruba ProVision ASIC delivers performance and value supporting the latest SDN applications with future proof programmability. It supports 10GbE uplinks, PoE+, robust QoS, and RIP routing.

The Aruba 2930F Switch Series provides a convenient and cost-effective access switch solution that can be quickly set up with Zero Touch Provisioning and built-in 10GbE uplinks. The robust basic Layer 3 feature set includes a limited lifetime warranty

KEY FEATURES

  • Aruba Basic Layer 3 switch series with VSF stacking, static, Rip and Access OSPF Routing, ACLs, and robust QoS
  • Consistent wired/wireless experience with Aruba AirWave and Aruba ClearPass Policy Manager
  • Convenient built-in 1GbE or 10GbE uplinks and up to 370 W PoE+
  • Ready for innovative SDN applications with OpenFlow support
  • Simple deployment with Zero Touch Provisioning and cloud-based Aruba Central support
  • High-Performance Access Layer Switches

    The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.Stacking with Virtual Switching Framework (VSF) and convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
  • Performance and Power at the Edge

    The Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.Virtual Switching Framework (VSF) virtualizes up to four physical switches into one logical device for simpler, flatter, more agile networks.Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones.
  • Security and Quality of Service You Can Rely on

    The Aruba 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
  • Simplify with Integrated Wired/Wireless Management

    The Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices.Cloud-based management supported by Aruba Central.RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.

Specifications

Summary

Product Description
HPE Aruba 2930F 8G PoE+ 2SFP+ - switch - 8 ports - Managed - rack-mountable
Device Type
Switch - 8 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
125 W
Performance
Throughput: 41.7 Mpps , Switching capacity: 56 Gbps , Latency (1 Gbps): 3.8 µs , Latency (10 Gbps): 1.6 µs
Capacity
Jumbo frame size: 9220 , IPv4 routing table entries: 10000 , IPv6 routing table entries: 5000
MAC Address Table Size
32K entries
Routing Protocol
OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
Features
Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Power
AC 90-264 V
Dimensions (WxDxH)
25.4 cm x 25.4 cm x 4.39 cm
Weight
2 kg
Manufacturer Warranty
Limited lifetime warranty


Detailed Specification

General

Device Type
Switch - 8 ports - L3 - Managed - stackable
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x 1 Gigabit / 10 Gigabit SFP+ (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
125 W
Performance
Throughput: 41.7 Mpps , Switching capacity: 56 Gbps , Latency (1 Gbps): 3.8 µs , Latency (10 Gbps): 1.6 µs
Capacity
Jumbo frame size: 9220 , IPv4 routing table entries: 10000 , IPv6 routing table entries: 5000
MAC Address Table Size
32K entries
Routing Protocol
OSPF, RIP, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, static IP routing, IGMPv3, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, MLD, CIDR
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, SNMP, Telnet, SNMP 3, SNMP 2c, SSH, SSH-2, CLI, XRMON
Encryption Algorithm
MD5, SSL
Authentication Method
RADIUS, PAP, CHAP, TACACS, TACACS+
Features
Flow control, full duplex capability, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, Syslog support, DiffServ support, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, DHCP server, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LLDP support, Link Aggregation Control Protocol (LACP), Management Information Base (MIB), MAC address lockout, dynamic ARP protection, DHCP protection, Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), Class of Service (CoS), Type of Service (ToS), OpenFlow support, CPU protection, Internet Control Message Protocol (ICMP), ICMP Router Discovery Protocol (IRDP), Virtual Extensible LAN (VXLAN), Management Information Base (MIB) II
Compliant Standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Processor
1 x ARM Cortex-A9: 1.016 GHz
RAM
1 GB DDR3 SDRAM
Flash Memory
4 GB

Expansion / Connectivity

Interfaces
8 x 1000Base-T RJ-45 PoE+ , 2 x Gigabit / 10Gbit LAN SFP+ , 1 x serial (console)
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Installed Modules Qty (Max)
0 (installed) / 2 (max)

Power

Power Device
External power adapter
Installed Qty
1
Voltage Required
AC 90-264 V

Miscellaneous

Included Accessories
4 rubber feet, rack mount kit, mounting screws, table mounting kit
Compliant Standards
CISPR 22 Class A, CISPR 24, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, ICES-003 Class A, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition, VCCI Class A, IEC 60825-1:2007, CNS 13438, EN 55024:2010, EN 55022:2010, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 60825-1:2007, FCC CFR47 Part 15 A, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

Software / System Requirements

Software Included
Command Line Interface (CLI), HP Web browser, HP Intelligent Management Center

Dimensions & Weight

Width
25.4 cm
Depth
25.4 cm
Height
4.39 cm
Weight
2 kg

Manufacturer Warranty

Service & Support
Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Humidity Range Operating
15 - 95% (non-condensing)
Min Storage Temperature
-40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
15 - 90% (non-condensing)
