Description

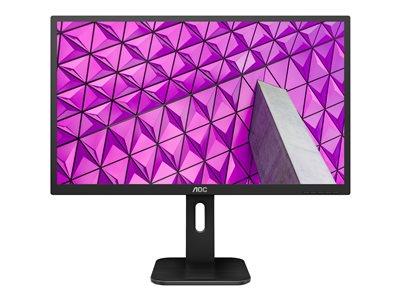

Experience deep contrast with the 22P1! Its Full HD panel offers wide viewing angles. Connect any source with VGA, DVI, HDMI, DisplayPort inputs.
-
Display Port
The most recent display interface standard from VESA, DisplayPort can also transfer audio, USB and other forms of data. DisplayPort version 1.2-1.2a support up to 165 Hz@1440p, 75 Hz@2160p, version 1.3 supports up to 240Hz@1440p, 120 Hz@2160p and the version 1.4 supports HDR10 specifications. -
Integrated Speakers
Built-in speakers make it easy to catch up with family, friends and colleagues. For movies, music, games and more, you'll enjoy quality audio without the hassle of connecting external speakers. -
Height adjustable stand
Raise or lower the screen to suit each individual's height and seating preferences. The easy-to-adjust stand ensures hours of working comfort. -
MVA Panel
The MVA (Multi-Domain Vertical Alignment) panel displays deeper blacks and a -high contrast for extra vivid and bright images.
Specifications
Summary
- Product Description
- AOC 22P1 - LED monitor - Full HD (1080p) - 21.5"
- Device Type
- LED-backlit LCD monitor - 21.5"
- Energy Class
- Class E
- Power Consumption (On mode)
- 15.4 W
- Panel Type
- MVA
- Aspect Ratio
- 16:9
- Native Resolution
- Full HD (1080p) 1920 x 1080 at 60 Hz
- Pixel Pitch
- 0.24795 mm
- Brightness
- 250 cd/m²
- Contrast Ratio
- 3000:1 / 50000000:1 (dynamic)
- Colour Support
- 16.7 million colours
- Input Connectors
- HDMI, DVI, DisplayPort, VGA
- Display Position Adjustments
- Height, pivot (rotation), swivel, tilt
- Screen Coating
- Matte
- Voltage
- AC 120/230 V (50/60 Hz)
- Dimensions (WxDxH) - with stand
- 50.4 cm x 19.9 cm x 50.6 cm
- Environmental Standards
- TCO Certified Displays 8
- Compliant Standards
- TUV GS, GOST, RoHS, REACH, DisplayPort 1.2, ISPO
- Manufacturer Warranty
- 3-year warranty
Detailed Specification
General
- Display Type
- LED-backlit LCD monitor / TFT active matrix
- Energy Class
- Class E
- Diagonal Size
- 21.5"
- Viewable Size
- 22"
- Panel Type
- MVA
- Aspect Ratio
- 16:9
- Native Resolution
- Full HD (1080p) 1920 x 1080 at 60 Hz
- Pixel Pitch
- 0.24795 mm
- Brightness
- 250 cd/m²
- Contrast Ratio
- 3000:1 / 50000000:1 (dynamic)
- Colour Support
- 16.7 million colours
- Horizontal Viewing Angle
- 178
- Vertical Viewing Angle
- 178
- Screen Coating
- Matte
- Backlight Technology
- WLED
- Dimensions (WxDxH)
- 50.4 cm x 19.9 cm x 50.6 cm - with stand
Audio
- Type
- Speakers - stereo
- Output Power / Channel
- 2 Watt
Connectivity
- Interfaces
- VGA , HDMI , DisplayPort , DVI , Headphones , 4 x USB 3.0
Mechanical
- Display Position Adjustments
- Height, pivot (rotation), swivel, tilt
- Tilt Angle
- -3.5/+21.5
- Swivel Angle
- 175
- Height Adjustment
- 130 mm
Miscellaneous
- Cables Included
- 1 x HDMI cable , 1 x DVI cable
- MTBF
- 50,000 hour(s)
- Compliant Standards
- TUV GS, GOST, RoHS, REACH, DisplayPort 1.2, ISPO
Power
- Input Voltage
- AC 120/230 V (50/60 Hz)
- Power Consumption (On mode)
- 15.4 W
- Power Consumption SDR (On mode)
- 15.4 kWh/1000h
- Power Consumption (Typical)
- 20 Watt
- Power Consumption Stand by
- 0.3 Watt
- Power Consumption (Off Mode)
- 0.3 Watt
Dimensions & Weight (Shipping)
- Shipping Width
- 71.5 cm
- Shipping Depth
- 15.9 cm
- Shipping Height
- 38.7 cm
- Shipping Weight
- 6.2 kg
Sustainability Information
- TCO Certified
- TCO Certified Displays 8
Manufacturer Warranty
- Service & Support
- Limited warranty - 3 years
