Description
Antec's HCG M power supplies are the perfect combination of power and efficiency. The HCG M features special heavy-duty high current connectors and cabling that supply extreme levels of power, and superb efficiency thanks to 80 PWS0 BRONZE certification and Active PFC. Circuits hield makes the HCG-850M safe and reliable in any environment with its nine industrial-grade protections. If loads of power, high current engineering and extreme efficiency are what you're after, the HCG M is the PSIJ for you.
-
Efficient power distribution
With dual 12V rails and a maximum current output of 40 A on each, the Antec High Current Gamer HCG-850M ensures a stable and reliable power supply to critical components, enhancing system performance and reliability. -
Advanced cooling system
Equipped with a 135 mm dual ball bearing cooling fan, the power supply maintains optimal operating temperatures, contributing to the longevity and stability of both the power supply and the components it powers. -
Comprehensive protection
Featuring overcurrent, overheat, overpower, overvoltage, short-circuit, surge & inrush, and undervoltage protection, the HCG-850M safeguards your system against a wide range of potential power issues, ensuring peace of mind and system integrity. -
High compatibility
With a variety of power output connectors including 24 pin ATX, 8 pin EPS12V, and 8 pin PCI Express, alongside multiple SATA and internal power connectors, this power supply supports a wide range of PC and server configurations. -
Energy efficient
Boasting an 80 PLUS Bronze certification, the HCG-850M operates at a minimum of 88% efficiency at 50% load, reducing electricity usage and operating costs while being environmentally friendly.
Specifications
Summary
- Product Description

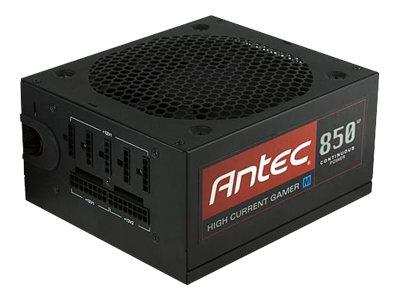

- Antec High Current Gamer HCG-850M - power supply - 850 Watt
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- ATX12V 2.32/ EPS12V 2.92
- 80 PLUS Certification
- 80 PLUS Bronze
- Weight
- 2.1 kg
- Localisation
- United Kingdom
- Input Voltage
- AC 100-240 V
- Power Capacity
- 850 Watt
- Output Current
- +5V - 25 A , +12V1 - 40 A , +12V2 - 40 A , -12V - 0.5 A , +5VSB - 3 A , +3.3V - 25 A
- Output connectors
- 1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section , 1 x power 8 pin EPS12V , 4 x 8 pin PCI Express power with detachable 2 pin section , 9 x 15 pin Serial ATA power , 6 x 4 PIN internal power , 1 x 4 PIN mini-power connector
- Cooling System
- 135 mm fan
- Dimensions (WxDxH)
- 15 cm x 17 cm x 8.6 cm
- Manufacturer Warranty
- 5-year warranty
Detailed Specification
General
- Device Type
- Power supply - active Power Factor Correction (PFC) - internal
- Specification Compliance
- ATX12V 2.32/ EPS12V 2.92
- PSU Form Factor
- ATX
- Localisation
- United Kingdom
Power Device
- Input Voltage
- AC 100-240 V
- Input Voltage Margin
- + 10% / - 10%
- Frequency Required
- 50 - 60 Hz
- Power Output Connectors Details
- 1 x power 24 pin ATX with detachable 4 pin section , 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section , 1 x power 8 pin EPS12V , 4 x 8 pin PCI Express power with detachable 2 pin section , 9 x 15 pin Serial ATA power , 6 x 4 PIN internal power , 1 x 4 PIN mini-power connector
- Power Capacity
- 850 Watt
- Output Current
- +5V - 25 A , +12V1 - 40 A , +12V2 - 40 A , -12V - 0.5 A , +5VSB - 3 A , +3.3V - 25 A
- Efficiency
- 88%
- 80 PLUS Certification
- 80 PLUS Bronze
Miscellaneous
- Cooling System
- 135 mm fan
- Features
- Overheat protection, over current protection, over voltage protection, overpower protection, SLI ready, CrossFire ready, undervoltage protection, dual 12V rails, short-circuit protection, dual ball bearing cooling fan, surge & inrush protection
- Compliant Standards
- UL, TUV, C-Tick, BSMI, cUL, CB, CCC, FCC, GOST-R
Manufacturer Warranty
- Service & Support
- Limited warranty - 5 years
Dimensions & Weight
- Width
- 15 cm
- Depth
- 17 cm
- Height
- 8.6 cm
- Weight
- 2.1 kg
