Description
Centralized Digital Media Server for Storing, Streaming and Sharing Multimedia Files
|  | Centralized media server for multimedia streamingThe ZyXEL NSA210, DLNA 1.5-certified 1-Bay Media Server, supports multiple server technologies for multimedia sharing. Acting as an iTunes server, SqueezeCenter, personal blog and photo album server for PCs, laptops and SqueezeBoxes, the NSA210 can make it easy to stream and share music and photos. |

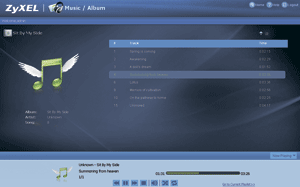

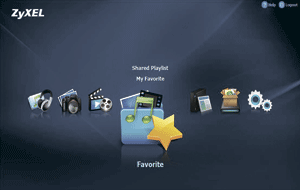

  | Intuitive user interface integrated with media playerWithWith the user-friendly installation wizard, it's easy and simple to manage and backup media files. Through an intuitive user interface integrated with the media player, you can play music and photo slide shows directly from NSA210. The NSA210 also allows you to create a music playlist and play it on the background for photo slide shows. | |

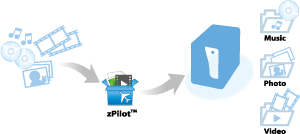

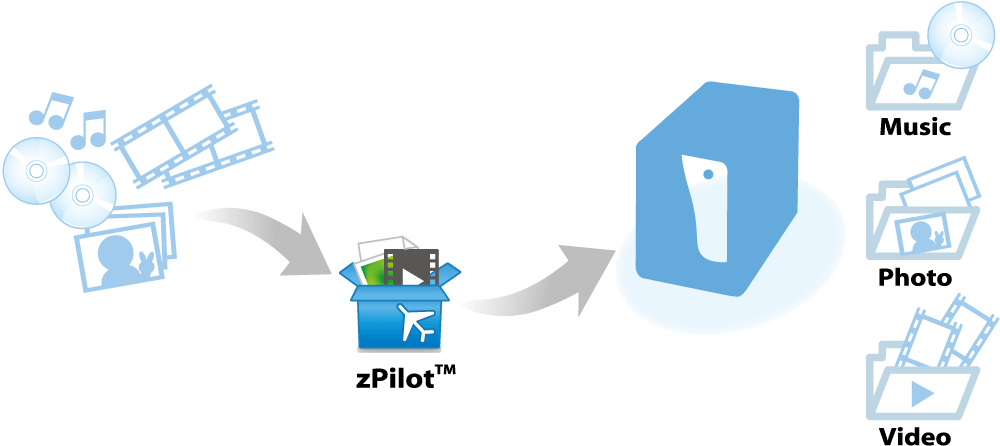

| zPilot™ for media auto-classification with easy drag-and-dropThe zPilot™ file auto-classification function of the NSA210 enables you to easily store and manage media files through simple drag-and-drop operations. With the zPilot™ software installed through the NAS Starter Utility, you can drag one or more files/folders to the zPilot™ icon on the desktop, and the files/folders will be identified and delivered automatically to music, photo, video or other designated folders on the NSA210; users can also easily check the upload status of data transmission. | |
System Specifications
Networking
Backup Solutions
Physical Specifications
Certification
This Is An Unpopulated Unit, See Bundles To Attach A Hard Drive For This NAS |
-

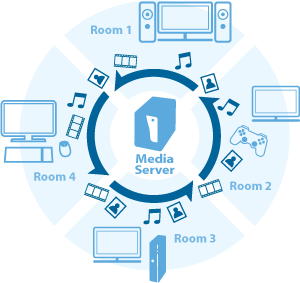

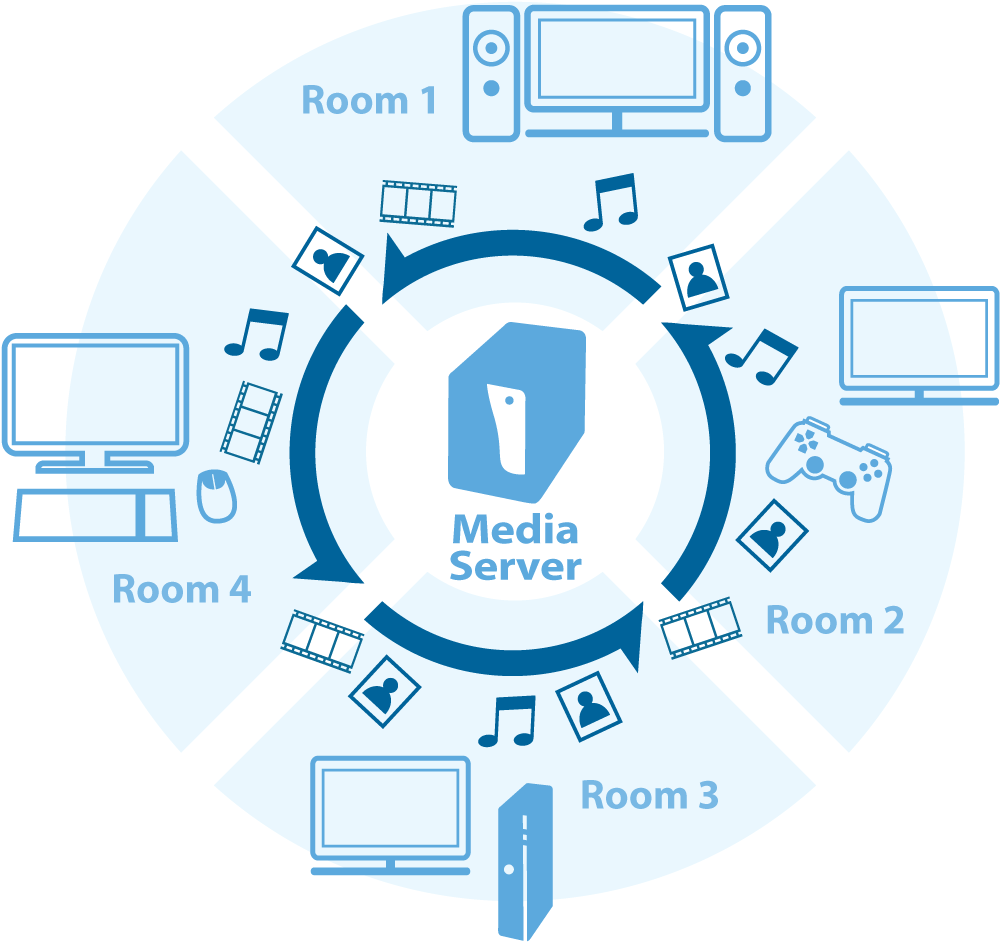

Centralized media server for multimedia streaming
The ZyXEL NSA210 1-bay digital media server supports high-volume for home users, and its UPnP and DLNA 1.5-certified features make it easy to access, share and enjoy music and videos from any compatible media players. You can playback contents stored in the NSA210 through DLNA-capable digital media players, mobile phones, PDAs or game consoles. -
Eco-friendly scheduled power on/off saves energy
To save on electricity bills and better protect the environment, the NSA210 consumes less power without compromising performance. Compared to traditional NAS and storage servers, the NSA210 consumes 85% less power. Furthermore, the NSA210's eco-friendly scheduling function can automatically perform power management tasks according to specific date/time or idle period settings for better power efficiency. In other words, the NSA210 can automatically turn on or off based on your usage patterns and needs to conserve power and cost. -
Complete instant/scheduled backup solutions for data protection
The NSA210 provides a complete set of backup solutions for home and SOHO users. With the intelligent "Copy/Sync" button, the NSA210 makes it even easier to copy to or from external USB storage devices, card readers and digital cameras. -
S.M.A.R.T. for hard disk health monitoring
The Self-Monitoring Analysis and Reporting Technology (S.M.A.R.T.) provides comprehensive information regarding hard drive health status to prevent potential physical drive failures. The comprehensive log system summarizes detail data access records and connection status for administrators to analyze, while all errors and warning messages can also be sent via e-mail alerts for instant attention. -
Protect your data from potential crises
Important personal documents, photos and databases should be securely stored and transmitted without unauthorized access and loss in case of disk crash. The IP filter table management prevents the NSA210 from malicious attacks. IP filter policies can be created to allow, deny or auto-block IP addresses containing malicious programs or network domain attempting to connect to the NSA210. Moreover, with HTTPS and FTPES (FTP over explicit TLS/SSL) support, the NSA can be accessed under protection and encrypt the data in transmission.
Specifications
Summary
- Product Description

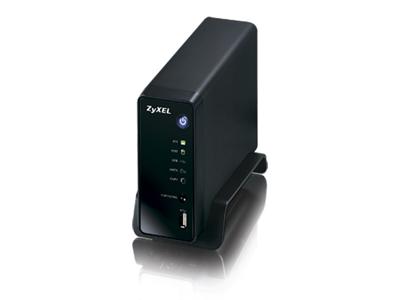

- Zyxel NSA-210 - NAS server
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet
- Max Supported Capacity
- 2 TB
- Installed Devices / Modules Qty
- 0 (installed) / 1 (max)
- Dimensions (WxDxH)
- 5.8 cm x 19.6 cm x 13 cm
- Weight
- 1.46 kg ()
- Storage Controller
- RAID SATA 3Gb/s RAID 1, JBOD
- Networking
- Network adapter 10Mb LAN, 100Mb LAN, GigE
- Power
- AC 120/230 V
- Storage Operating System
- Linux Kernel 2.6.24
- System Requirements
- Apple MacOS X, Microsoft Windows Server 2003, Microsoft Windows NT / 2000 / XP, Microsoft Windows Vista
- Environmental Standards
- ENERGY STAR Qualified
Detailed Specification
General
- Device Type
- NAS server
- Host Connectivity
- Gigabit Ethernet
- Max Supported Capacity
- 2 TB
- Installed Devices / Modules Qty
- 0 (installed) / 1 (max)
- Width
- 5.8 cm
- Depth
- 19.6 cm
- Height
- 13 cm
- Weight
- 1.46 kg ()
- Built-in Devices
- Led panel
Storage Controller
- Type
- RAID
- Interface Type
- SATA 3Gb/s
- Supported Devices
- Hard drive
- Max Storage Devices Qty
- 1
- RAID Level
- RAID 1, JBOD
Hard Drive
- Type
- HDD - 3.5"
- Compliant Standards
- S.M.A.R.T.
Networking
- Type
- Network adapter
- Data Link Protocol
- 10Mb LAN, 100Mb LAN, GigE
- Network / Transport Protocol
- TCP/IP, UDP/IP, NTP, PPPoE, SMB
- Remote Management Protocol
- HTTP
- Network Services Compatibility
- Microsoft CIFS, Network File System (NFS), FTP, HTTP, HTTPS
- Features
- DHCP support, Syslog support, dynamic DNS server, print server, IP address filtering, firmware upgradable, event log, iTunes server, Jumbo Frames support, Samba support, FTP server, BitTorrent Client
- Compliant Standards
- DLNA CERTIFIED, UPnP
Expansion / Connectivity
- Expansion Bays
- 1 (total) / 1 (free) x internal - 3.5"
- Interfaces
- 1 x Ethernet 1000Base-T - RJ-45 , 2 x USB 2.0 - Type A , 1 x eSATA
Miscellaneous
- Cables Included
- 1 x network cable
- Compliant Standards
- FCC Class B certified, C-Tick, BSMI, EMC
Environmental Standards
- ENERGY STAR Certified
- Yes
Power
- Power Device
- External power adapter
- Installed Qty
- 1
- Max Supported Qty
- 1
- Voltage Required
- AC 120/230 V
- Power Consumption Operational
- 26.4 Watt
Software / System Requirements
- Storage Operating System
- Linux Kernel 2.6.24
- Software Included
- Drivers & Utilities
- OS Required
- Apple MacOS X, Microsoft Windows Server 2003, Microsoft Windows NT / 2000 / XP, Microsoft Windows Vista
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 0 - 95%
- Sound Emission
- 23.5 dB
