Description

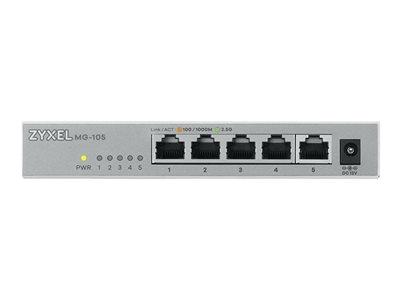

The Zyxel 2.5 Gigabit Switch MG-105 is the perfect candidates to upgrade your network speed and performance, bringing you up to 2.5 times faster experience than today's Gigabit network. Unlike traditional gigabit switches, the MG-105 supports 2.5G for all its Ethernet ports which can boost the entire network performance up to 2.5Gbps at once without compromising to limited high-speed port availability. Out-of-the-box network speed upgrade turns MG-105 into an optimal solution for home or small office users who needs more bandwidth for their network with demands coming from online gaming activities, multimedia streaming services or faster wireless network connectivity without the complex configuration.
-
Plug-n-Play, enjoy high speed network
Easily connect MG-105 to the latest 2.5G-capable network devices such as 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, Wi-Fi 6 AP, 4K video, desktop, and more and more to instantly enjoy high performance networking and smoother home entertainment experience with its simplified plug-and-play technology. -
Use your existing cables
The Multi-Gigabit RJ-45 ports not only provide more speed options for your network, but it can increase your home networking speed from current 1Gbps to 2.5Gbps without additional cabling fee! -
Fanless design for true silent operation
MG-105 is built with fanless and sturdy hardware design to ensure all-time silent and stable operation. It's perfect for every home or business environment.
Specifications
Summary
- Product Description
- Zyxel MG-105 - switch - 5 ports - unmanaged
- Device Type
- Switch - 5 ports - unmanaged
- Subtype
- 2.5 Gigabit Ethernet
- Ports
- 5 x 100/1000/2.5G Base-T
- Performance
- Switching capacity: 25 Gbps , Forwarding performance: 18.6 Mpps
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 12KB
- Features
- Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), wall mountable, QoS, fanless, 12MB packet buffer
- Compliant Standards
- IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz
- Power
- AC 100-240 V (50/60 Hz)
- Dimensions (WxDxH)
- 16 cm x 11 cm x 2.6 cm
- Weight
- 460 g
Detailed Specification
General
- Device Type
- Switch - 5 ports - unmanaged
- Enclosure Type
- Desktop
- Subtype
- 2.5 Gigabit Ethernet
- Ports
- 5 x 100/1000/2.5G Base-T
- Performance
- Switching capacity: 25 Gbps , Forwarding performance: 18.6 Mpps
- MAC Address Table Size
- 16K entries
- Jumbo Frame Support
- 12KB
- Features
- Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), wall mountable, QoS, fanless, 12MB packet buffer
- Compliant Standards
- IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz
- Built-in Devices
- Led panel
- Status Indicators
- Port transmission speed, power, link/activity
Expansion / Connectivity
- Interfaces
- 5 x 100/1000/2.5G RJ-45
Power
- Power Device
- External power adapter
- Voltage Required
- AC 100-240 V (50/60 Hz)
Miscellaneous
- Compliant Standards
- Plug and Play, FCC, BSMI Class B, EAC
Dimensions & Weight
- Width
- 16 cm
- Depth
- 11 cm
- Height
- 2.6 cm
- Weight
- 460 g
Dimensions & Weight (Shipping)
- Shipping Width
- 21.5 cm
- Shipping Depth
- 13.3 cm
- Shipping Height
- 7.9 cm
- Shipping Weight
- 919.6 g
Environmental Parameters
- Min Operating Temperature
- 0 °C
- Max Operating Temperature
- 40 °C
- Humidity Range Operating
- 10 - 90% (non-condensing)
- Min Storage Temperature
- -40 °C
- Max Storage Temperature
- 70 °C
- Humidity Range Storage
- 5 - 95% (non-condensing)
