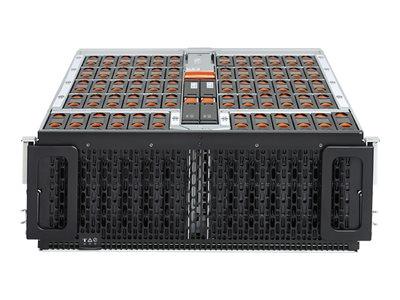

WD Ultrastar Data60 288TB SAS (24 x 12TB He12) 24 Bay Rack NAS

WD Ultrastar Data60 288TB SAS (24 x 12TB He12) 24 Bay Rack NAS

Review this product
Quicklinx: DXJKWS00 Mfr#: 1ES0392
Type: Storage enclosure
Controller Type: None
Ordered upon request
£10,140.18 ex VAT
£12,168.21 inc VAT
Qty
Standard delivery Product out of stock. Due date unavailable.

Description

The Ultrastar Data60 is a key element of next-generation disaggregated storage and software-defined storage (SDS) systems, delivering high density and the flexibility to balance performance with cost. Conventional dense disk shelves frequently suffer from performance degradation due to induced vibration from adjacent drives. Traditional platforms also have cooling challenges as the cooling air passes over successive rows of drives, losing effectiveness as it gets heated up along the airflow path.

  • High density

    Up to 720TB raw capacity in a 4U enclosure.
  • Flexible

    Choice of SAS or SATA with option for a flash data acceleration tier.
  • Innovative

    IsoVibe and ArcticFlow for improved performance, cooling, and TCO.

Specifications

Summary

Product Description
WD Ultrastar Data60 SE-4U60-12P04 - storage enclosure
Device Type
Storage enclosure
Enclosure Type
Rack-mountable - 4U
Total Array Capacity
288 TB
Max Supported Capacity
720 TB
Installed Devices / Modules Qty
24 (installed) / 60 (max)
Supported Drives
SATA-600 / SAS-3
Hard Drive
24 x 12 TB HDD SATA 6Gb/s - hot-swap - Instant Secure Erase (ISE), 512e Crypto
Power
AC 230V - 50/60 Hz
Power Redundancy
Yes
Dimensions (WxDxH)
44.7 cm x 71.2 cm x 17.5 cm
Manufacturer Warranty
5-year warranty


Detailed Specification

General

Device Type
Storage enclosure
Enclosure Type
Rack-mountable - 4U

Chassis

Installed Devices / Modules Qty
24
Supported Devices / Modules Qty
60
Supported Drives
SATA-600 / SAS-3

Storage

Total Array Capacity
288 TB
Max Supported Capacity
720 TB

Hard Drive

Type
HDD - hot-swap
Capacity
24 x 12 TB
Interface Type
SATA 6Gb/s
Features
Instant Secure Erase (ISE), 512e Crypto

Expansion / Connectivity

Expansion Bays
60 (total) / 36 (free) x hot-swap - 3.5"
Interfaces
12 x SAS 12Gb/s - Mini SAS HD (SFF-8643)

Miscellaneous

Features
SCSI Enclosure Services 3 (SES3)

Power

Power Device
2 x internal power supply - hot-plug
Power Redundancy
Yes
Power Redundancy Scheme
1+1
Voltage Required
AC 230V - 50/60 Hz
Power Provided
1600 Watt
80 PLUS Certification
80 PLUS Platinum

Dimensions & Weight

Width
44.7 cm
Depth
71.2 cm
Height
17.5 cm

Manufacturer Warranty

Service & Support
Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 85% (non-condensing)
Sound Emission
72 dBA
